01 ENGINE
Z001019/0_6_July 2008 Page ENGINE - 17
SERVICE MANUAL MARINE ENGINES

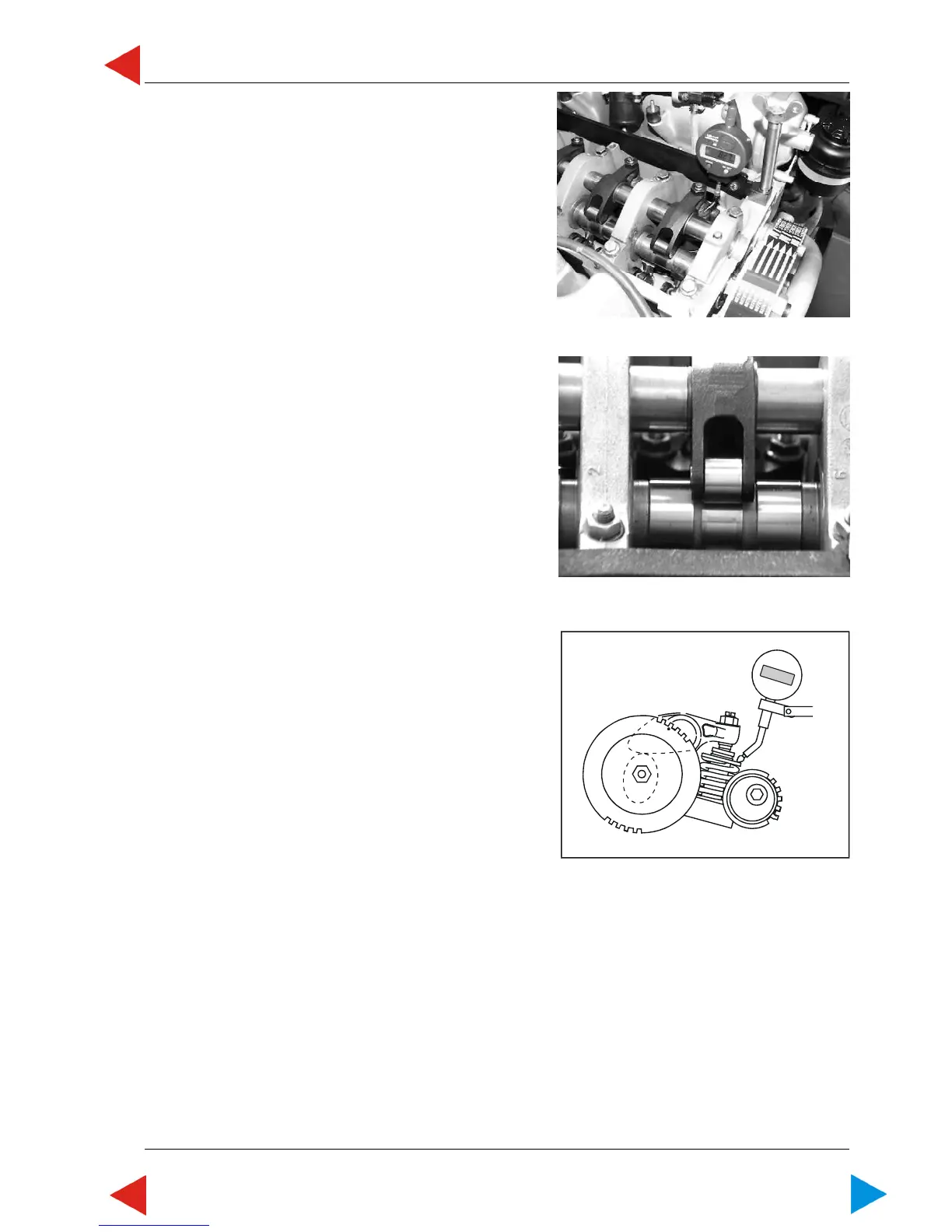

1 Mount dial gauge rail with brackets 2306031/. (see
list special tool) on studs at intake side of camshaft
housing.
2 Insert dial gauge 2300731/0 with probe pin
2300641/1 in dial gauge rail and put probe pin onto
unit injector-plunger guide cylinder 1.
3 Turn camshaft until the roller of rocker arm is located
on base circle of injection cam.
4 Pre-set dial gauge to position 20 mm stroke (small
pointer at 20 - inside scale, big pointer at 0 - outside
scale).
5 Slowly turn camshaft in direction of rotation until dial
gauge shows a stroke of 2 mm (injection stroke at
unit injector).
00.05 ill.5
00.05 ill.4
