Z001019/0_6_July 2008
Page ENGINE - 27
01 ENGINE
SERVICE MANUAL MARINE ENGINES

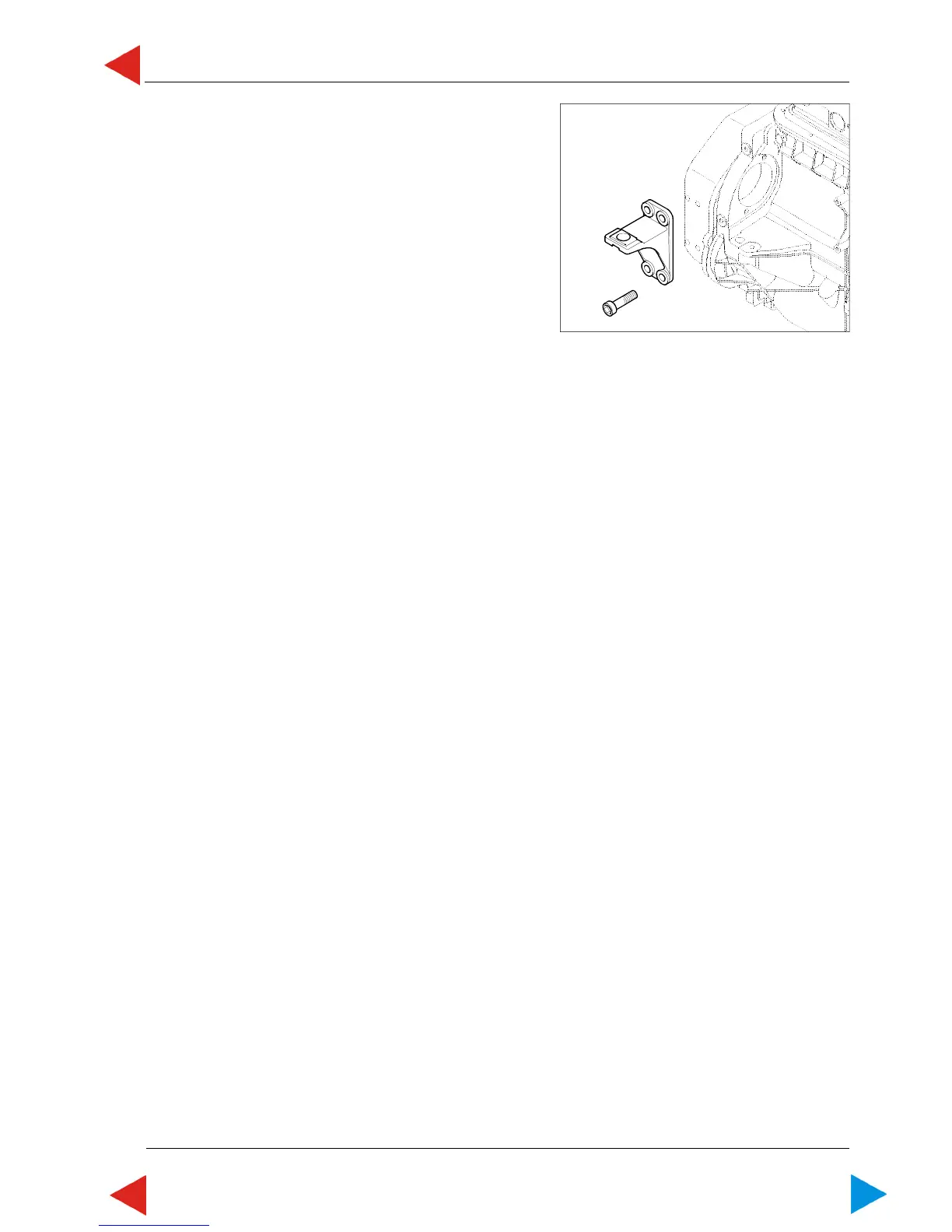

00.06 ill.5
Exchange bracket on flywheel housing
1
Loosen 4 allen head screws (S
W10)
and remove support.
NOTE:
During assembly, secure allen head
screws with
LOCTITE 243
(9000059/1) and tighten with a
trorque of
75 +/- 5 Nm.
