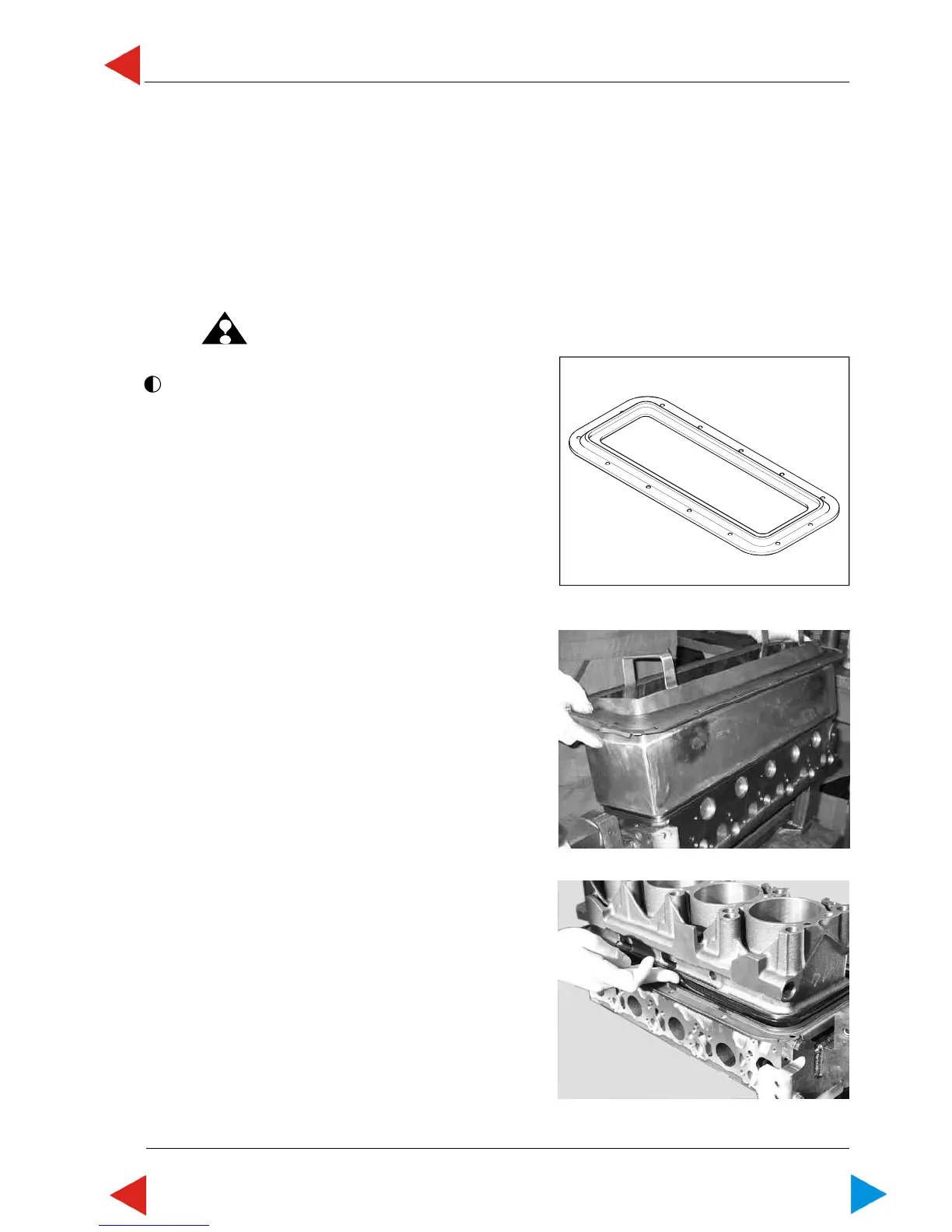

Z001019/0_6_July 2008 Page ENGINE - 37
01 ENGINE
SERVICE MANUAL MARINE ENGINES
6 Press frame seal into cylinder block groove, beginning
at the cylinder block corner and then along side of the
block.
NOTE: Only press in the rubber of the frame
seal by hand. Do not stretch or displace.
7 Pay attention do least curing time and curing
temperature. Also see manufacturer's specifications.
ATTENTION:Pay attention to safety notes/rules.
01.10 ill.6
01.10 ill.7
01.10 ill.5
For engines with frame seal with alu support
(screwed variant) - (item 8-9)
Special tool 4 cyl. V000307/0
6 cyl. V000306/0
Installation device
8 Slide frame seal using special tool into block-groove.
NOTE: For easier installation of frame seal apply
alcohol on sealing profil. The alcohol will
serve as a lubrication agent during
installation process.
9 Clean of the frame seal lip and the block slot using
Acetone or a non oil based cleaner (pure alcohol) and
give time for this dry before continuing.
Place Loctite activator #7649 (see below) on the
upper edge of the frame seal lip and in the slot of the
block.
After waiting 2 minutes for Activator to work, apply
Loctite 620 (green) on the upper edge of the frame
seal lip
10 Press frame seal into cylinder block groove, beginning
at the cylinder block corner and then along side of the
block.
NOTE: Only press in the rubber of the frame
seal by hand. Do not stretch or displace.
11 Secure the frame seal to the housing using the
screws and Loctite 243 (blue), tighten to 10 Nm.
