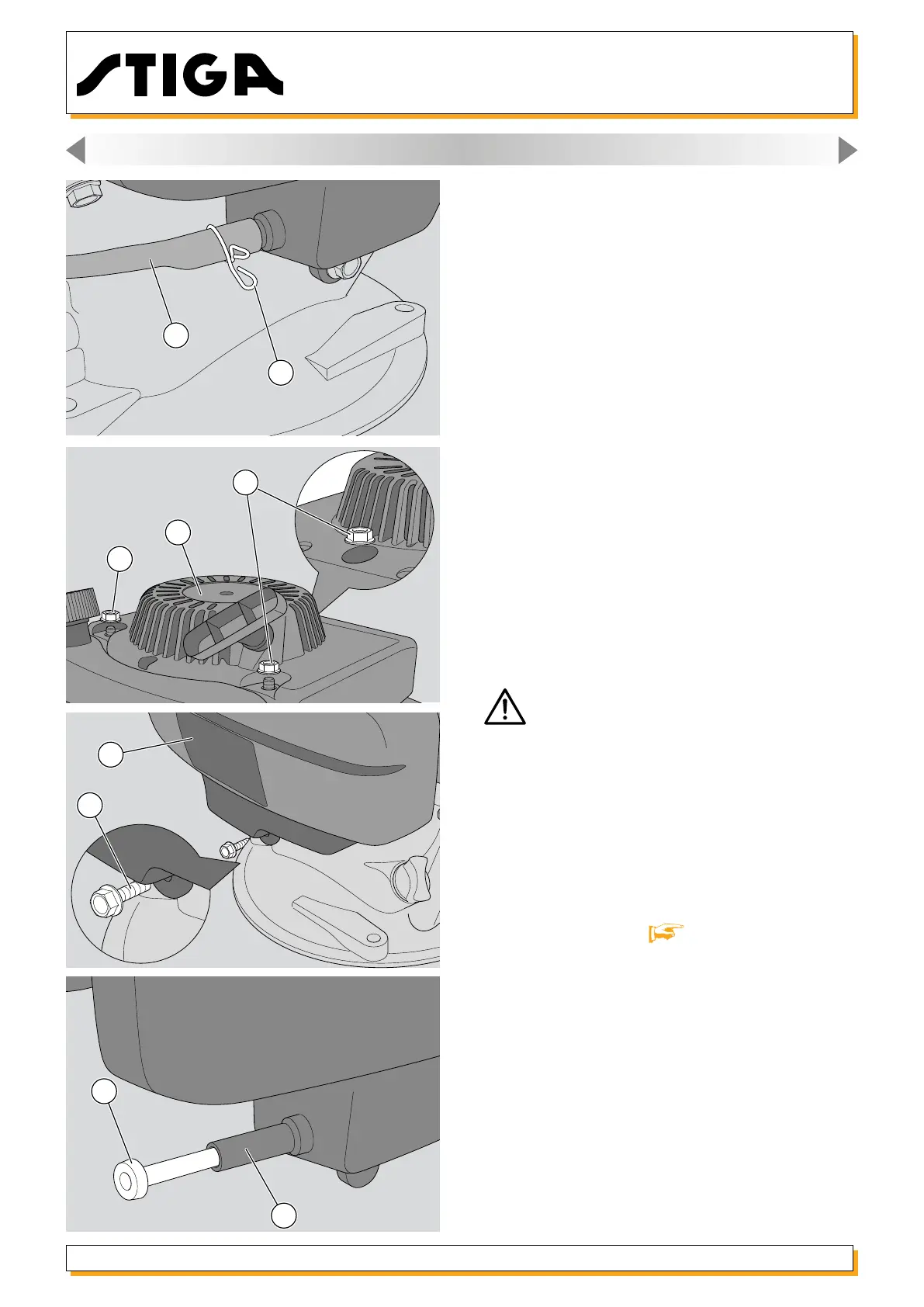

5.1. Emptying and removing the tank
1 - Remove the ring (1) of the petrol pipe (2) from
the tank side and drain all the fuel from the tank
and the pipe into a suitable container.
2 - Remove the starter assembly (3) by loosening
the three nuts (4).
3 - Loosen the rear screw (5) and remove the tank
(6).
4 - When tting, perform the above operations in
reverse.
WARNING:Beforerellingthetankwithnew
fuel, check that the petrol pipe is intact.
5.2. Cleaning the tank
1 - Remove the tank [
5.1].
2 - Remove the clamp (1) from the side of the tank
and disconnect the petrol pipe (2).
3 - Slide out the lter tube (7) and blow compressed
air through it so as to remove any deposits inside.
4 - Keeping the hole (8) in the spigot closed, pour
about 100 cc of clean petrol into the tank and
shake it vigorously to clean the inside.
5. TANK AND SUPPLY
6
5
7
8
1
2
3
4
4
