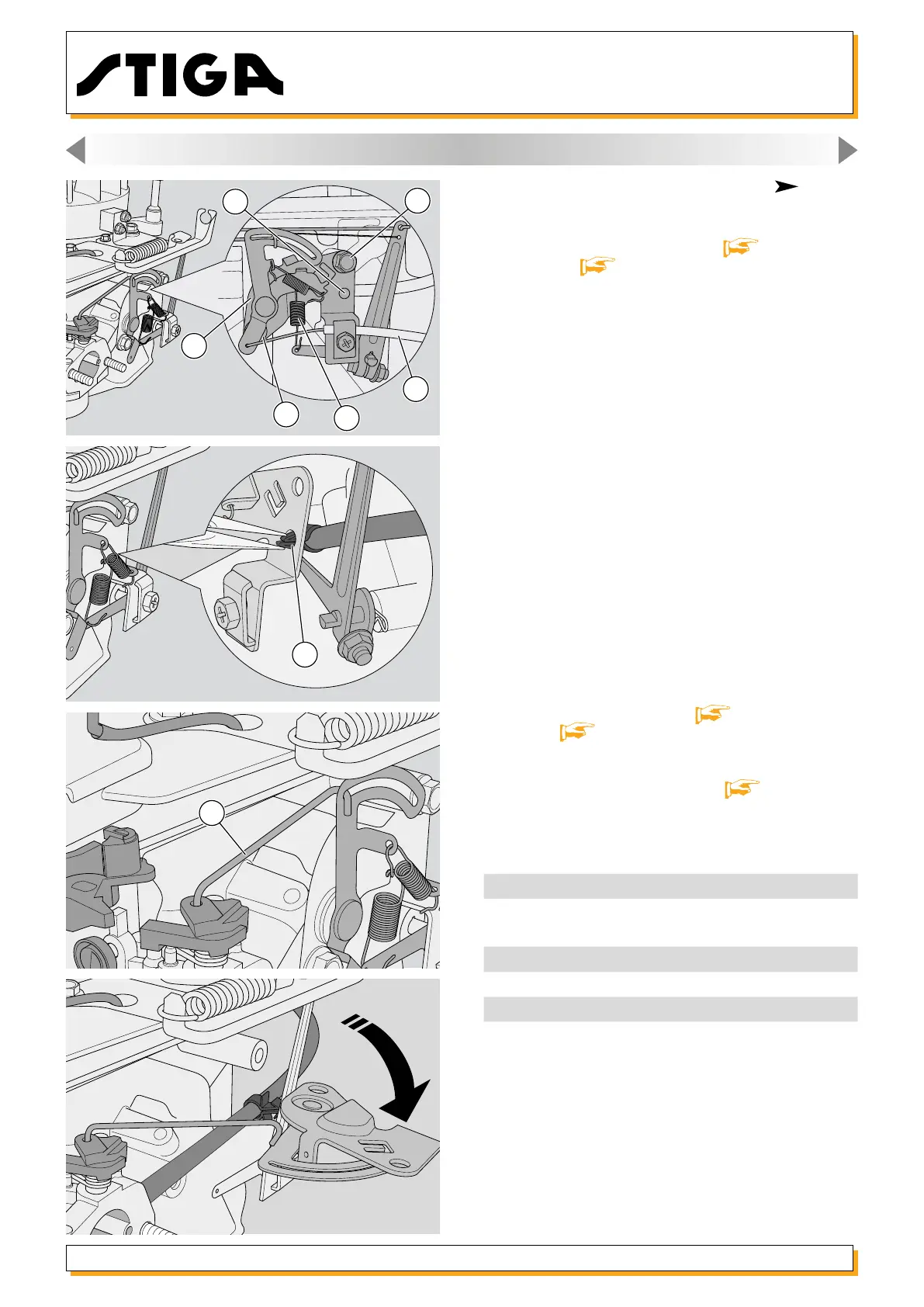

10. GOVERNOR SYSTEM OF THE CARBURETTOR
10.3. Replacing the lever support ( model
RSC100)
1 - Remove the lter element [
7.1] and the
lter holder [ 8.1].
2 - Position the choke lever to minimum (“SLOW”
position).
3 - Disconnect the accelerator cable (3) and the
spring (8).
4 - Loosen the two screws (15) securing the support
(16) to the engine and the clip (17) securing the
petrol pipe.
5 - Turn the lever support and remove the tie-rod
(18) on the starter throttle lever (CHOKE).
6 - Perform the above operations in reverse order
when assembling.
7 - Replace the lter holder [ 8.1] and the lter
element [ 7.1].
8 - Adjust the maximum speed [ 10.2].
Tightening torques
15
Support screw, governor
assembly
8-12 Nm
Technical information
Maximum speed (FAST)
2900 (±100) g/1’
Special equipment
6 Speed indicator
8
16
15
3
15
17
17
18
