12. TURNING OFF AND STOPPING THE ENGINE
12.1. Checking the control cable
1 - Remove the starter assembly [
6.1].
2 - Remove the lter assembly [ 8.1] mod.
RSC100 (or [ 9.1] mod. RS100).

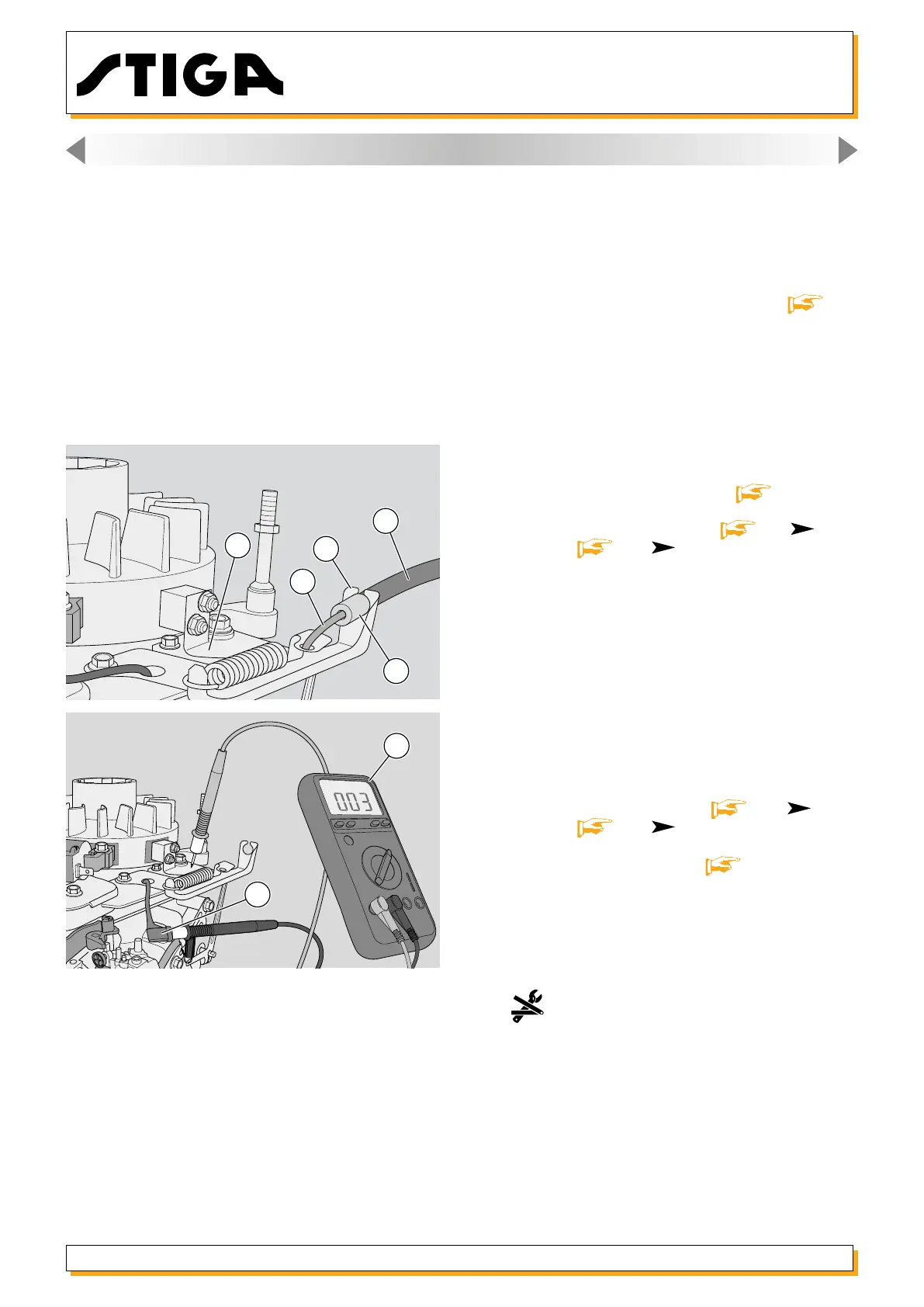

3 - Check that the sheath (1) is not bent, that the
wire (2) is securely connected to both the lawn-
mower lever and the lever (3) on the engine and
that the terminal (4) is correctly fastened to the
support (5).
4 - Check that the wire (2) runs freely inside the
sheath (1) when you move the lever.
5 - Check that the end of the wire (2) is slightly loose
when you release the lawnmower lever.
6 - Ret the lter assembly [ 8.1] mod.
RSC100 (or [ 9.1] mod. RS100).
7 - Ret the starter assembly [ 6.1].
12.2. Checking the system for turning off the engine
1 - Disconnect the coil Faston connector (6).
2 -
Using a multimeter (7) as an ohmmeter,
make contact with the leads on the points indica-
ted in the gure.
The instrument should read:
- ∞ = microswitch pressed (lever pulled);
- 0 = microswitch free (lever released);
Otherwise, replace the system for turning off and
stopping the engine.
General information
The engine is turned off and stopped by releasing a lever on the lawnmower. The cable acts on a lever
which simultaneously activates a microswitch that sends the coil to earth as well as a brake which acts on
the ywheel.
The brake must be able to stop the engine within 3 seconds after it is turned off.
To solve problems in the system for turning off and stopping the engine, see the relevant chapter [
16].
To get access to the system for turning off and stopping the engine, remove the starter assembly.
