Stiga RS100 - Dismantling and Replacing the Fan

page 46
Release 00 - 03/2018
Engine RS100 - RSC100
Service manual
14. ENGINE BLOCK - External operations
13

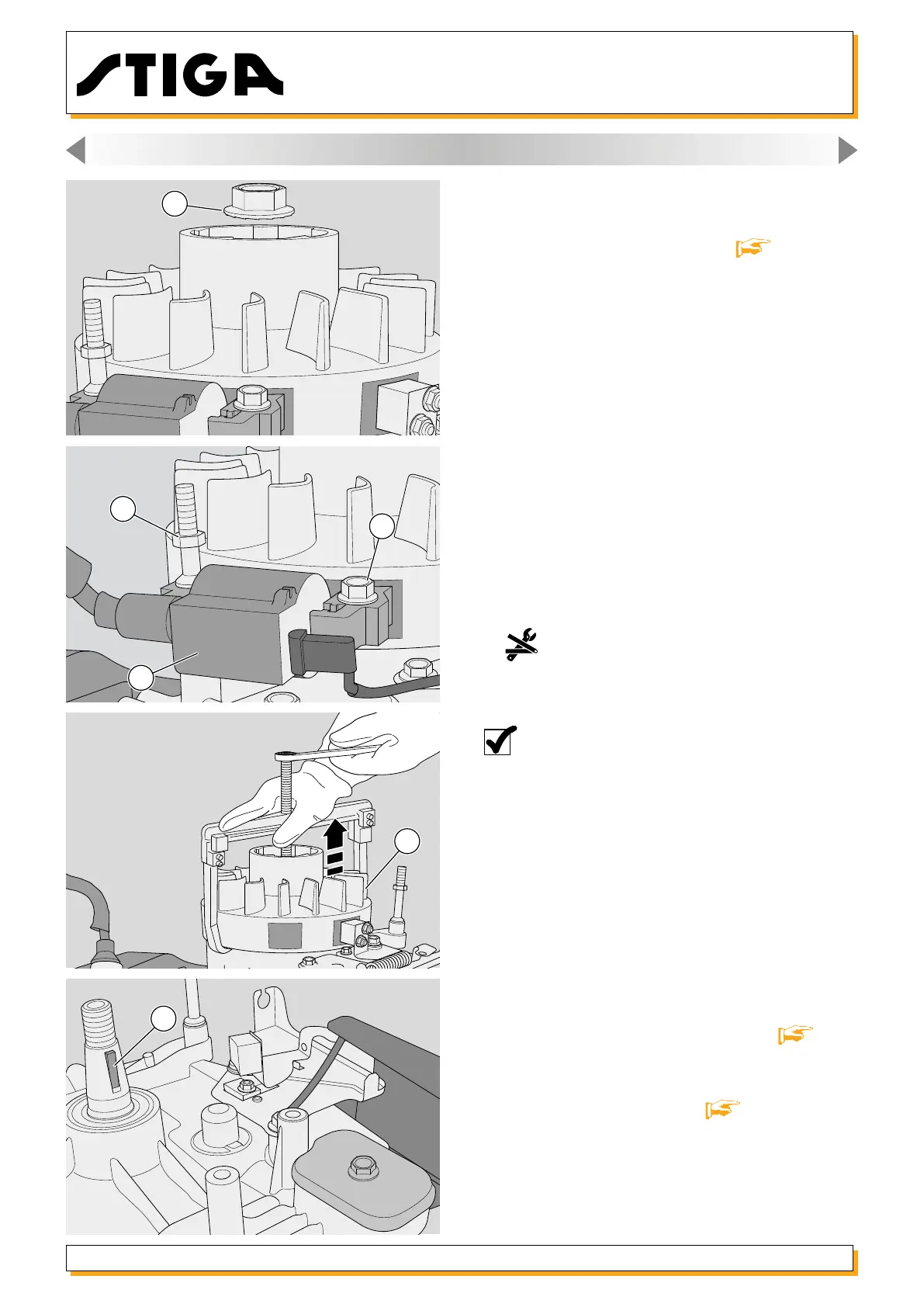

14.3. Dismantling and replacing the complete
fan
1 - Remove the starter assembly [
6.1].
2 - Operate the exhaust brake.
3 - Using an airgun, undo the nut (13).
4 - Undo the screw (14) and the stud (15) and re-
move the electronic coil (16).
5 -
Using a suitable extraction tool, remove the
complete fan (17) as indicated in the diagram.
Ensure that the engine shaft key is retained.
 NOTE:Ifitisdifculttodisassemblethefan,
use a hammer and hit the extractor screw.
6 - When tting the complete fan check that the key
(18) is in good condition and replace it, if deformed.
Close the nut (13) to the indicated couple.
7 - Ret the coil (14), tightening the screw (15) and
the stud (16) to the torque indicated.
8 -
Readjust the airgap until it is correct [ 11.2].
9 - Ret the starter assembly [ 6.1].
17
15
14
16
18
