Stiga RS100 - Replacing the Ignition Coil

Release 00 - 03/2018
Engine RS100 - RSC100
page 39
Service manual
7 - Perform a spark test as indicated in [ 11.1].
- If the spark jumps: the coil functions properly and
in the event of malfunction, verify that the cut-off
cable (13) is not earthed.
- if the spark does not jump: the coil is faulty and
must be replaced [ 11.3].
8 - Ret the starter assembly [ 6.1].

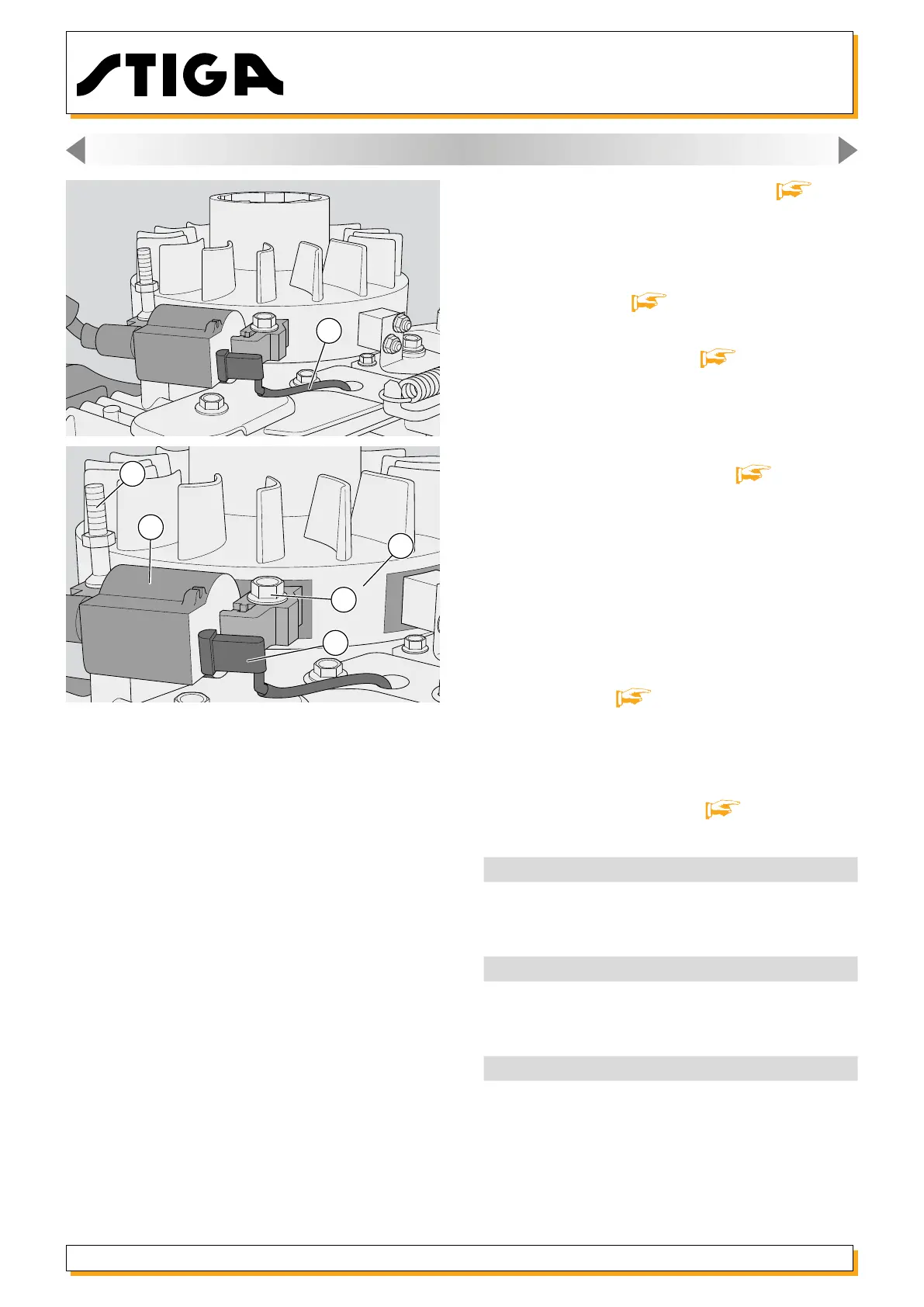

11.3. Replacing the coil
1 - Remove the starter assembly [
6.1].
2 - Disconnect the faston of the earth cable (6).
3 - Undo the screw (9) and the stud (10) and remove
the coil (7).
4 - Mount the new coil and regulate the air gap
according to the procedure indicated in points 4
and 5 in section [ 11.2].
5 - Connect the faston of the earth cable (6).
6 - Ret the starter assembly [ 6.1].
Tightening torques
1 Spark plug tightening torque 16-20 Nm
9 Coil xing screw 8-12 Nm
10 Coil xing stud 8-12 Nm
Technical information
Type of spark plug GGP K7 RTC
Distance between electrodes 0,6-0,8 mm
Air gap/fan 0,35-0,45 mm
Special equipment
3 Tester for spark test
