Stiga RS100 - Checking the Brake Mechanism

Release 00 - 03/2018
Engine RS100 - RSC100
page 41
Service manual
12. TURNING OFF AND STOPPING THE ENGINE

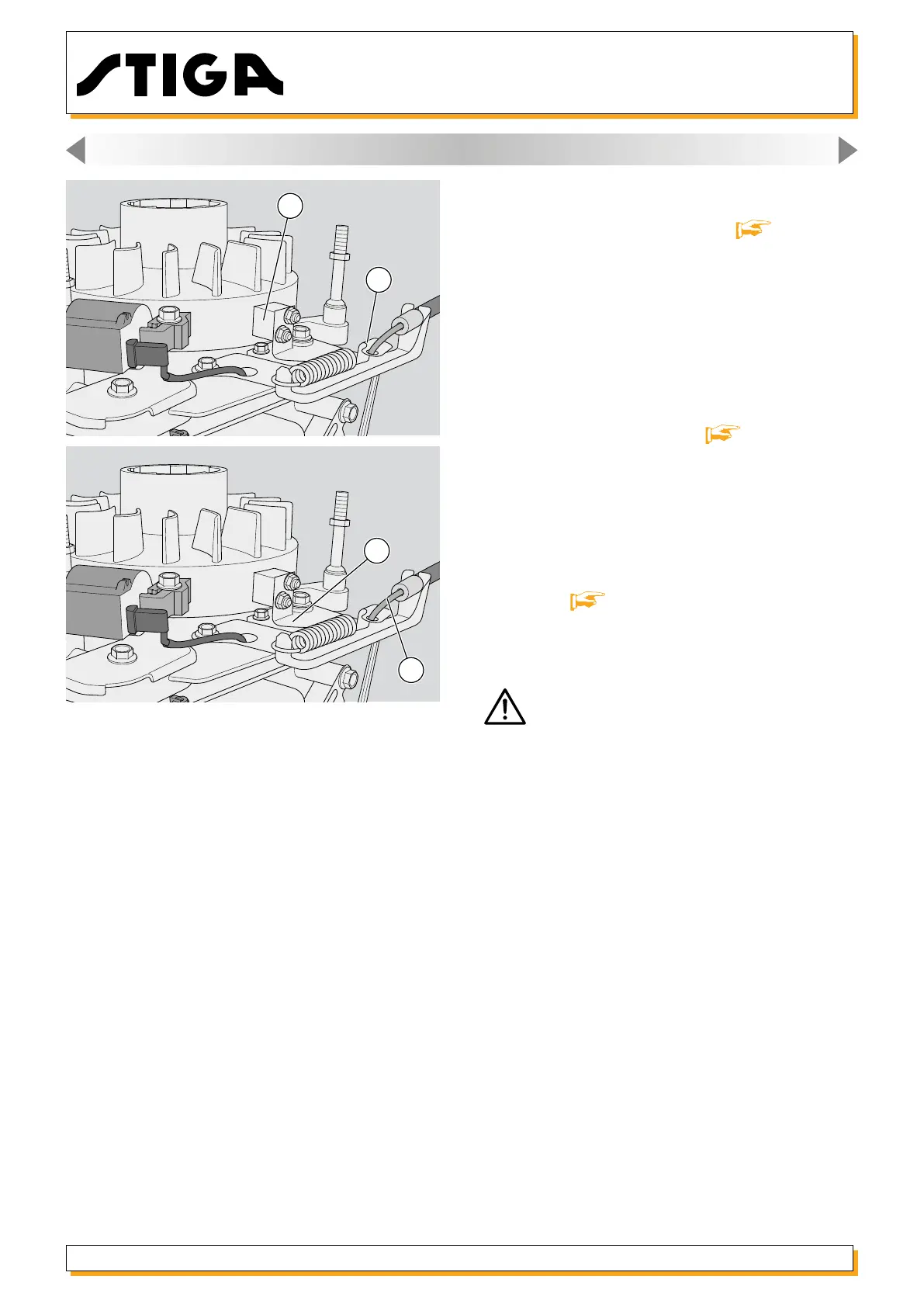

12.3. Checking the brake
1 - Remove the starter assembly [
6.1].
2 - Check that the thickness of the friction pad (8)
is not less than 2 mm at its thinnest point.
3 - Make sure that the control lever (5) moves freely
and remove any remains of grass and mud.
4 - Ret the starter assembly [ 6.1].
5 - Start the engine, release the lawnmower lever
and check that the engine stops within 3 secon-
ds.
6 - If it stops after 3 seconds, replace the entire
assembly [ 12.4], because the spring or the
friction pad are not capable of ensuring complian-
ce with braking times.
WARNING! Never return the lawnmower to
yourclientwithoutcheckingbrakeefcien-
cy.
8
5
2
3
