Stiga RS100 - Replacing the Engine Stop System

page 42
Release 00 - 03/2018
Engine RS100 - RSC100
Service manual
9
6

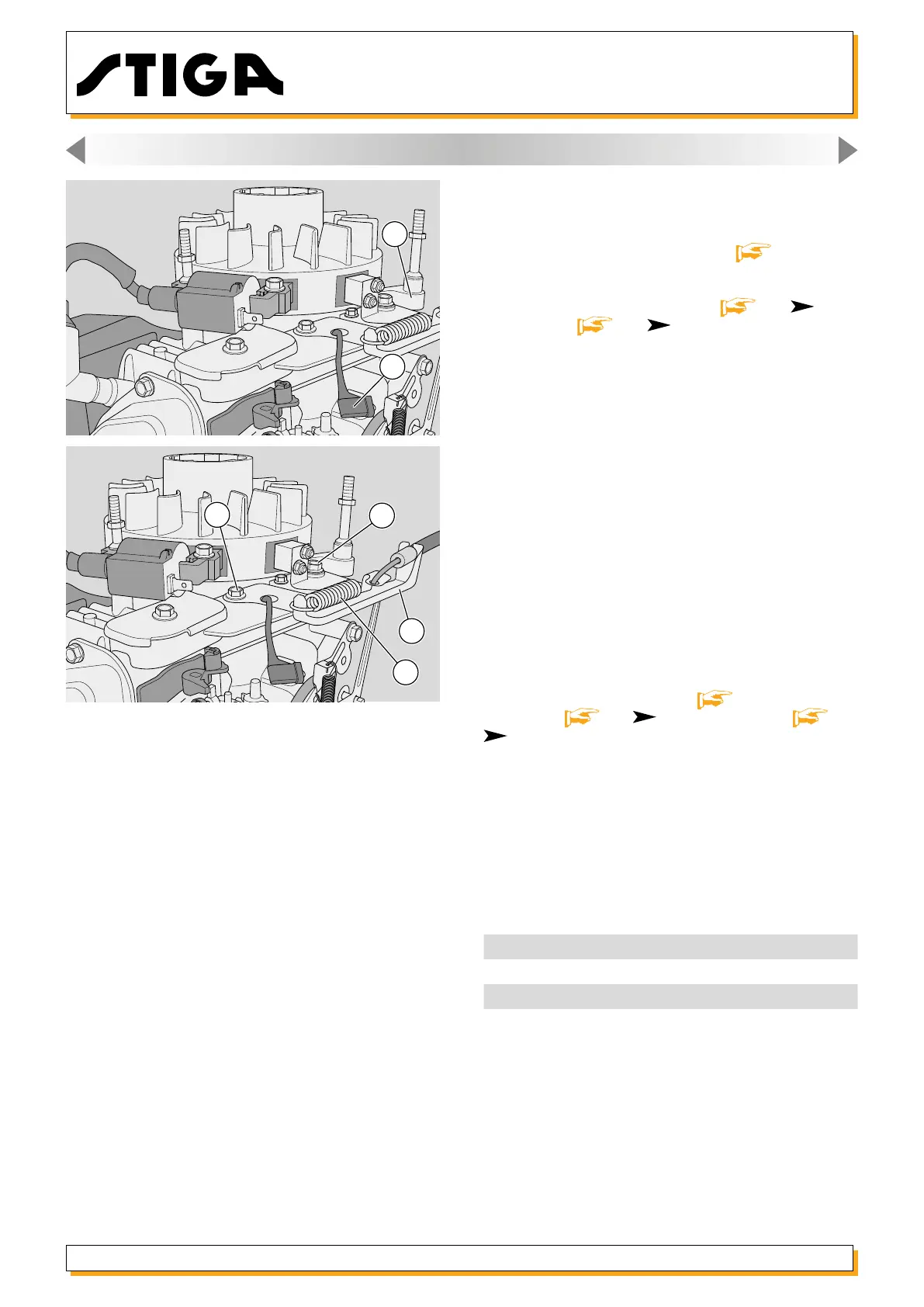

12.4. Replacing the system for turning off and stop-
ping the engine
1 - Remove the starter assembly [
6.1].
2 - Remove the lter assembly [ 8.1] mod.
RSC100 (or [ 9.1] mod. RS100).
3 - Disconnect the brake wire (2) from the lever
(3).
4 - Disconnect the earth cable Faston connector
(9).
5 - Loosen the two screws (10) and the spring (11).
Remove the support bracket (5).
6 - When tting, perform the above operations in
reverse, tightening the screws (10) to the torque
indicated.
7 - Ret the starter assembly [ 6.1] and the lter
assembly [ 8.1] mod. RSC100 (or [ 9.1]
mod. RS100).
8 - Start the engine, release the lawnmower lever
and check that the engine stops within 3 secon-
ds.
Tightening torques
10 Brake support screws 8-12 Nm
Special equipment
7 Universal tester
12. TURNING OFF AND STOPPING THE ENGINE
10
10
5
11
