Stiga RS100 - Replacing the Lever Support (RS100)

page 36
Release 00 - 03/2018
Engine RS100 - RSC100
Service manual
10. GOVERNOR SYSTEM OF THE CARBURETTOR

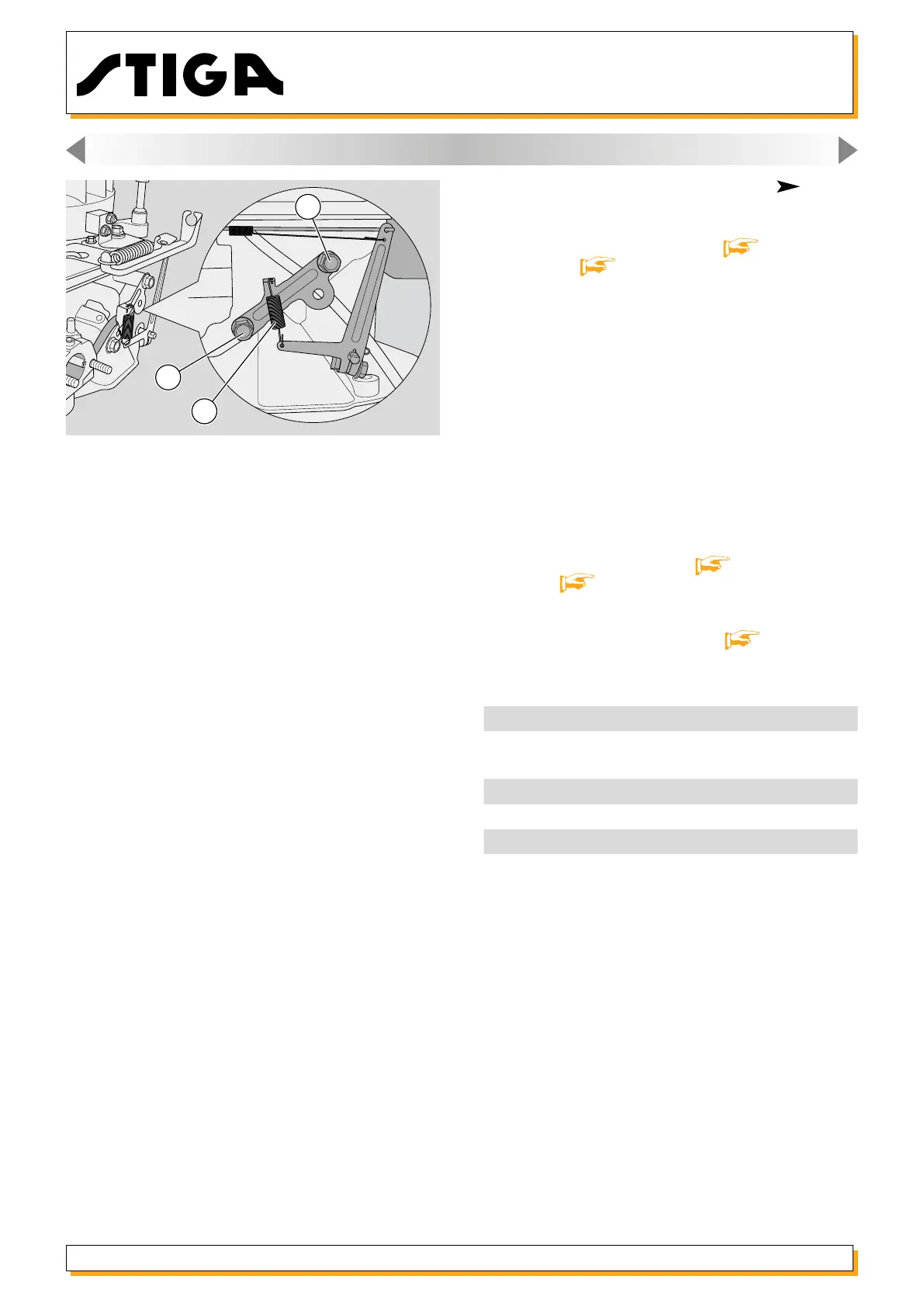

10.3a. Replacing the lever support ( model
RS100)
1 - Remove the lter element [
7.1] and the
lter holder [ 9.1].
2 - Disconnect the spring (7).
3 - Remove the two screws (13) and replace the
lever support.
4 - Perform the above operations in reverse order
when assembling.
7 - Replace the lter holder [ 9.1] and the lter
element [ 7.1].
8 - Adjust the maximum speed [ 10.2a].
Tightening torques
13
Support screw, governor
assembly
8-12 Nm
Technical information
Maximum speed
2800 (±100) g/1’
Special equipment
5 Speed indicator
7
13
13
