5. TANK AND SUPPLY
5 - Empty the tank and dispose of the petrol used
for cleaning in accordance with the laws in force.
6 - Ret the tank [ 5.1] tightening the screws
(5) to the torques indicated.
7 - Replace the starter assembly by securing the
nuts (4) at the specied torque.
WARNING: Beforerellingthetankwithnew
fuel, check that the petrol pipe is intact.

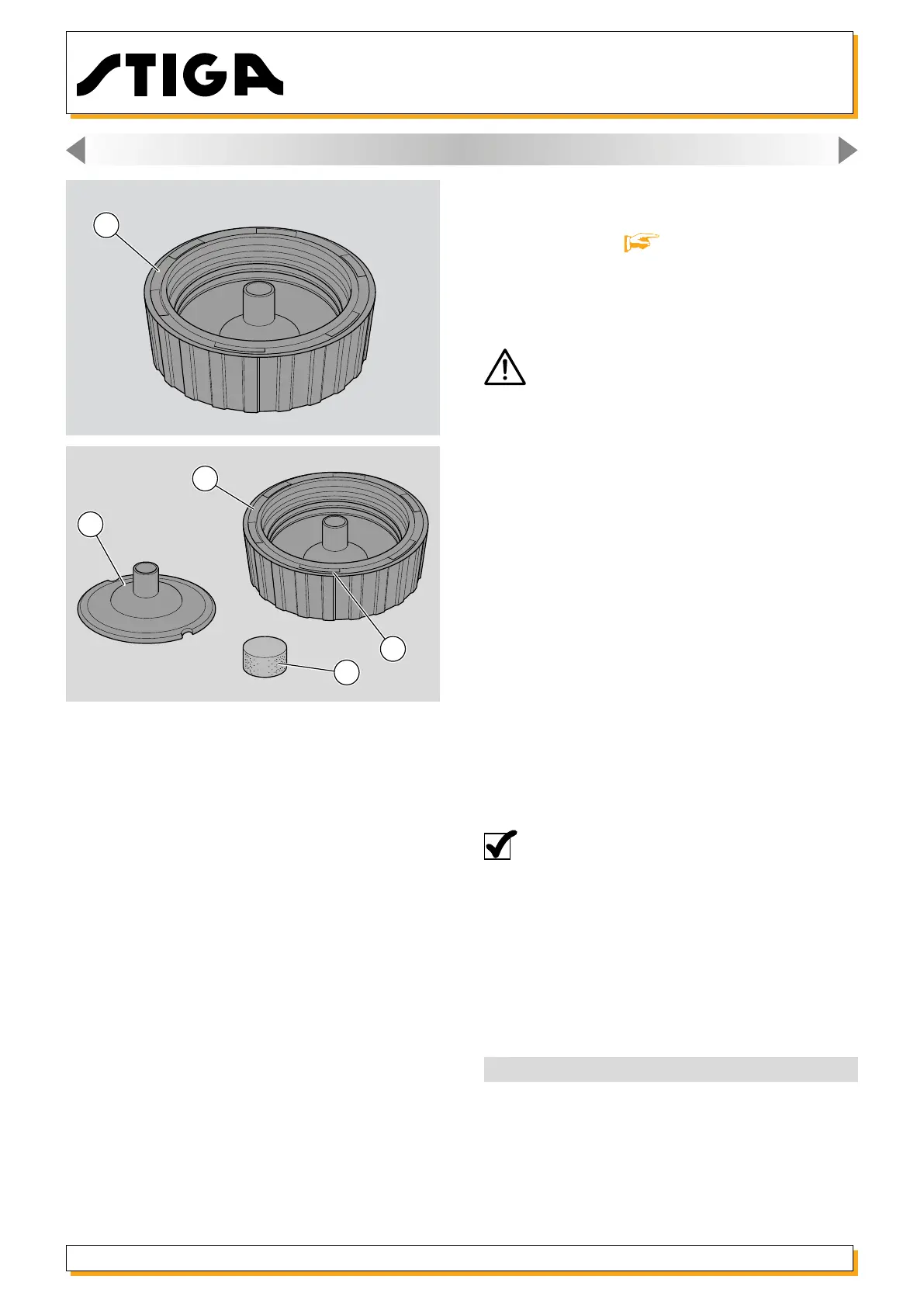

5.3. Checking and cleaning the breather pipe
1 - Remove the cap (9) and pull out the gasket (10)
and the sponge (11).
2 - Check that:
- the gasket (10) is intact and without cracks or
ssures;
- the air passages (12) inside the cap are not clog-
ged;
- the sponge (11) is not crushed or broken.
NOTE: Always replace the entire cap if the
gasket or sponge is damaged.
Tightening torques
4 Assembly xing nut 8-10 Nm
5 Tank xing screw 8-10 Nm
9
9
10
11
12
