Release 00 - 03/2018
Engine RS100 - RSC100
page 21
Service manual

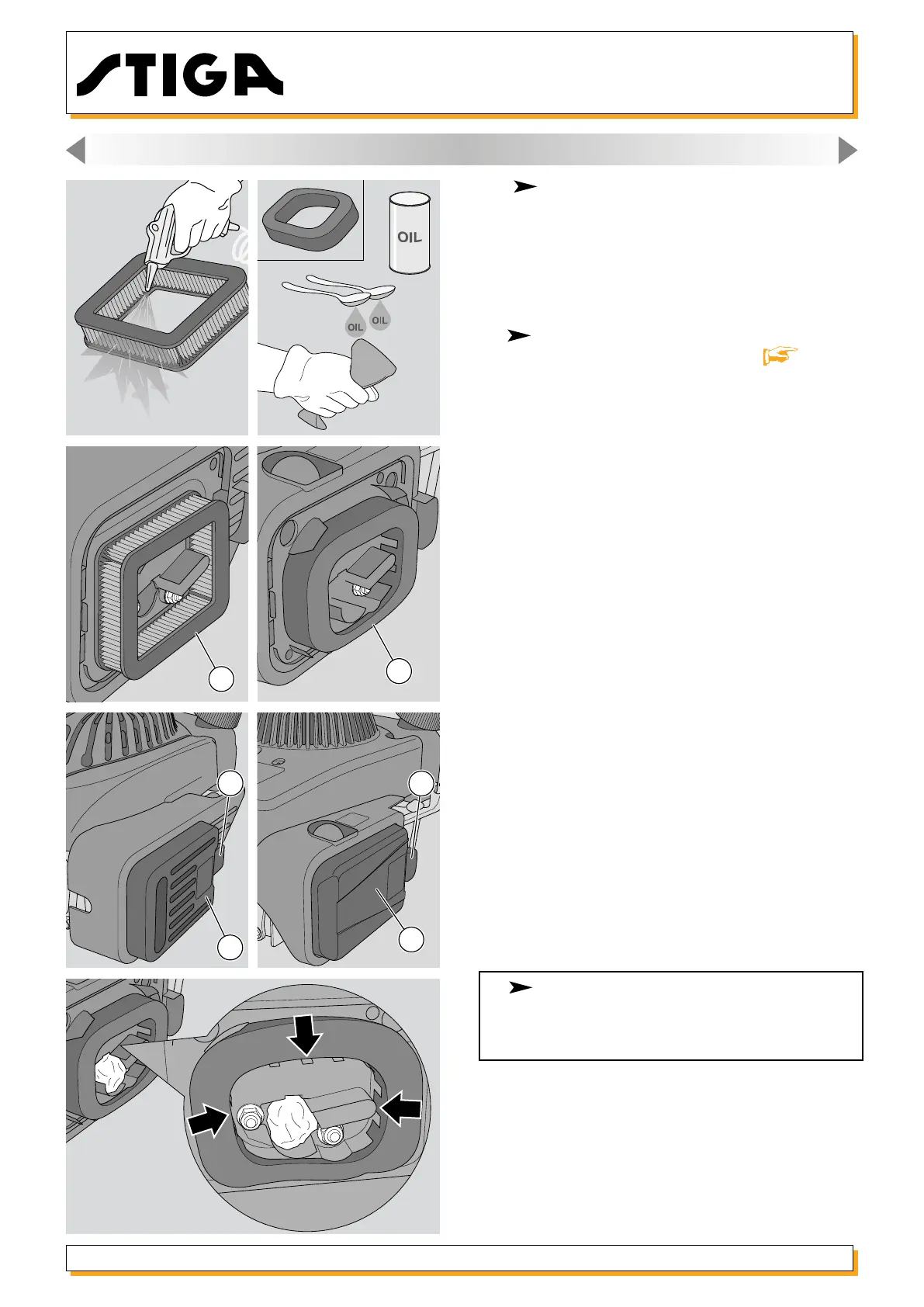

7. INTAKE SYSTEM
3
3
5 -
Cartridgelterelement: Bang the air lter
element on a hard surface so as to remove excess
dirt, and blow it through with compressed air, ou-
twards from the inside.
Replace the element if it is too dirty.
6 - Spongelterelement: Perform the mainte-
nance referred to in the paragraph [ 7.1a].
7 - Ret the element (3) and the cover (1) into their
housings, into its housing, paying attention to hook
up the clips correctly (2).
8 - model RS100 During the installation of the
sponge lter element, make sure it is properly posi-
tioned between the tabs, as shown in the gure.
