Stiga RS100 - Page 24

page 24
Release 00 - 03/2018
Engine RS100 - RSC100
Service manual
8. CARBURATION ( valid for RSC100 model)
13
14
15
12
9

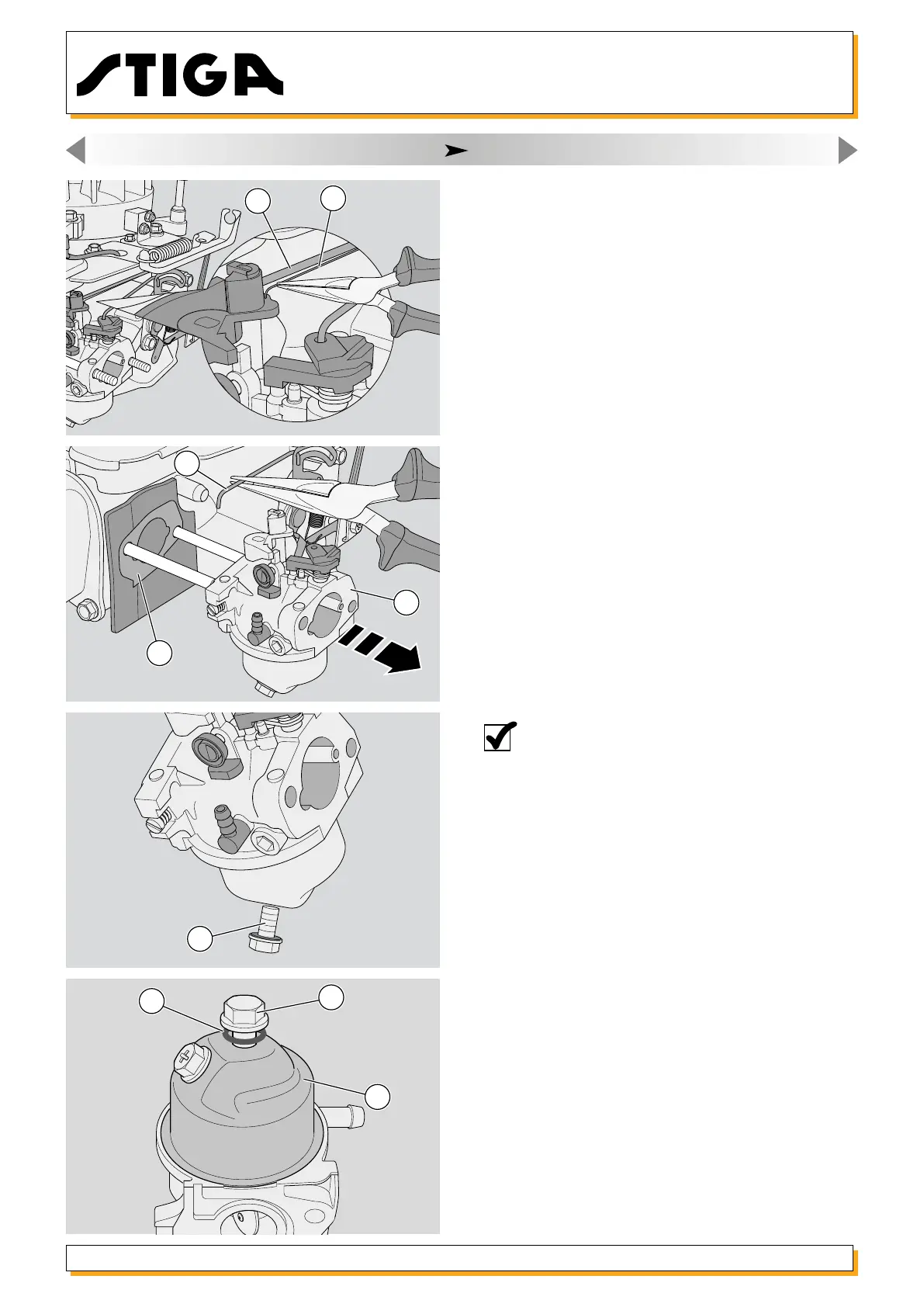

5 - Using pliers, disconnect the intake buttery rod
(7) and slide the small rod (8) for the relative com-
pensation spring upwards.
6 - Disconnect the wire (9) from the choke buttery
lever, completely remove the carburettor (10) for
the relative compensation spring upwards (11).
NOTE: Empty any remaining petrol from the
tank by removing the drain screw (12) as
showninthegure.Whennished,replace
the screw.
7 - Unscrew the central screw (13) securing the tank
(14) and remove the corresponding OR (15).
7
8
11
10
