Engine RS100 - RSC100
Service manual
9. CARBURATION ( valid for RS100 model)

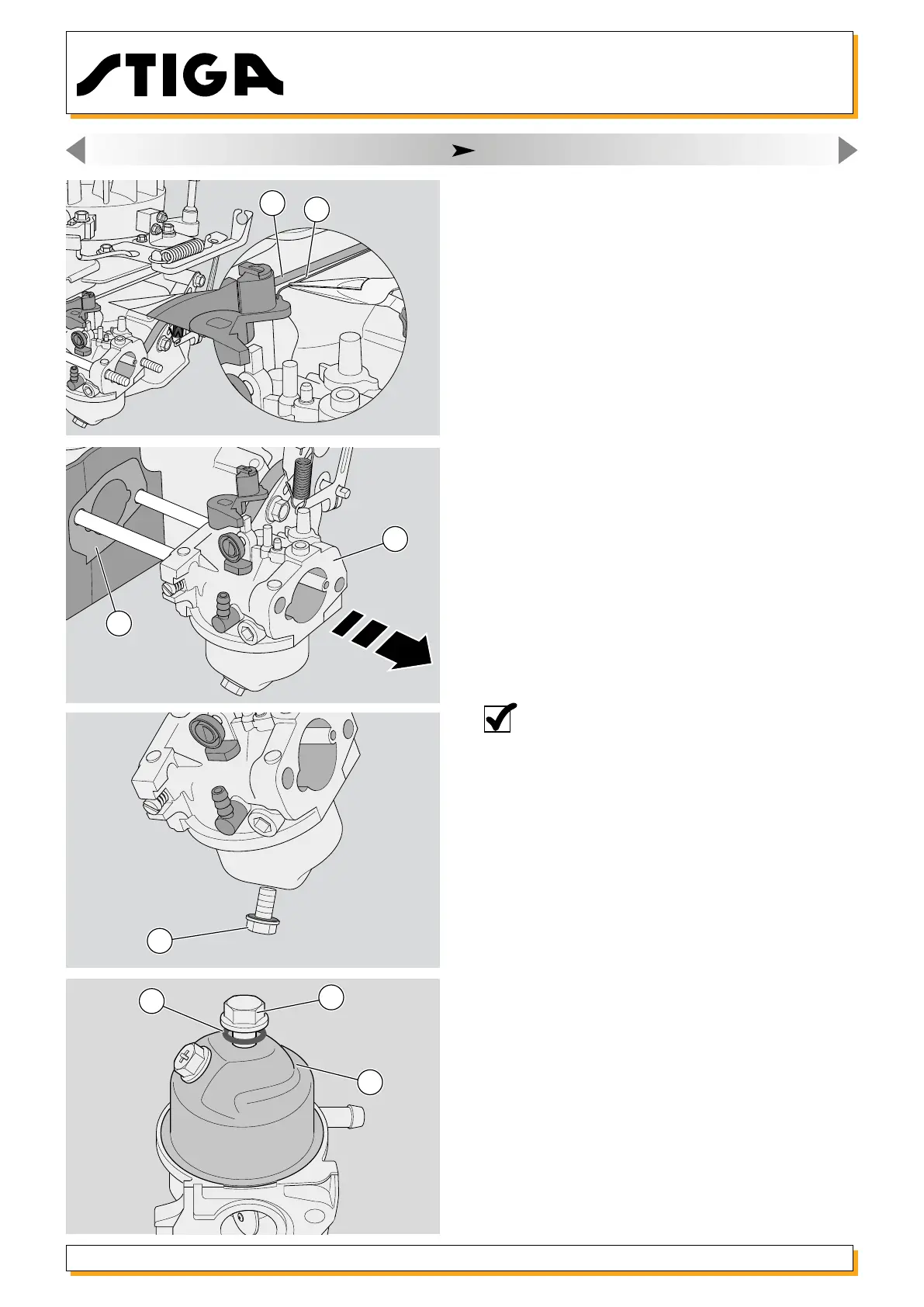

6 - Using pliers, disconnect the intake buttery rod
(6) and slide the small rod (7) for the relative com-
pensation spring upwards.
7 - Completely remove the carburettor (8) and the
gasket (9).
NOTE: Empty any remaining petrol from the
tank by removing the drain screw (10) as
showninthegure.Whennished,replace
the screw.
8 - Unscrew the central screw (11) securing the tank
(12) and remove the corresponding OR (13).
6
9
7
8
10
11
12
13
