Release 00 - 03/2018
Engine RS100 - RSC100
page 33
Service manual
7 - If the above checks do not show any faults,
the phasing of the governor’s control lever (12)
with respect to the counterweight device must be
checked:
- stop the engine and move the accelerator control
to “FAST”;
- slacken off the control lever (13) locknut (12);
- without changing the lever (12) position determi-
ned by the spring (10) and tie-engine shaft (9), use
a screwdriver to turn pin (14) clockwise to the end
of its stroke and then lock the nut (13).

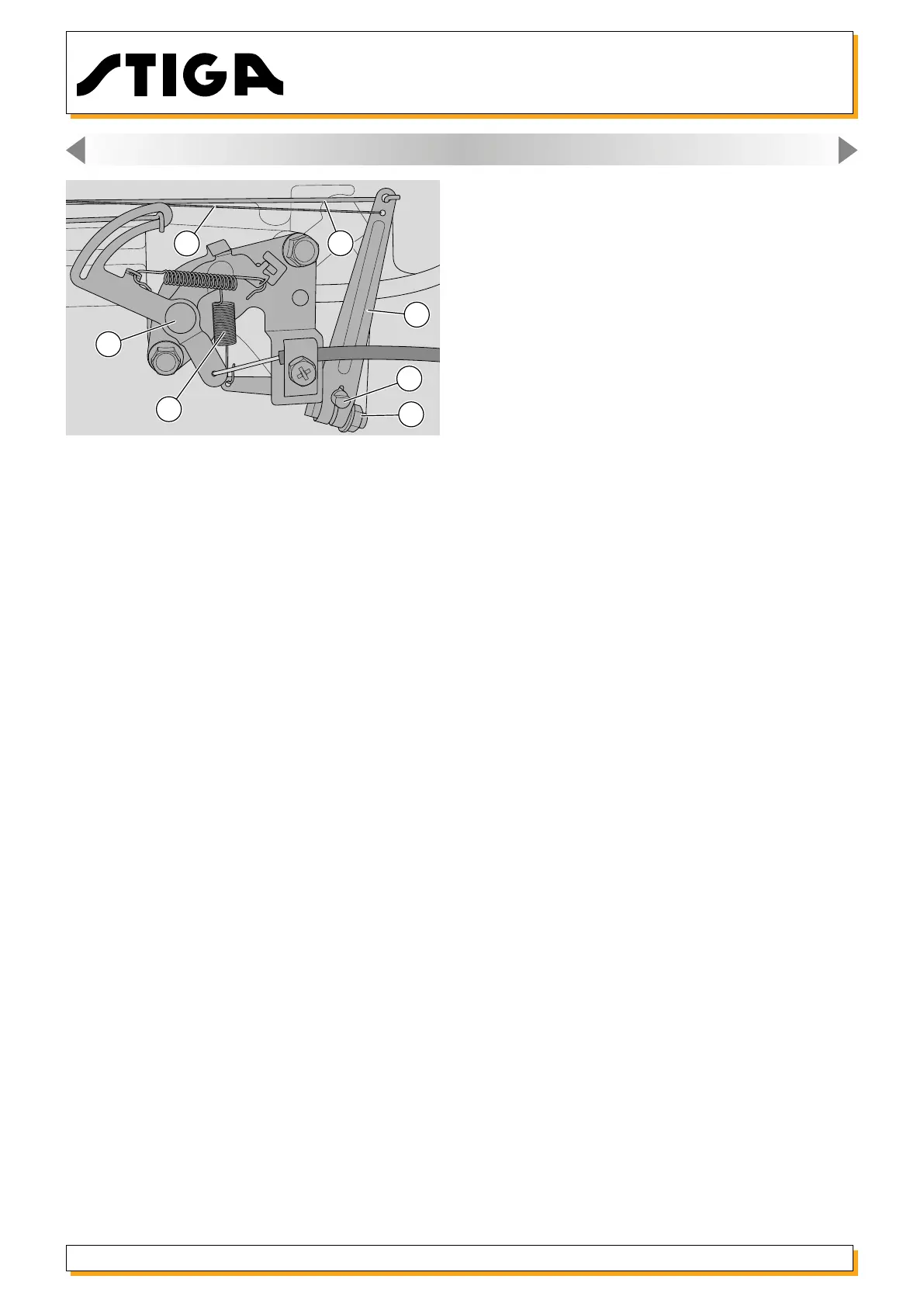

10. GOVERNOR SYSTEM OF THE CARBURETTOR
12
13
14
9
8
10
11
