WORK
SHOP MANU
AL
TIT
AN
Chapter
1 - General instructions
EDITION
2018
P
age
10
1.6.1
Re
frigerant gas air conditioning re
fill (only f
or machines
equipped with air conditioning sy
stem)
The air conditioning sy
stem uses a refriger-
ant gas type R134a.
The quantity used to fill
a new s
ystem is 0.9 kg.

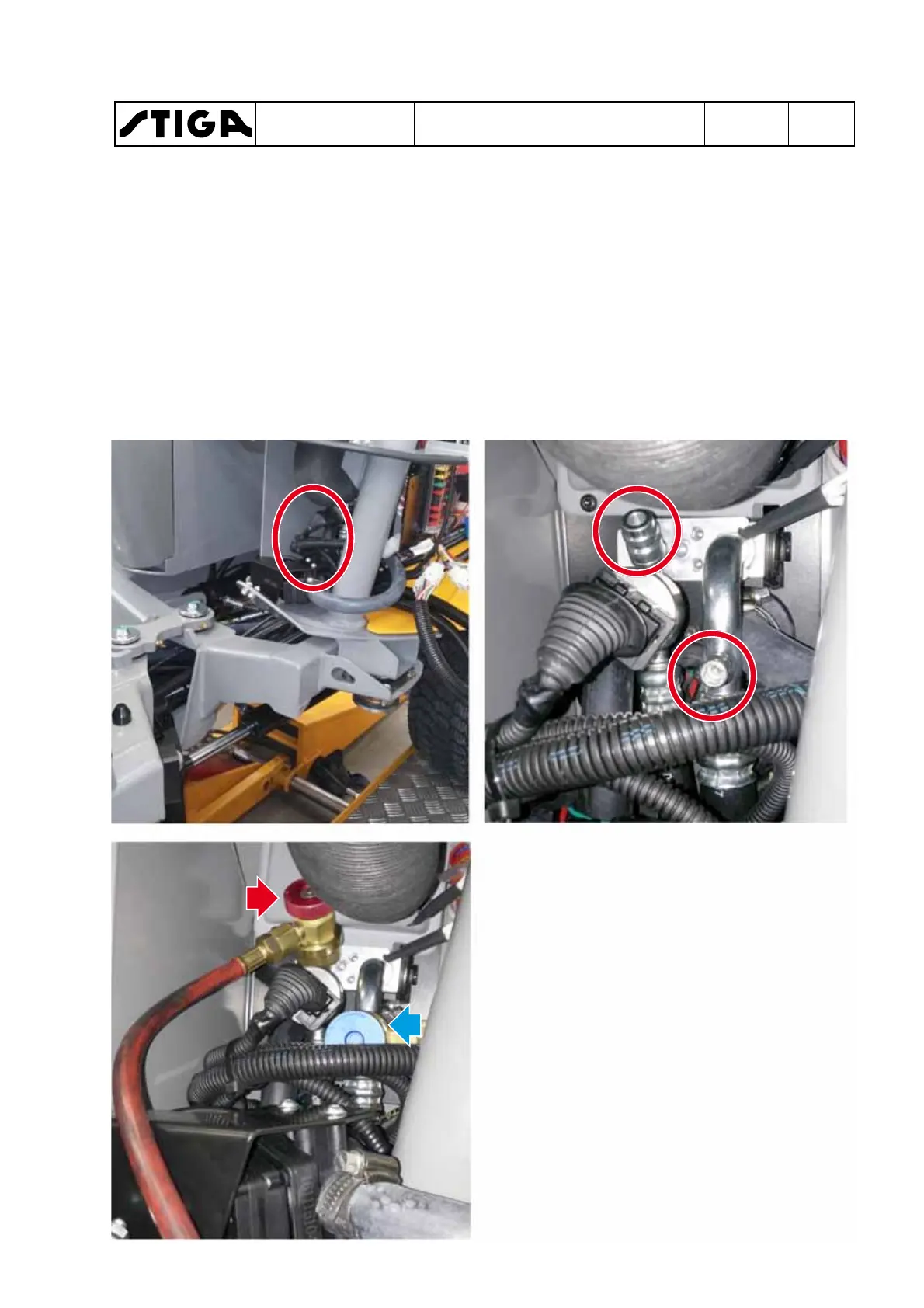

The charging station must be connected to
the sy
stem at the points shown in the follo
w-
ing pictures:
•
the red connector inserts the refriger-
ant gas,
•
he blue connector creates a v
acuum.
11
13
Table of Contents
1 - General Instructions 1 1 General Instructions
3
Table of Contents
3
Introduction
4
Contingent Liability
4
How the Manual Is to be Used
4
Abbreviations
4
Safety Precautions
4
Symbols, General Warnings
5
Hot Parts
5
Moving Parts
5
Lifting and Raising
5
Cleaning
5
Tightening Torques
6
Sharp Edges
6
Spare Parts
6
Check
6
Guarantee
6
Exceptions
6
Conditions of the Guarantee
6
Unpacking, Assembly
7
Assembly
7
Battery
8
Final Checks
9
Safety Checks
10
General Safety Checks
10
Electric Safety Check
10
Servicing
11
Refrigerant Gas Air Conditioning Refill
12
Technical Data
13
General Tightening Torques
20
User Guide
20
2 Chassis and Bodywork
21
Description
22
Removal/Installation of Covers
23
Removal of Engine Covers
23
Removing the Front Side Cover and the Control Panel
24
Radiator
25
Description
25
Dismantling
25
Assembly
26
Topping up with Coolant
27
Cab
28
Changing the Windscreen
28
Adjusting Door
29
Windscreen Wiper Motor
29
Light Setting
30
Removing the Cab
31
3 Steering System
33
Description
34
Removing the Power Steering Servo
34
Installing the Power Steering Servo
37
Replacing O Rings in the Power Steering Servo
37
Replacing O Rings in the Hydraulic
41
Cylinder
41
4 Hydraulic System
45
Configuration
46
Safety
46
Description of Drive System
47
Physical Description
47
Function Descriptio
50
Description of the Steering System
54
Physical Description
54
Function Description
56
Description of Hydraulic Sockets
60
Use of Hydraulic Sockets
60
Physical Description
61
Function Description
63
Description of PTO Drive
71
Physical Description
71
Hydraulic System
72
Function Description
73
Repair
76
Changing Hydraulic Oil, Filter
76
Level Indicator for Hydraulic Oil
77
Changing the Oil in the Wheel Motors
77
Replacing the Belts for the Hydraulic Pump
78
Adjusting Drive Belts
80
Replacing Hydraulic Pump
81
Removing the PTO Pump
82
Repair Hold Height Position
82
Vacuum Pump
84
Adjustments
85
Pressure, PTO Drive
85
Hydraulic Diagram
86
5 Control Cables
87
Description
88
General
88
Cable Holders
88
Angle Joints
88
Control Cable
90
Description
90
Dismantling
90
Assembly
91
Check
91
Adjustment
91
Brake Cable
92
Description
92
Dismantling
92
Assembly
93
Check
93
Adjustment
94
Assembly
95
Description
95
Dismantling
95
Throttle Cable
95
Adjustment
96
Check
96
6 - Electrical System 95 6 Electrical System
97
Description
98
Cable Holders
98
Fault-Tracing
98
The Starter Motor Does Not Rotate
99
The Startermotor Rotates but the Engine Does Not Start
99
Battery Discharges Repeatedly
101
The Engine Does Not Stop
101
The PTO Does Not Function
102
Electric Cutting Height Adjustment Does Not Function
103
The Engine Can be Started Without the Parking Brake Depressed
103
The Starter Motor Can be Activated When the Engine Is Running
104
The Sand Spreader Does Not Function
104
Electrical System
104
Power Cables
105
Description
105
Cable (+)
106
Rear Cable Harness
107
Front Cable Harnesses
109
Cab Wiring
111
Electric Requirements to be Able to Start the Machine
112
Repair and Replacement
113
Central Electrical Module
113
Replacing Fuses
114
Replacing Switches
116
Replacing Switch Controls
116
Connections
117
Replacing Headlamp Bulbs
117
Control Panels
118
Wiring Diagram
120
