4.6
Description of PTO
drive

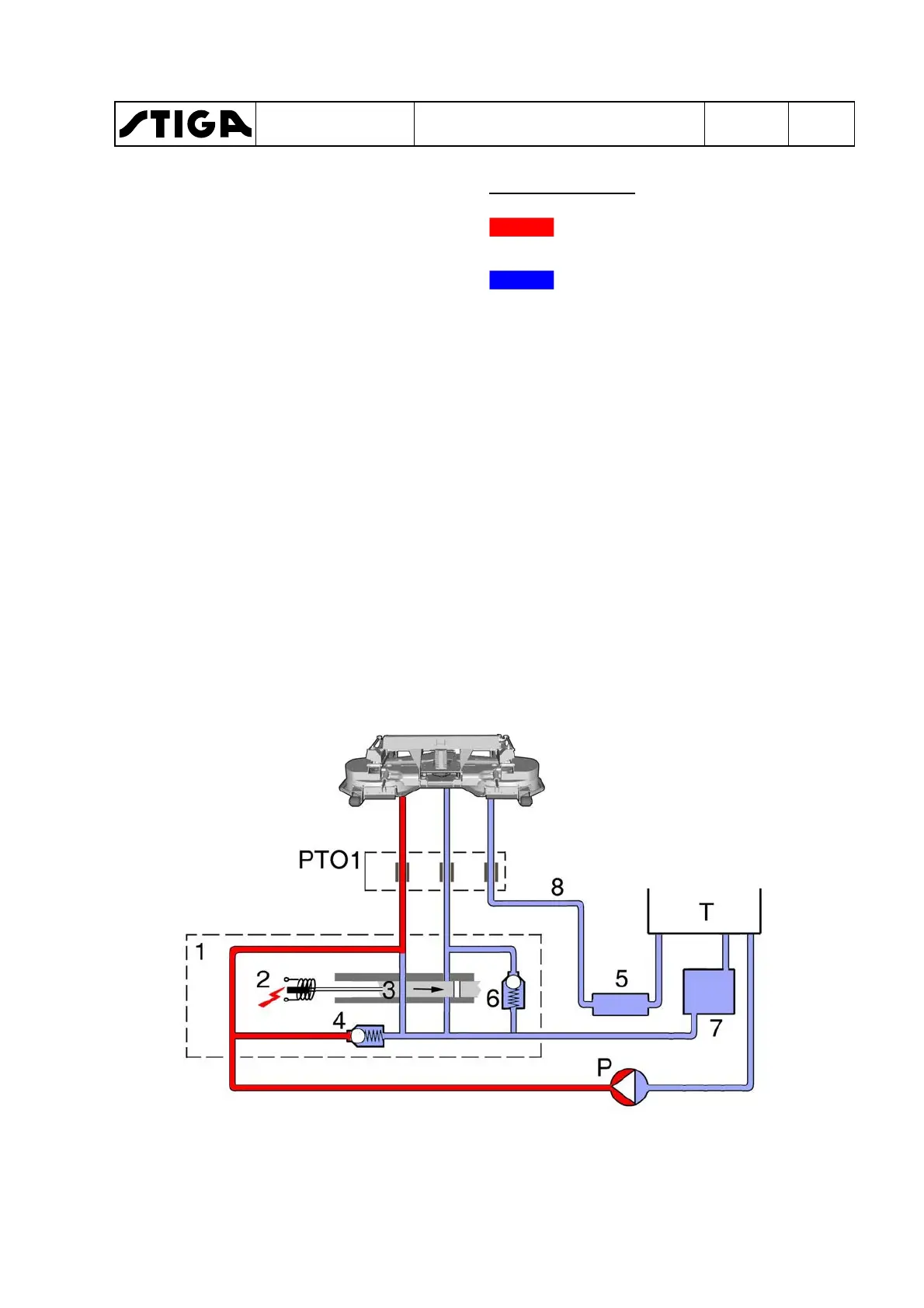

4.6.1
Physical description
1.
PTO valve, including 2, 3, 4 and 6 be-
low.
2.
Electric solenoid.
3.
Slide inclusive right and left valve.
4.
Pressure limiter valve, 220 bar.
5.
Collector block.
6.
Brake valve.
7.
Oil cooler.
8.
Tramp oil line.
P. Hydraulic pump.
PTO1. Hydraulic socket .
PTO1s.Switch.
T. Tank.
Colour - Pressure
Red displays the supply pres-
sure to the implement.
Blue displays the atmospheric
pressure in the return lines.
Also see the next page for location on the
machine and further description of the
components.
WORKSHOP MANUAL
TITAN
Chapter
4 - Hydraulic system
EDITION
2018
Page
69
