5.2.3 Assembly
1. Lubricate the cable through the end
seals. Run the cable back and forth
until oil has covered the length of the
cable.

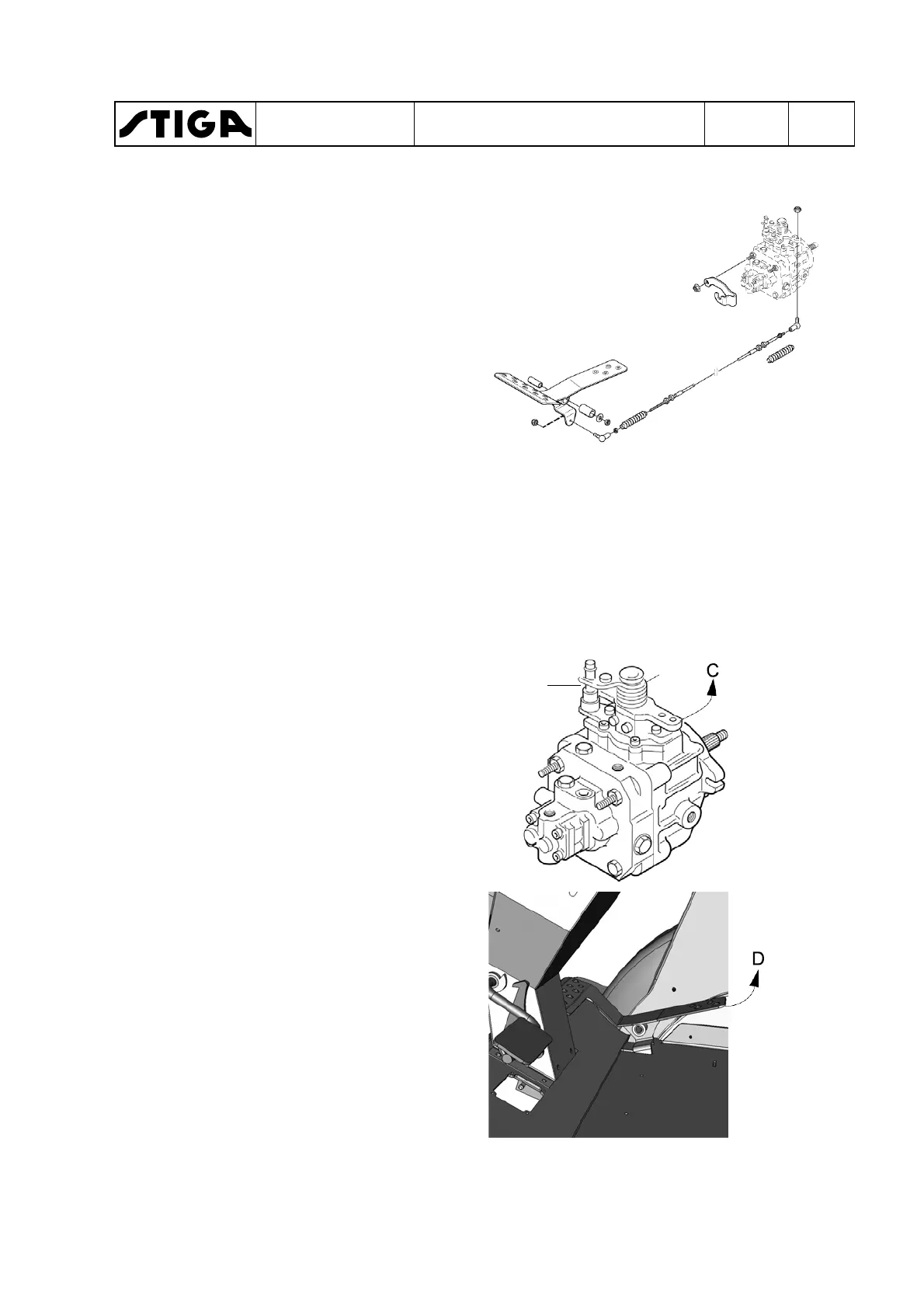

2. Install the cable in the same way as
the one installed previously. Also see
the image.
3. Adjust the cable. See “5.2.5”.
5.2.4 Check
• Check that the cable can move easily in
the housing along the whole length of
the stroke.
• Check that the cable is free of sharp
kinks and other damage. The casing
must be fault free so that water cannot
penetrate.
• Check that the end seals are intact.
5.2.5 Adjustment
It is very important that the control cable
is correctly adjusted, otherwise the maxi-
mum forward and backward positions
cannot be reached as well as exposing
the cable to greater stresses.
1. Remove circlip A and spring B on the
hydrostatic pump.
2. Lock arm C on the hydrostatic pump in
the full speed forward position.
3. Lock drive pedal D in the full speed
forward position.
4. Adjust the control cable.
Note
In cases where the cable is not suffi-
ciently long to reach the maximum
forward position on the pedal and on
the pump the stop screw must be ad-
justed. At full speed forward the pedal
must always be against the stop
screw to prevent damage to the cable.
B
A
WORKSHOP MANUAL
TITAN
Chapter
5 - Control cables
EDITION
2018
Page
89
