6.6

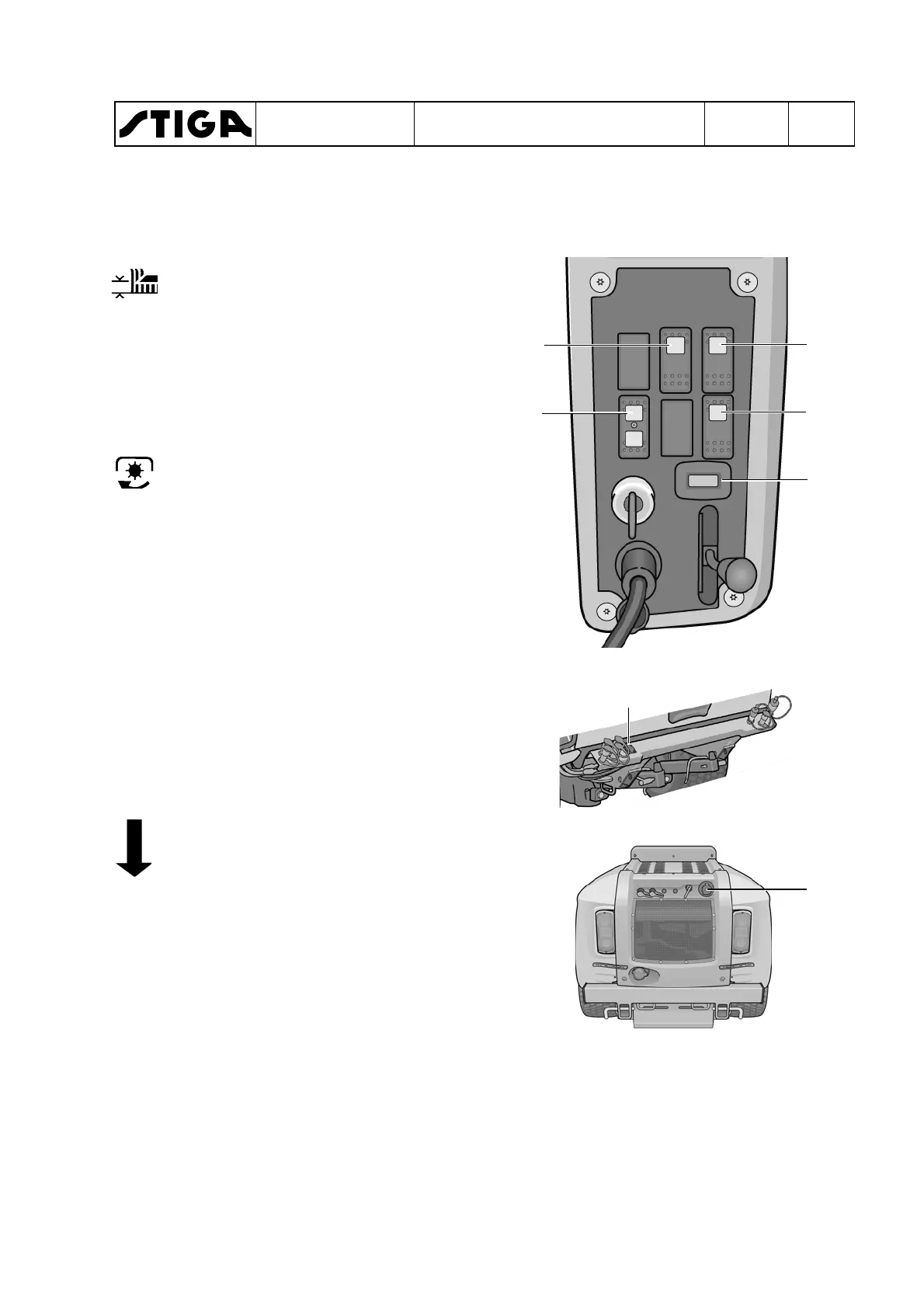

Control panels
Switch A1
The switch can be used to smooth-
ly set the cutting height of the cut-
ting deck with electric cutting
height adjustment. The switch
controls the contact (A) with
switching polarity.
Switch A2
Switch for engaging and disen-
gaging the operation of the front
mounted implement. Two posi-
tions:
1. Press the front part of the switch
–
PTO engages. The symbol will
light up.
2. Press the rear part of the switch
–
PTO disengages.
Switch A3
12V
The switch has three positions and
can be used for the sand spreader
for example. The switch controls
the contact (B).
Switch A4
The switch has two positions and
indicates which hydraulic socket will
be activated by the control.
B
Hour meter A5
Indicates the number of working hours.
Only works when the engine is running.
A1
A2
A3
A4
A5
A
WORKSHOP MANUAL
TITAN
Chapter
6 - Electrical system
EDITION
2018
Page
116
