5.2
Control cable
5.2.1
Description
The control cable transfers the power
from the drive pedal to the hydraulic
pump lever arm. Because the pedal is
also a service brake it is very important
that the cable moves easily in its housing.
The cable transfers both thrust and trac-
tive forces.
5.2.2
Dismantling

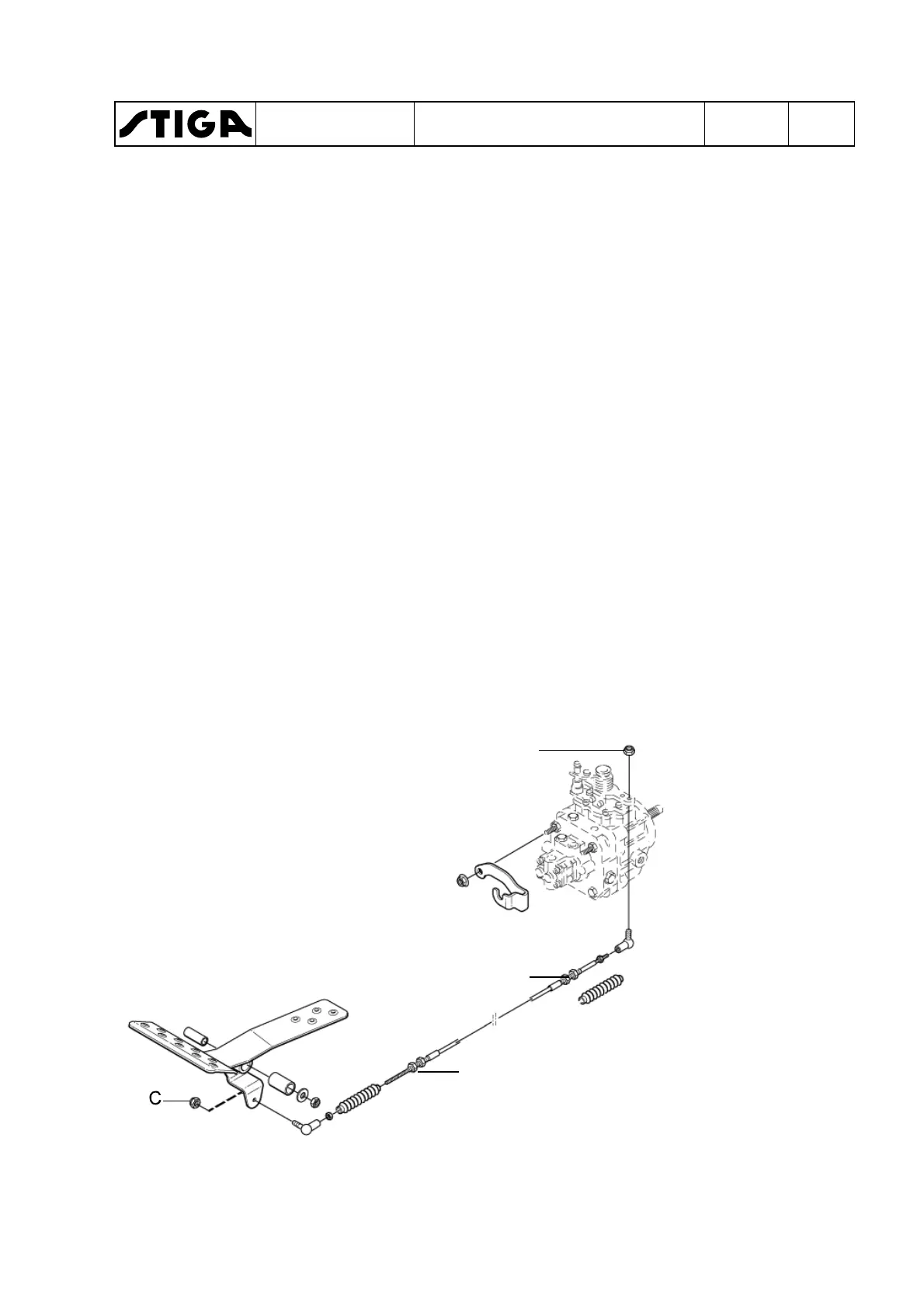

1.
Disconnect the cable at hydraulic
pump arm A and the adjuster nuts B at
the hydraulic pump mounting.
2.
Disconnect the cable at the front end
C and adjuster nuts D from under-
neath.
3.
Remove all securing straps. Note how
the cable is routed so that the new ca-
ble can be reinstalled in the same
way.
A
B
D
WORKSHOP MANUAL
TITAN
Chapter
5 - Control cables
EDITION
2018
Page
88
