A
A
C
A
C
2.2
Removal/Installation of
covers
2.2.1

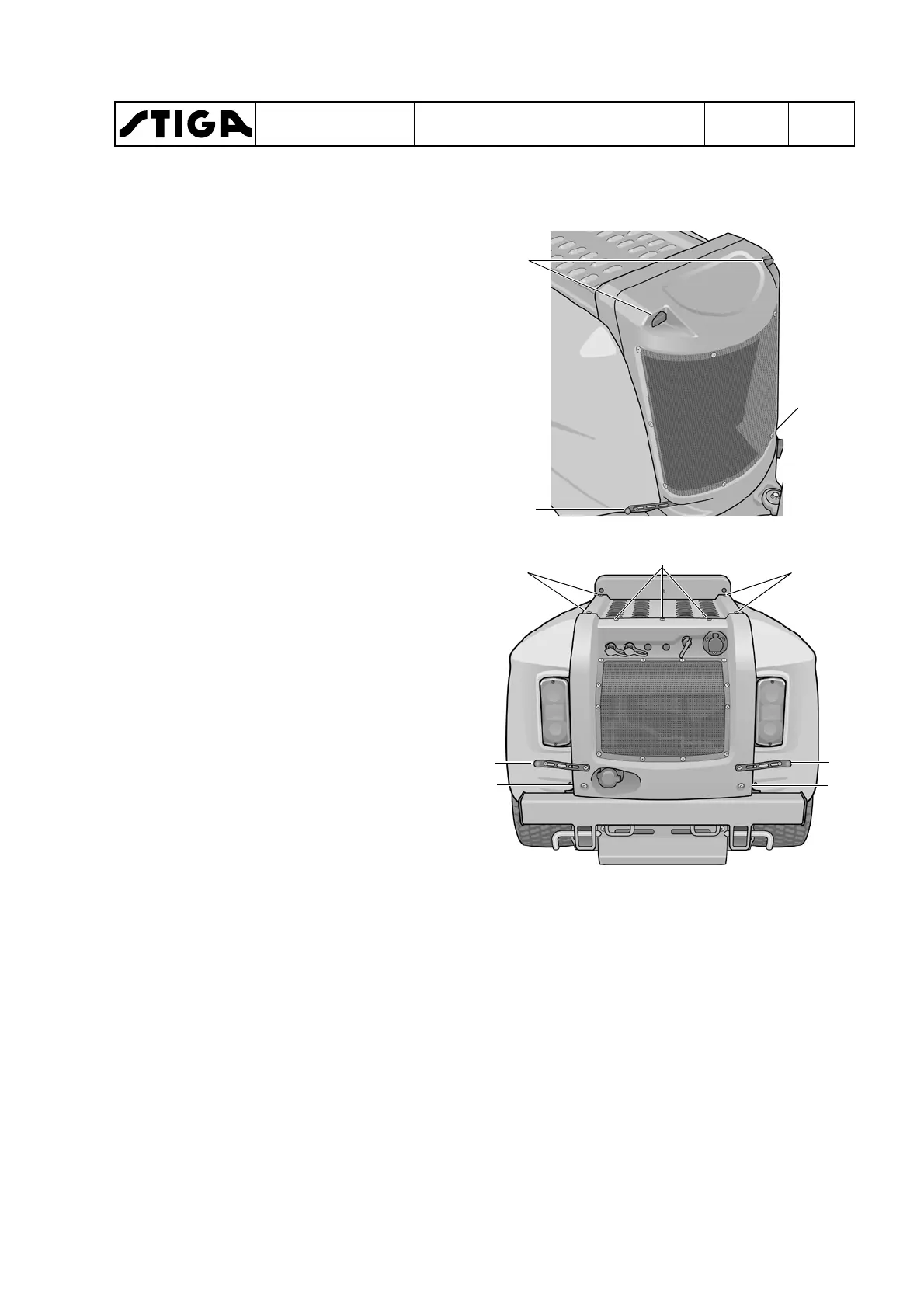

Removal of engine covers
E
•
Remove the front and rear rubber
straps A (4x) on the side covers.
•
Remove the rear engine cover by
unscrewing the five screws B (3x), C
(2x) behind the side covers.
•
Remove the upper cover by unscrew-
A
ing the screws D (4x) (and B (3x),
same screws as the rear engine
cover).
•
Remove the front cover by releasing
the locking knobs E (2x).
Installation is in reverse order, remember
D
B
D
that the two locking knobs are adjustable.
WORKSHOP MANUAL
TITAN
Chapter
2 - Chassis and bodywork
EDITION
2018
Page
21
