Series 4180 Powerhead36

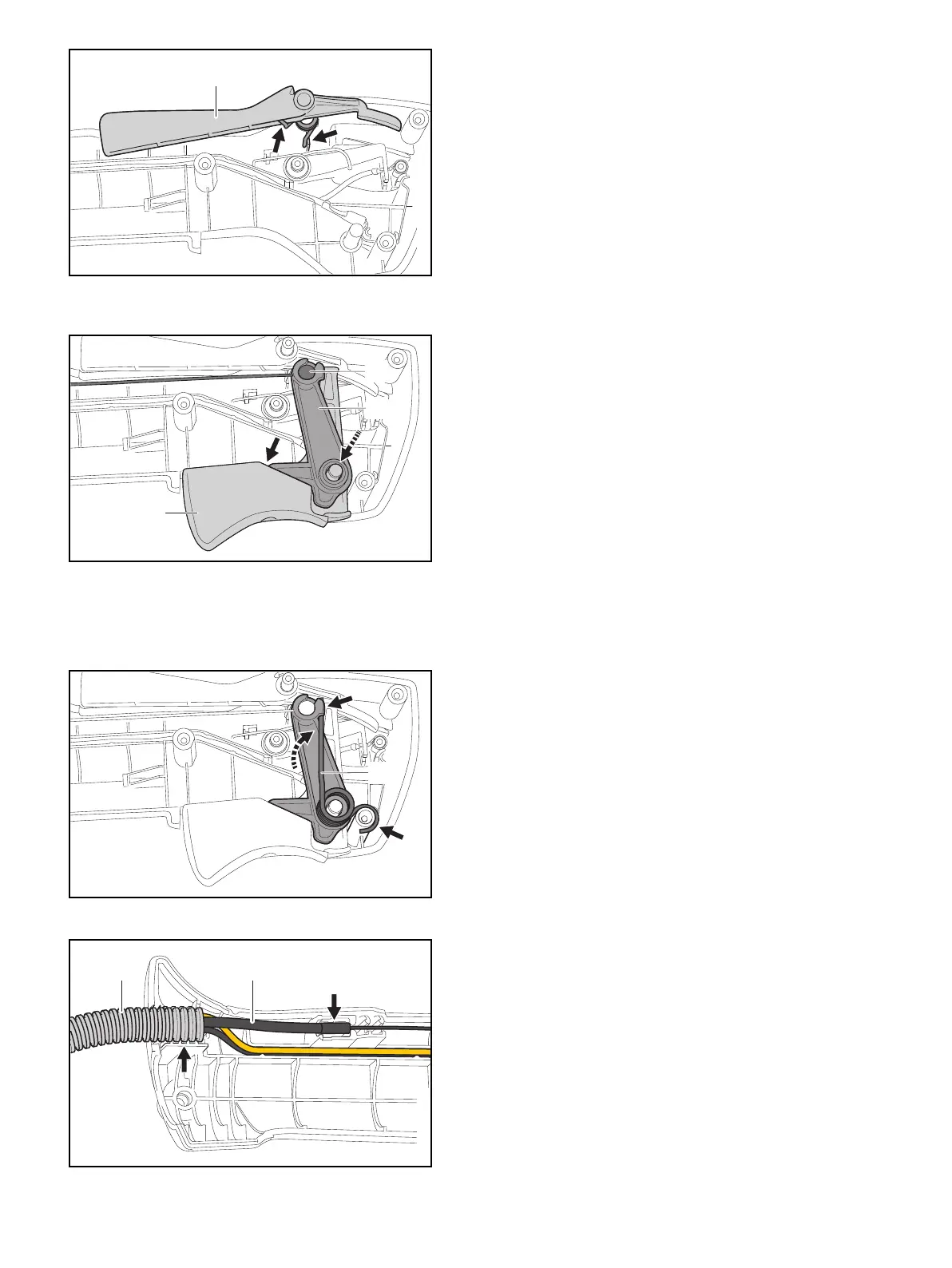

N Push lockout lever (5) into place and hook torsion
spring (4) (arrow) to the lockout lever.
N Fit the lever (8) in the throttle trigger (7).
N Attach throttle cable (23) to lever (8).
N Depress the lockout lever (5) and push throttle trigger
(7) with lever (8) onto the pin (13).
N Fit the torsion spring (9).
N Fit throttle cable (23) and hose (24) in the guides.
N Fit the ‘outer handle molding’ (16).
N Insert and tighten down the screws (10).
N Fit short circuit wire, ground wire and throttle cable on
the engine, @ 8.11.
N Install the control handle, @ 13.3.
