Mecanism de antrenare HT12
9.1 Cuprins
9.2 Unelte, mijloace auxiliare
– inserţie T27 – 0812 542 2104
– Cheie combinată – 1129 890 3401
– Manşon de presare – 4112 893 2401
– Cheie dinamometrică – 5910 890 0302
9 Mecanism de antrenare
D5x32 (8 Nm / 71 lbf. in.)
4
1
2
5
3

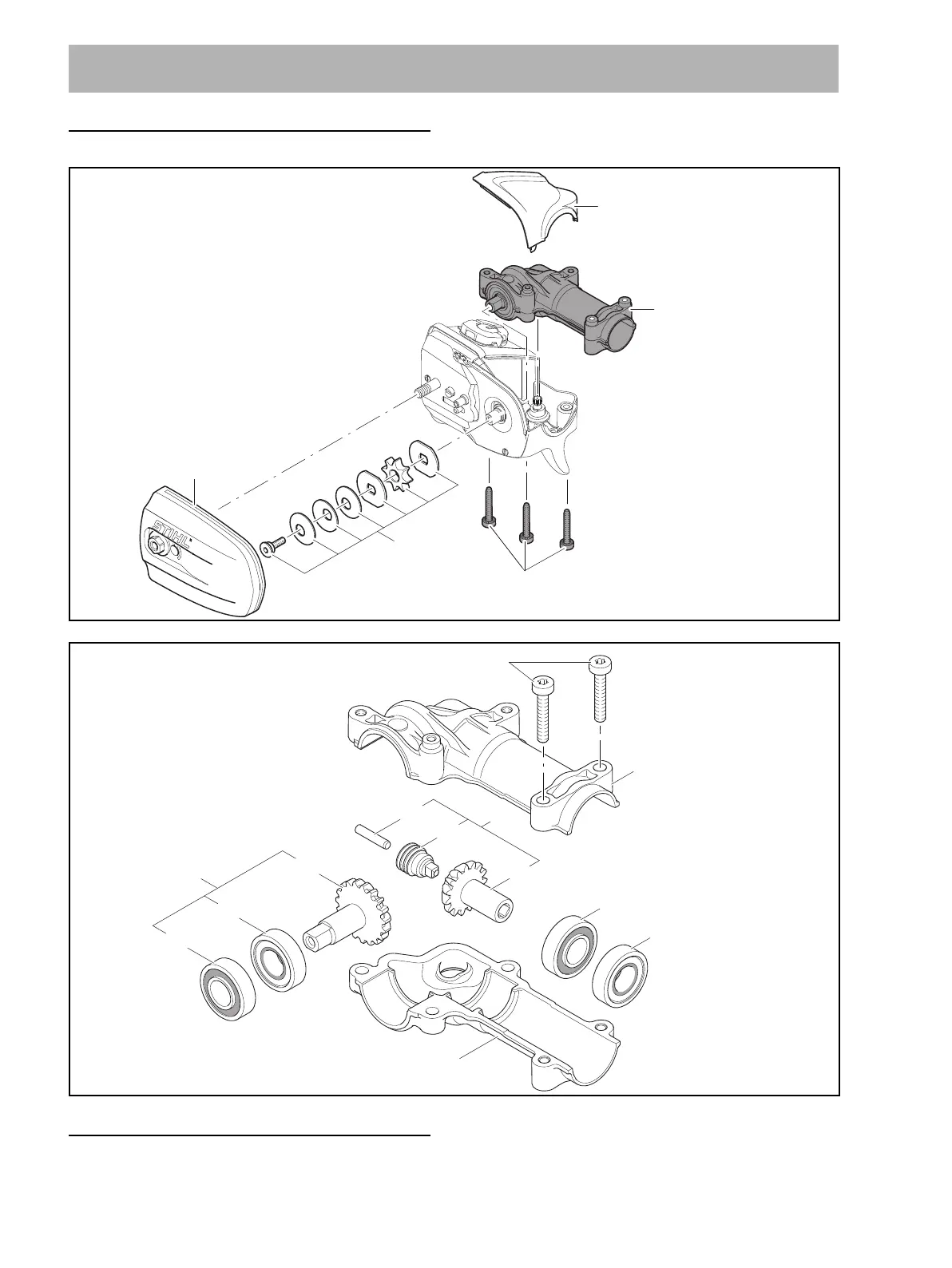

0000-GXX-0232-A0
11
14
7
15
13
10
11
12
10
16
6
M5x28 (6.5 Nm / 58 lbf. in.)
8
9
0000-GXX-0233-A0
