Stihl 4180 Series Service Manual

Series 4180 Powerhead22

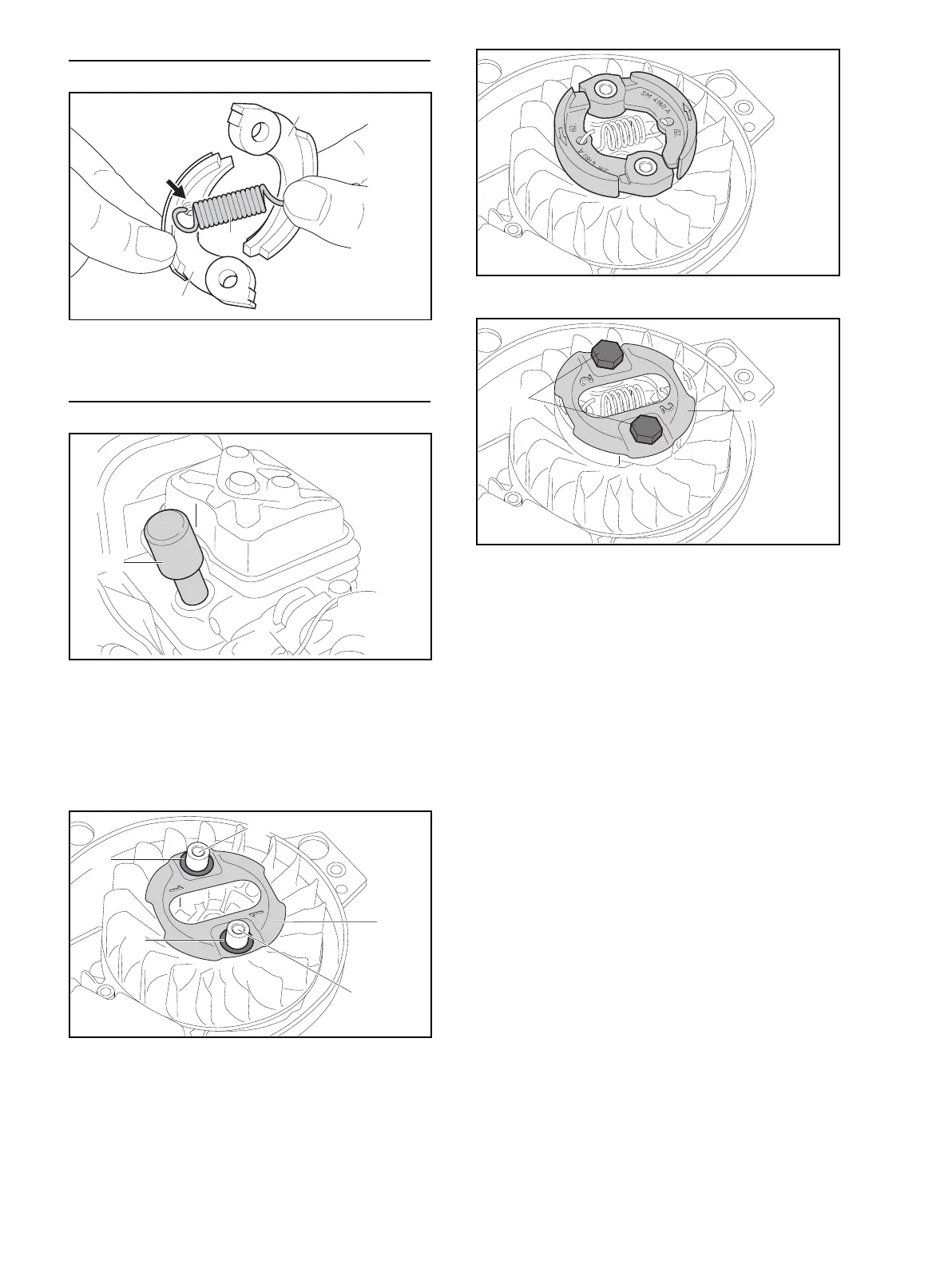

9.4 Assembling the Clutch
N Attach the spring (8) to the clutch shoes (4, 5) so that
its hooks (arrow) are on the side with the lettering.
9.5 Installing the Clutch
N Pull boot off the spark plug.
N Unscrew the spark plug.
N Fit the locking screw 4282 890 2700 (25) in the spark
plug hole.
N Turn the crankshaft clockwise until the piston butts
against the locking screw.
N Place the cover plate (1) on the flywheel so that the
number “1” faces up.
N Fit the sleeves (2) on the cover plate (1) and push
them into the flywheel.
N Fit the washers (3) on the sleeves (2).
N Fit the clutch so that the lettering faces up.
N Place the cover plate (6) on the flywheel so that the
number “2” faces up.
N Insert and tighten down the screws (7).
N Insert and tighten down the spark plug.
N Fit the boot on the spark plug.
N Install the fan housing, @ 5.7
N Install the shroud, @ 4.5.
8
4
5
0000-GXX-1924-A0
25
0000-GXX-1966-A0
3
3
1
2
2
0000-GXX-1925-A0
0000-GXX-1926-A0
6
7
0000-GXX-1927-A0
