106 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

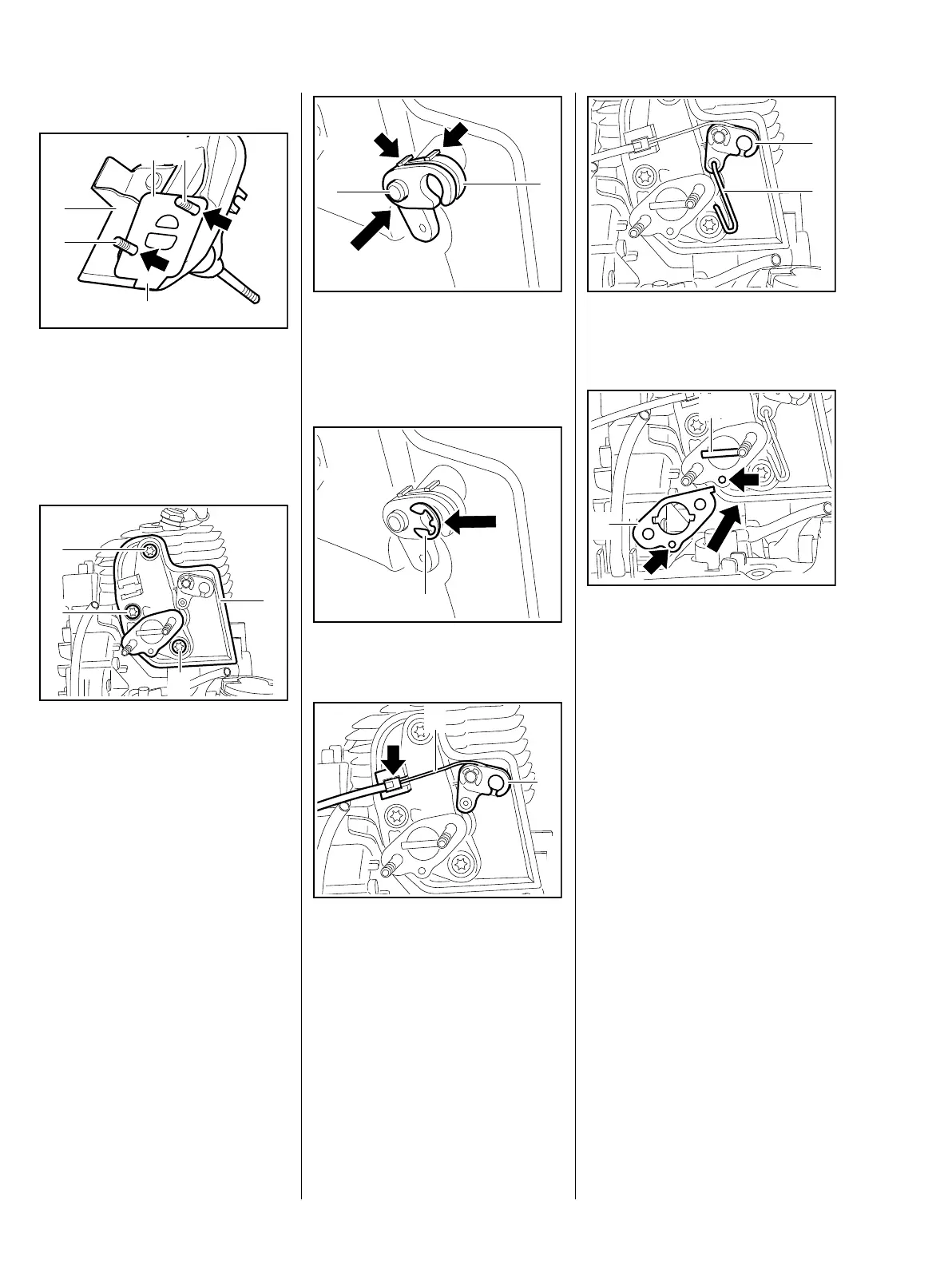

Installation
: Align the new gasket (1) so that
the tab (2) faces downward and
the holes (arrows) match
: Insert two screws (3) and affix
gasket to spacer flange (4)
: Position spacer flange (1) with
gasket on cylinder intake port
: Insert and tighten down the
screws (2)
5904RA423 TG
1
2
3
3
4
5904RA424 TG
2
1
2
2
: Orient lever (1) so that the
pins (arrows) face the spacer
flange and push it onto the
post (2)
: Push circlip (1) into place
: Hook throttle cable (1) onto
lever (2) and press it into the
mount (arrow)
2
5904RA425 TG
1
5904RA426 TG
1
5904RA419 TG
1
2
: Hook the throttle rod (1) onto the
lever (2)
: Orient gasket (1) so that the
holes (arrows) match and the
openings engage the ridge (2)
: Press gasket (1) over the studs
– Reassemble remaining parts in
reverse order
