97FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

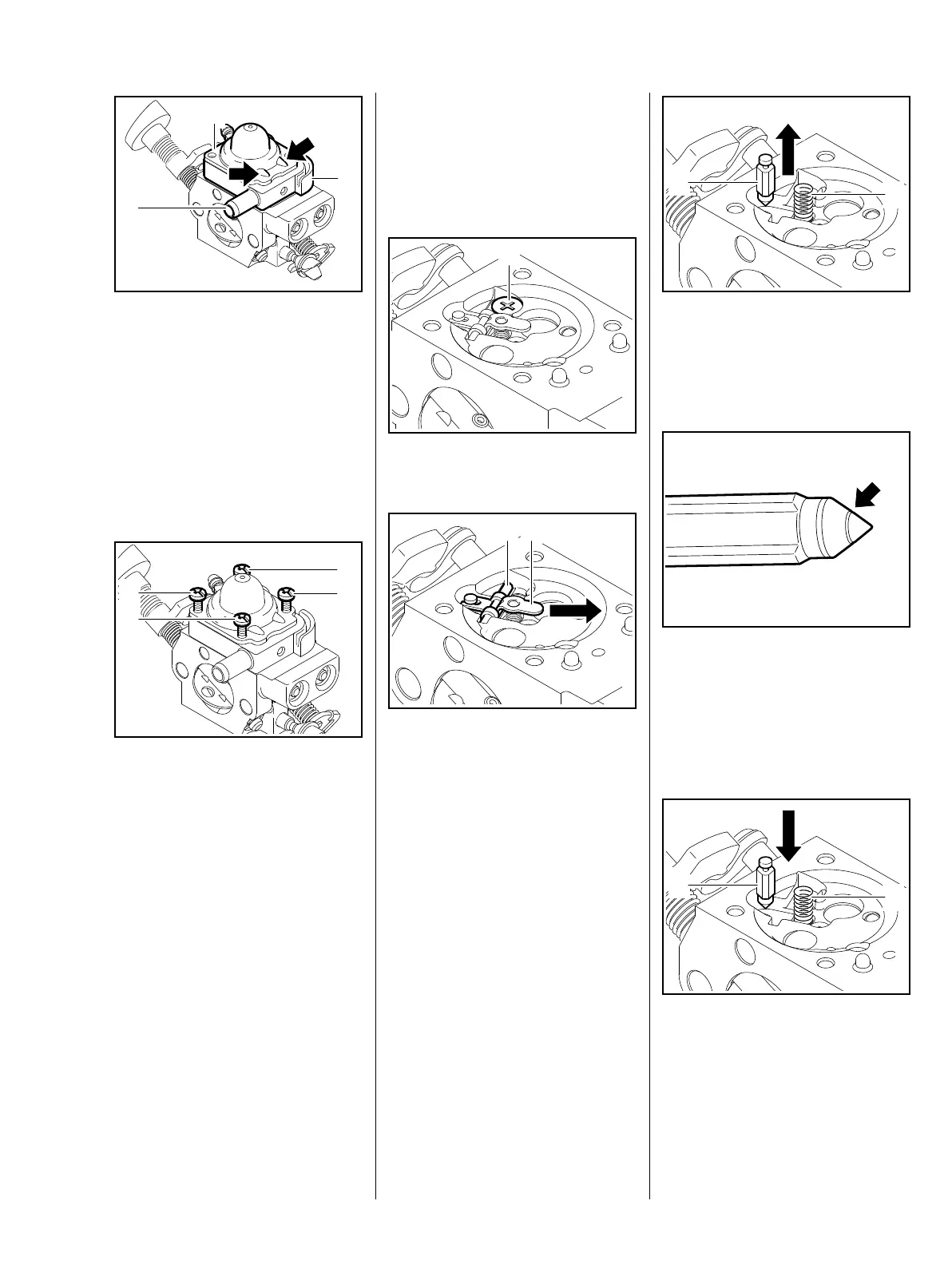

: Orient flange (1) so that
connector (2) is on the same side
as the choke shutter and position
it so that it engages the pins on
the carburetor
: Orient end cover (3) so that the
bulges (arrows) face in the
direction of the idle speed
screw LA
: Fit and tighten screws (1)
– Check that the metering
diaphragm and gasket are
correctly seated, then tighten
down the screws crosswise
– Reassemble remaining parts in
reverse order
5904RA347 TG
1
2
3
5904RA348 TG
1
1
1
1
11.4.2 Inlet needle
– Remove the metering
diaphragm,
b 11.4.1
: Remove screw (1)
: Pull the inlet control lever (1) with
spindle (2) out of the groove in
the inlet needle
The spring under the inlet control
lever may pop out.
5904RA349 TG
1
5904RA350 TG
2 1
: Pull out the inlet needle (1)
: Take out and examine the
spring (2), replace if necessary
: The inlet needle must be
replaced if a circular
indentation (arrow) is visible on
the tip of its sealing cone
Installation
: Fit the inlet needle (1)
: Fit spring (2) in bore
5904RA351 TG
1
2
165RA348 TG
5904RA352 TG
1
2
