40 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

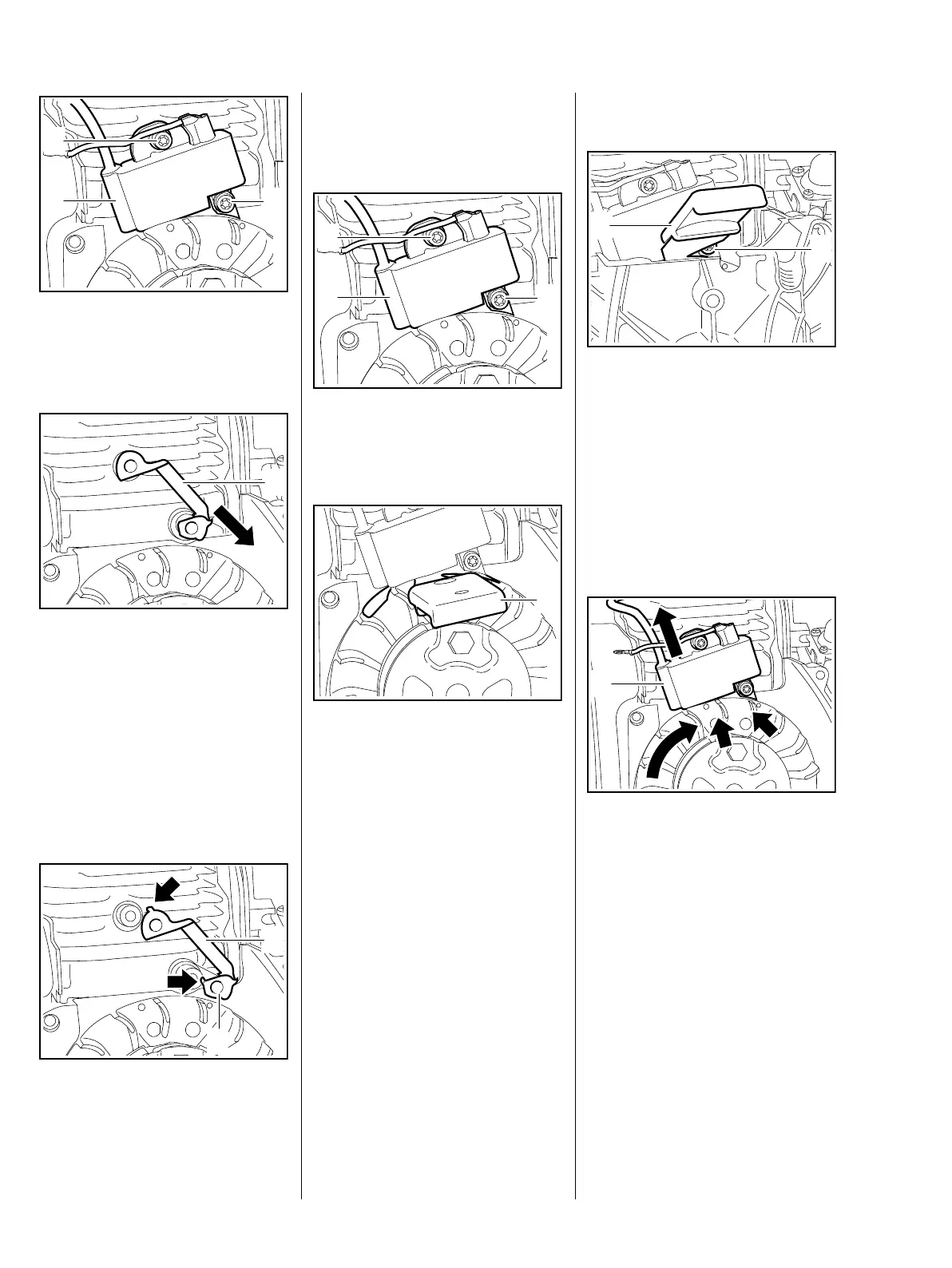

: Remove screws (1) with washers
: Remove the ignition module (2)
: Remove the insulating
element (1)
– Examine spark plug boot and
cable holder, replace if
necessary, b 6.4
– Troubleshooting, b 3.5
Installation
: Position insulating element (1) so
that the connection bar (2) faces
the carburetor
1
1
5904RA102 TG
2
1
5904RA103 TG
2
5904RA104 TG
1
: Secure insulating element (1)
with the stubs (arrows) on the
cylindrical bumps
: Fit ignition module (1) and insert
screws (2) with washers – do not
tighten them down
: Push back ignition module and
slide setting gauge (1)
0000 890 6400 between the legs
of the ignition module and the
magnetic poles of the flywheel
2
2
5904RA105 TG
1
1
5904RA106 TG
Adjustment with clutch housing
installed
: Push back ignition module and
slide setting gauge (1)
0000 890 6400 between the legs
of the ignition module and the
magnetic poles of the flywheel
: Slide setting gauge (1) in the
direction of the muffler until there
is enough space to tighten the
lower screw (2)
Shown without setting gauge for a
better view.
– Push back and hold ignition
module (1)
– Flywheel must turn freely
: Turn the flywheel until the
pair of magnetic poles "N/ S"
(arrows) is at the ignition
module (1) – not the pair of
magnetic poles "S/ N"
1
5904RA335 TG
2
N
S
5904RA107 TG
1
