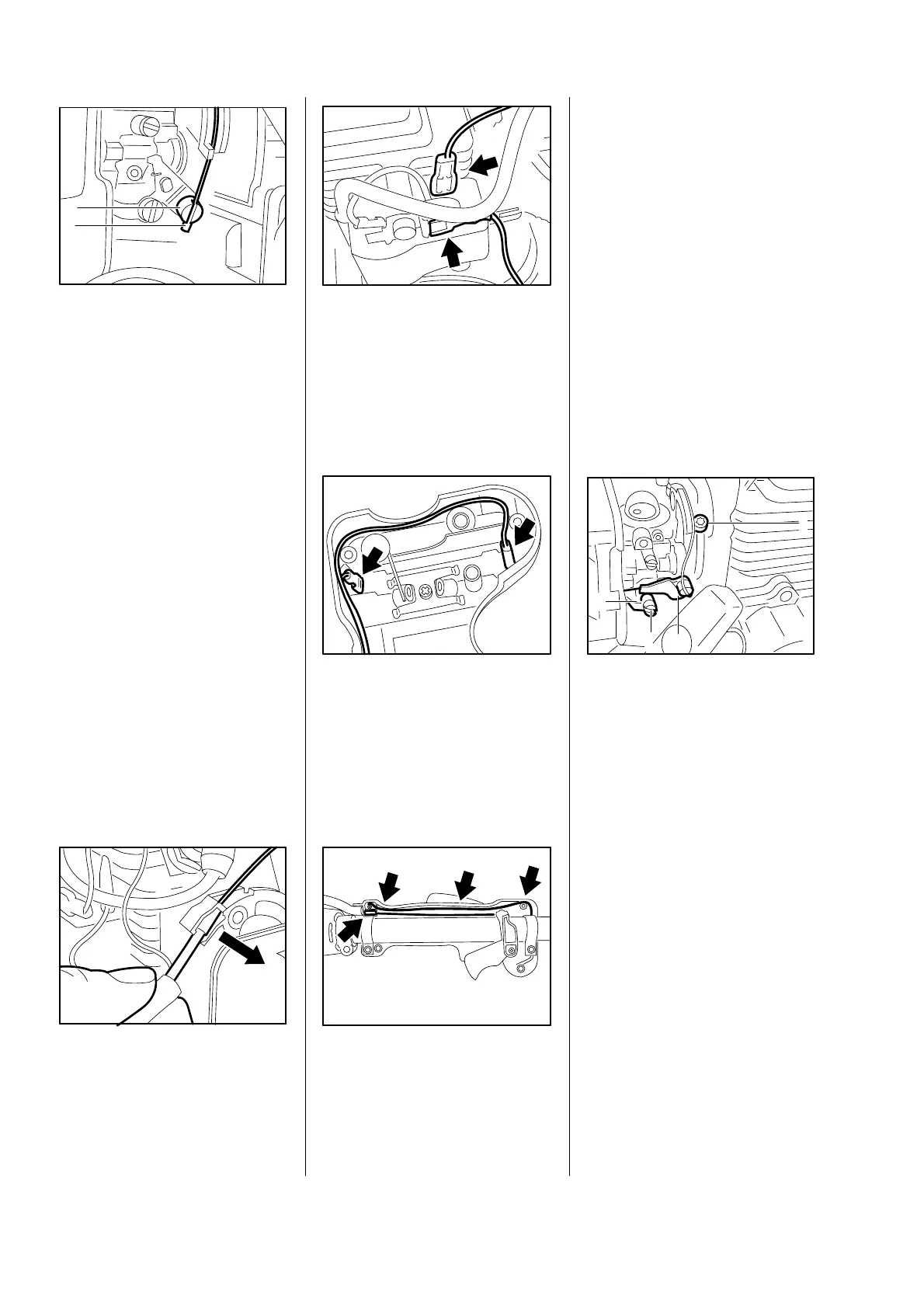

-Removeshroud,see3.1.
•
Unhooknipple(1)onthrottle
cablefromslottedpin(2)on
throttlelever.
Note:See7.2inthecaseof
machineswithoneshort-circuit
wire.
•
Pullthrottlecableoutoften-
sioner.
•
Unplugshort-circuitwiresfrom
socketsonignitionmodule.
-Removethrottletrigger,see7.4.
•
Disconnectshort-circuitwires
fromconnectorlugs.
Thepartsareinstalledinreverse
order.
•
Short-circuitwires,throttlecable
andtubingforthrottlecablemust
becorrectlyroutedinsidethe
handlemoulding.
Note:Thethrottlelevermustbutt
againstthestoponthecarburetor
bodywhenthethrottletriggerisin
thefullthrottlepositionand
againsttheidlespeedadjusting
screwwhenthetriggerisinthe
idleposition.
Thethrottlecableisadjustedby
movingthetensioner.
-Removeshroud,see3.1.
-Checkcorrectsettingofidle
speedadjustingscrew.
Important!Noteadjustingrange
ofidlespeedadjustingscrew.
-Tomaketheadjustment,press
thethrottletriggertothefull
throttleposition.
•
Turnadjustingscrew(1)clock-
wiseuntilthrottlelever(2)butts
againststop(3)oncarburetor
body.
-Releasethrottletrigger(idleposi-
tion).Thethrottlelevermustbutt
againsttheidlespeedadjusting
screw(4).
-Refitshroud.
392RA101
VA
392RA102
VA
392RA103
2
3
1
4
VA
7.5 Throttlecablewithtwoshort-circuitwires 7.6 Adjustingthethrottlecable
982RA073
VA
392RA100
2
VA
1
392RA058
VA
34

Stihl FS 80 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Cutting Diameter	420 mm
Shaft Type	Straight
Starter	Recoil
Sound Power Level	106 dB(A)
Fuel Capacity	0.44 liters
Vibration Level	4.5 m/s²
