Stihl FS 80 User Manual

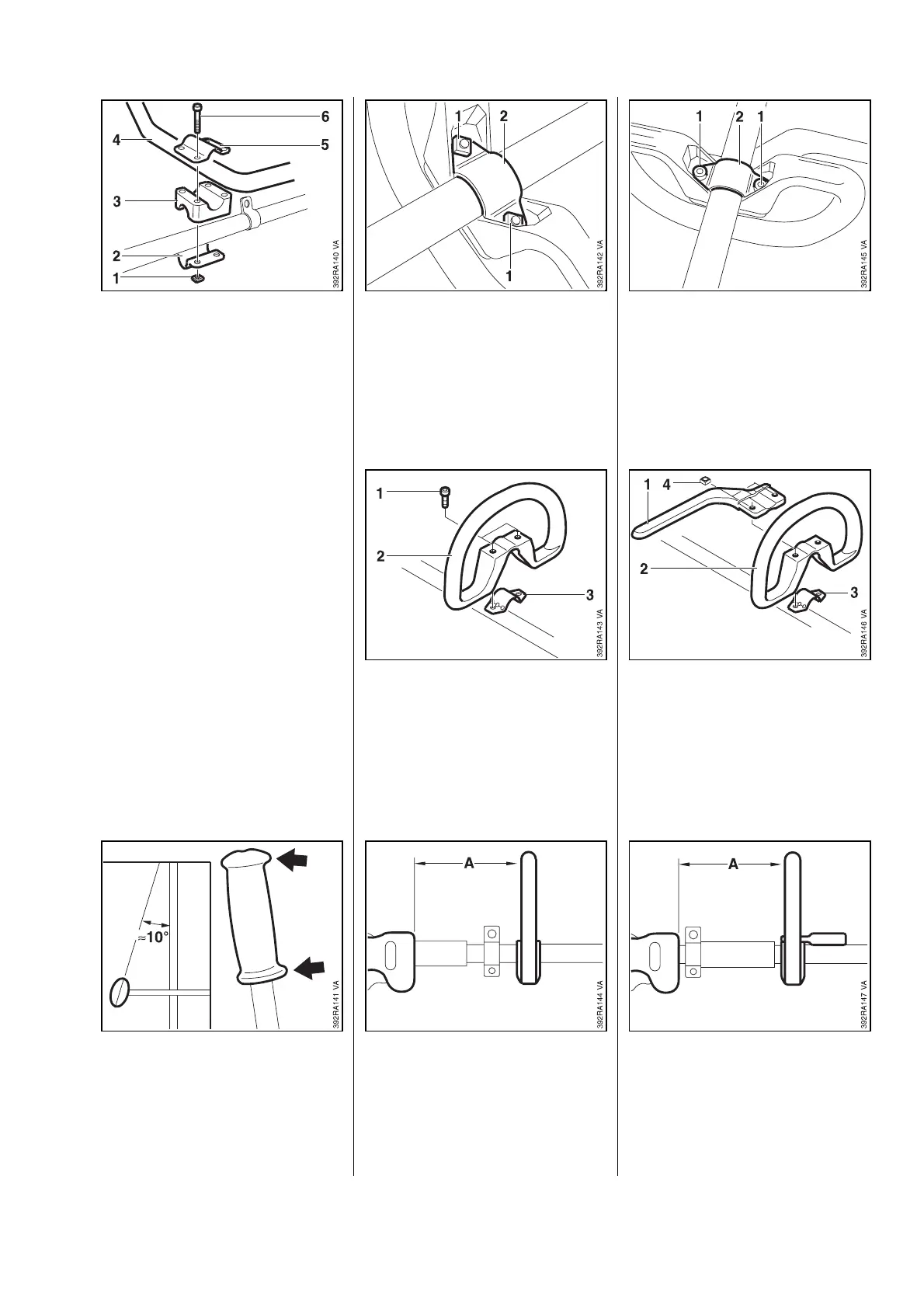

-Removecontrolhandle,see9.1.
•
Unscrewnuts(1).
•
Removelowerclampingelement
(2),clampingelement(3),
cowhornhandle(4)andupper
clampingelement(5)withbolts
(6).
-Carefullysliceopenleft-hand
handleandpullitoff.
-Clampcowhornhandleinvice
withprotectivejaws(veejaws).
-Coatinteriorofhandlewitha
littlelubricant(e.g.washing-up
liquid)aroundtheopening.
Note:Thehandlecansub-
sequentlyberotatedonthe
handlebariftoomuchlubricantis
used.Itmustthereforebeallowed
todryforsometimeafterinstalla-
tion.
•
Slidehandleontohandlebarso
thatthelongerendspoint
towardsthegearboxandareat
anangleofapprox.10...15de-
greesinrelationtotheprotective
tube.
LoopedhandlewithoutU-bar
•
Unscrewnuts(1).
•
Removelowerbracket(2).
•
Pulloutbolts(1).
•
Removeloopedhandle(2)and
upperbracket(3).
Thepartsarefittedinreverse
order.
•
Lineloopedhandleupata
distanceA=20cminfrontof
controlhandleandsecureitin
position.
LoopedhandlewithU-bar
•
Removescrews(1).
•
Removelowerbracket(2).
•
RemoveU-bar(1),loopedhand-
le(2)andupperbracket(3).
•
Removesquarenuts(4)fromU-
bar.
Thepartsarefittedinreverse
order.
•
Lineloopedhandleupata
distanceA=20cminfrontof
controlhandleandsecureitin
position.
10. Shaft
10.1 Cowhornhandle 10.2 Loopedhandle
43

Stihl FS 80 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Cutting Diameter	420 mm
Shaft Type	Straight
Starter	Recoil
Sound Power Level	106 dB(A)
Fuel Capacity	0.44 liters
Vibration Level	4.5 m/s²
