Stihl FS 80 User Manual

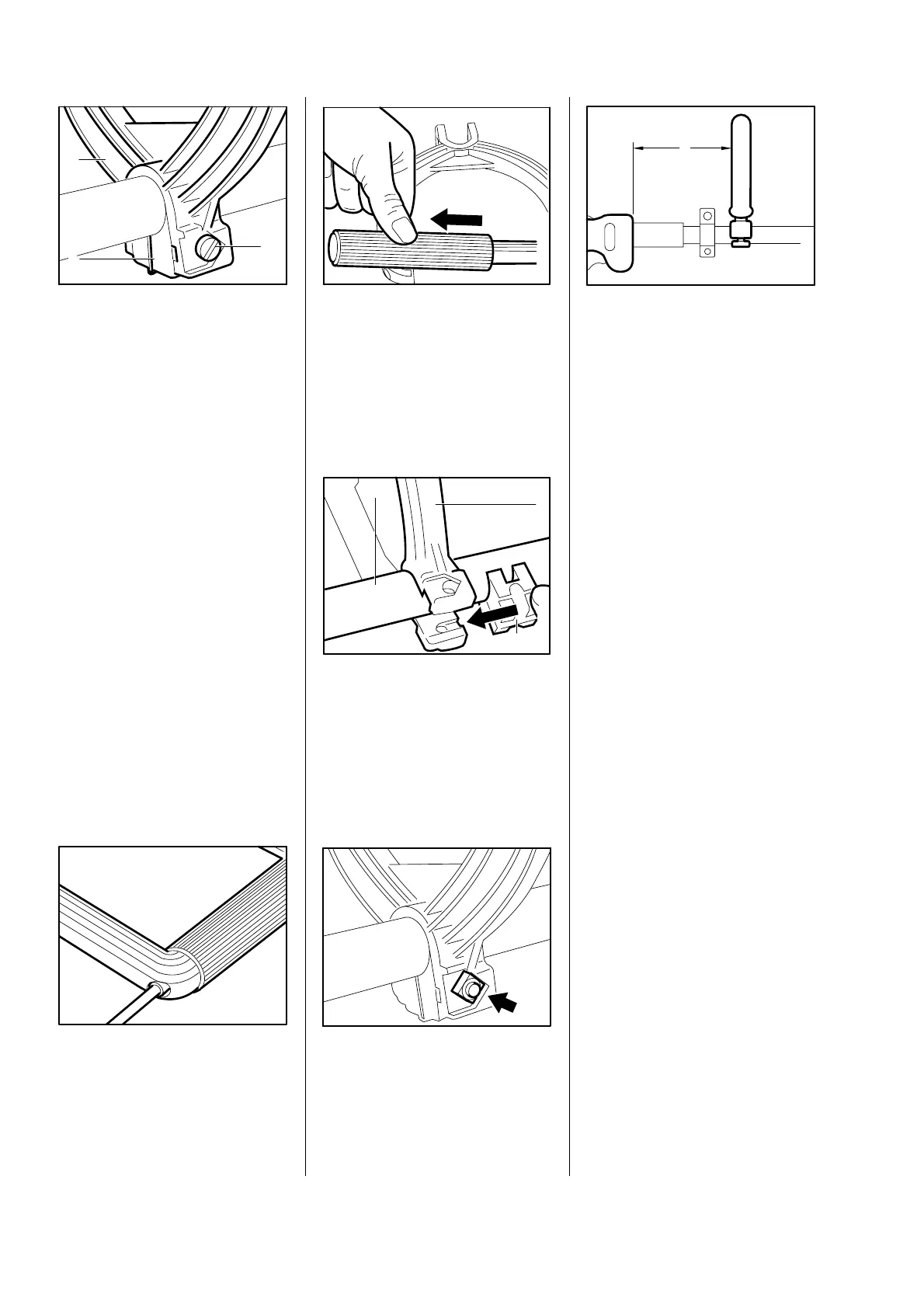

Looped handle with handle hose
•
Remove screw (1).
•
Pull out clamping element (2).
•
Remove looped handle (3) from
protective tube.
•
Remove screw to replace handle
hose.
•
Turn upper part of looped handle
a little to the side and pull off
handle hose.
•
Position looped handle (1) on
protective tube (2).
•
Position clamping element (3) on
protective tube and slide it into
the looped handle.
•
Insert square nut.
- Introduce bolt and tighten slightly.
•
Line looped handle up at a
distance A = 15 cm in front of
control handle and secure it in
position.
392RA148
VA
2
3
1
392RA151
1
2
3
VA
392RA150
VA
392RA153
A
VA
392RA149
VA
392RA152
VA
44

Stihl FS 80 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Cutting Diameter	420 mm
Shaft Type	Straight
Starter	Recoil
Sound Power Level	106 dB(A)
Fuel Capacity	0.44 liters
Vibration Level	4.5 m/s²
