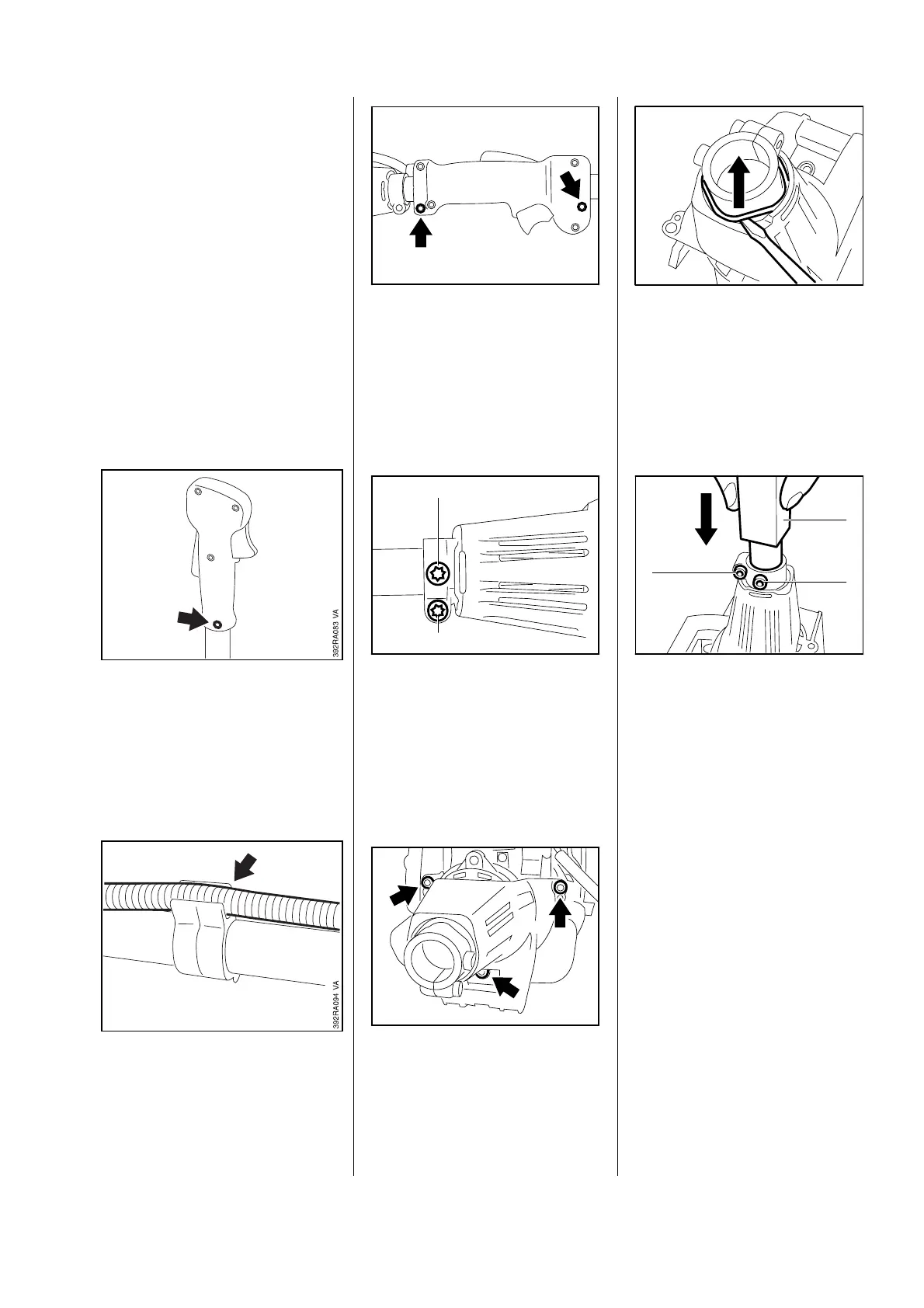

Thevibrationdampingconnection
betweenengineandprotective
tubeiseffectedbyarubberbuffer
(AVsystem)inthefanhousing.
-Removeshroud,see3.1.
•
Removescrewonmachineswith
cowhornhandle.
-Removecontrolhandle.
•
Pullprotectivetubeonthrottleca-
bleoutofcableholder.
•
Releasescrewssecuringthe
clampingcollarsofthecontrol
handleonmachineswithlooped
handle.
•
Removescrew(1)securingthe
AVsleeve.
•
Undoclampingscrew(1).
-Pulloutprotectivetube.
•
Removescrews.
-Removefanhousing.
•
Prisecirclipoutoffanhousing.
-RemovecirclipaboveAVsleeve.
•
Slideassemblytool(1)
41268934900intoAVsleeveas
faraspossible.
•
Tightenclampingscrew(2).
•
Gentlytightenlocatingscrew(3)
ifnecessary.
9. AVsystem
9.1 Repair
392RA131
VA
392RA128
VA
392RA132
1
2
3
VA
392RA130
VA
392RA129
VA
2
1
41

Stihl FS 80 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Cutting Diameter	420 mm
Shaft Type	Straight
Starter	Recoil
Sound Power Level	106 dB(A)
Fuel Capacity	0.44 liters
Vibration Level	4.5 m/s²
