0478-131-3050-A
4
English

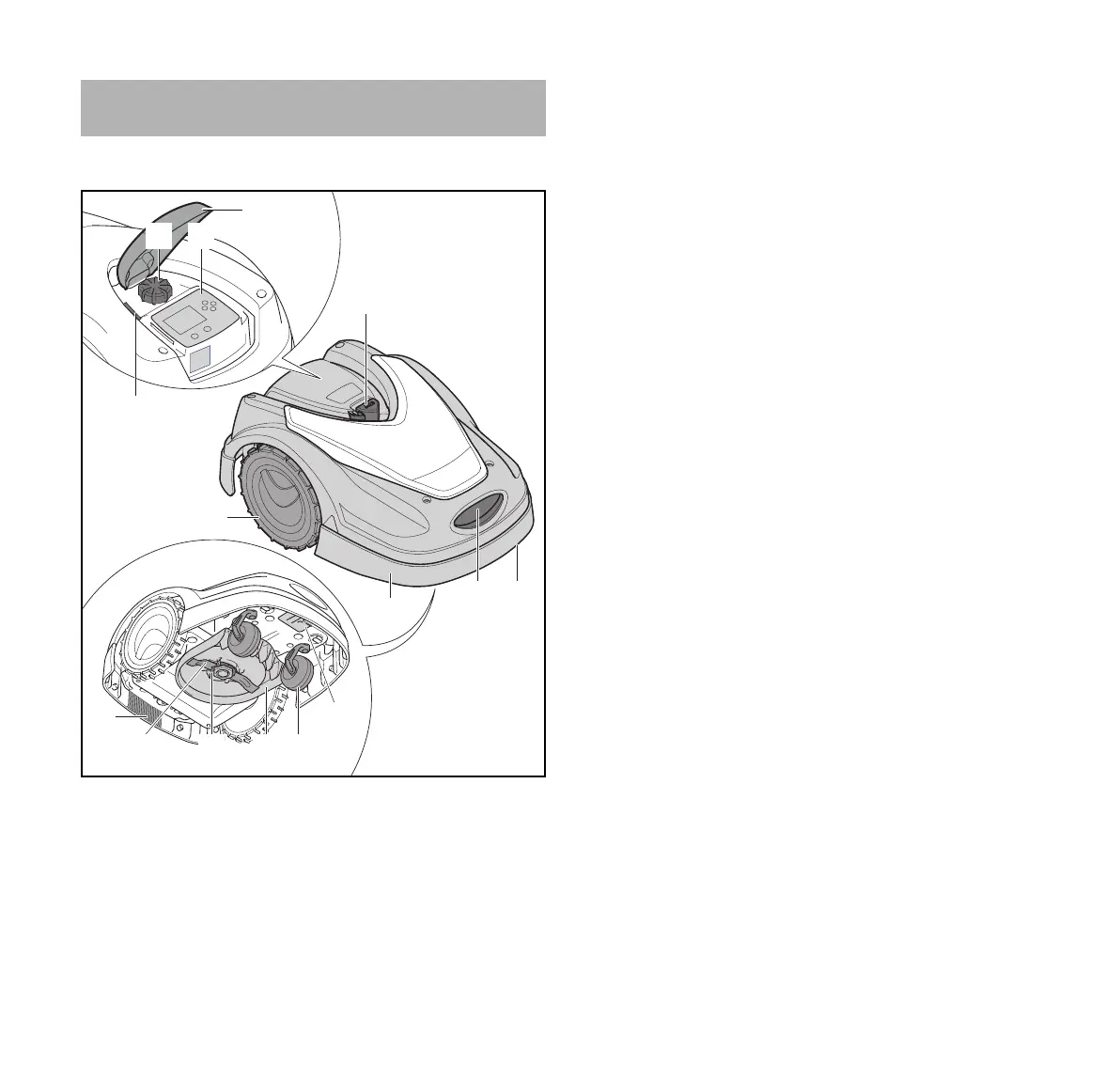

3 Main Parts
3.1 Robotic Mower
1 Cutting Height Adjustment Knob
For adjusting the height of the mowing blade.
2 Control Panel
For navigating the mower's menu options.
3Flap
Covers the control panel and cutting height adjustment
knob.
4 Rain Sensor
Detects rainfall.
5 STOP Button
Stops the robotic mower and the mowing blade.
6 Rear Wheels
The mower's drive wheels.
7Hood
Covers the mower's internal parts.
8 Charging Contacts
Electrical contacts in the robotic mower for connecting to
the docking station for charging.
9 Front Carrying Handle (integrated into the Hood)
For lifting and transporting the robotic mower.
10 Rear Carrying Handle (integrated into the Hood)
For lifting and transporting the robotic mower.
11 Mowing Blade
Metal blade for cutting grass.
12 Carrier Plate
For mounting and securing the mowing blade.
13 Mower Deck
Underside of the mower where mowing and mulching
operations take place.
14 Front Wheels
Guide wheels for the robotic mower.
15 Battery Compartment
Compartment for the integrated lithium ion battery.
Integrated GPS Receiver (not illustrated)
Provides location, speed and navigation information for
the robotic mower.
Cellular Module (not illustrated)
Provides an Internet connection.
# Rating Plate
Contains electrical information and the product's serial
number.
3Main Parts
1 2
141312
11
15
4
#
3
10
5
8
7
6
9
0000-GXX-4374-A2
