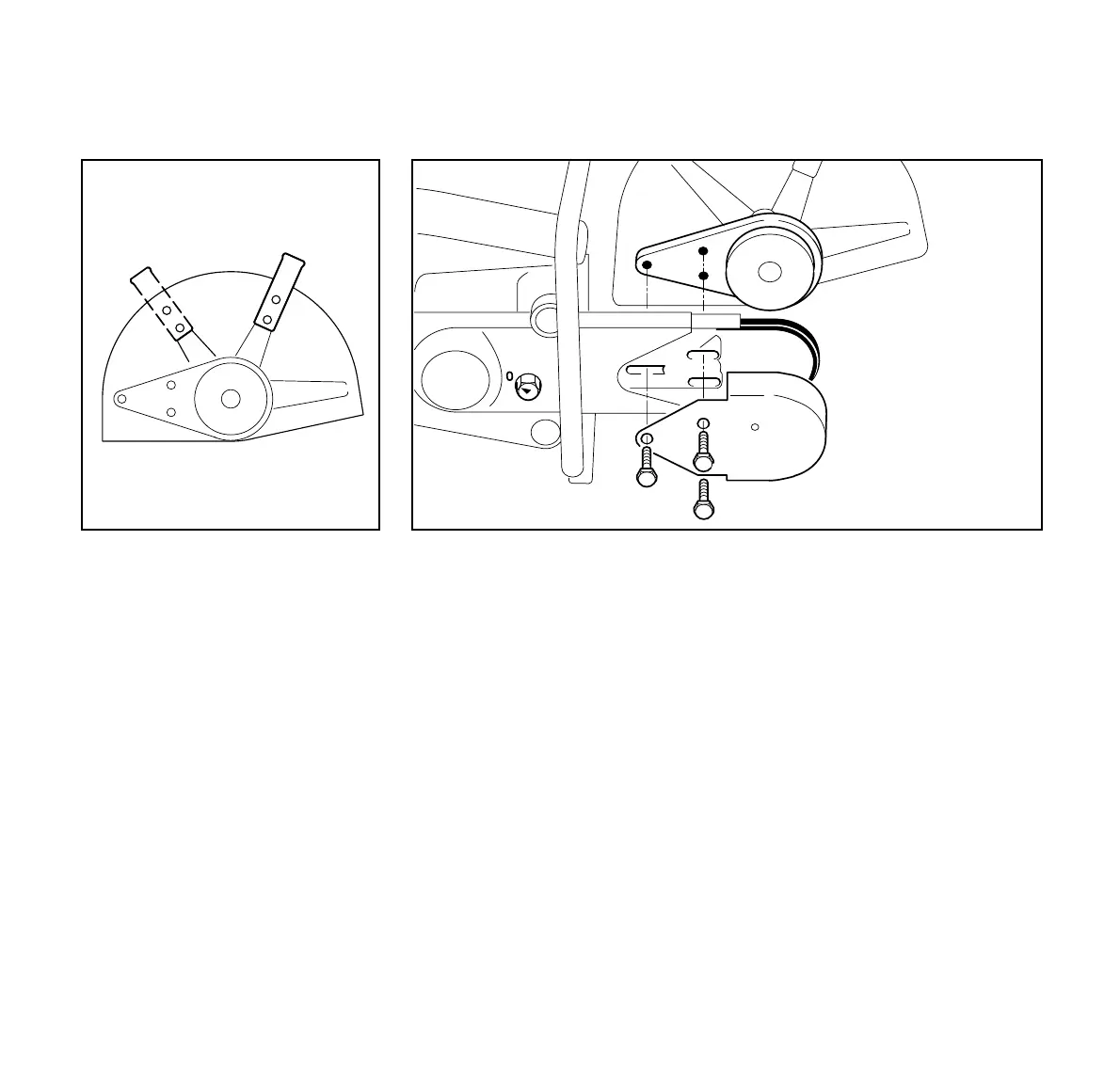

The bearing with guard can be mounted
on the inboard or outboard side of the
cast arm, depending on requirements.
Assembly on the inboard side is
recommended for freehand cutting on
account of the better balance; outboard
mounting is recommended when the
machine is mounted on a STIHL cut-off
machine cart.
For outboard mounting:
: Secure adjustable handle (1) in
position A.
Inboard mounting
: The arrow on the tensioning nut (2)
must point to "0", otherwise:
: Turn the tensioning nut approx.
1/4 turn anticlockwise as far as the
stop = "0" with the combination
wrench.
: Fit the V-belt (3) on the V-belt
pulley (4).
: Line up the threaded bores in the
bearing plate (5) with the slots in the
cast arm (6).
: Fit the V-belt guard (7).
: Screw in the hexagon bolts (8) as
far as the stop, but do not tighten
them yet.
Continue as described in the
chapter "Tensioning the V-belt"
Assembling the bearing and
guard
338BA001
A
1
3
2
4
6
7
8
338BA002
5
