Stihl TS 400 Cutquick - Parts and Controls Identification; Machine Component Identification

44
English / USA
TS 400
1= Rear Handle
2= Air Filter
3= Wingnut of Filter Cover
4= Throttle Trigger Interlock
5= Throttle Trigger
6= Choke Lever
7= Control Lever
8= Spark Plug Terminal
9= Front Handle
10= Wheel Guard
11= Thrust Washer
12= Abrasive Wheel
13= Adjusting Lever of Wheel Guard
14= Muffler
15= Tensioning nut
(V-belt tensioning system)
16= Starter Grip
17= Fuel Filler Cap
18= Decompression valve
19= Water attachment

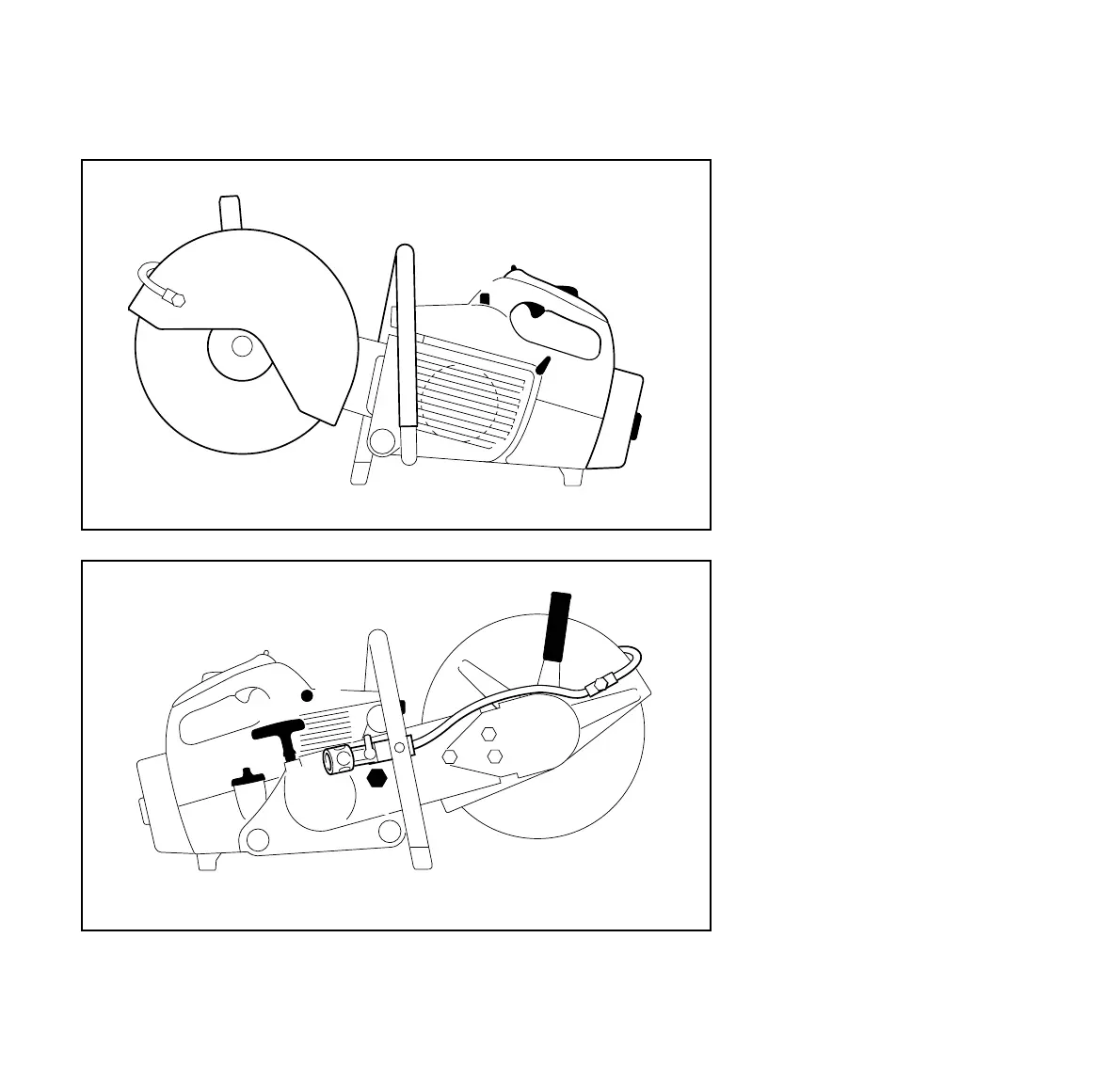

Parts and Control
338BA037
1
3
2
4
5
6
7
8
9
10
11
12
338BA038
13
15
14
17
16
18
19
