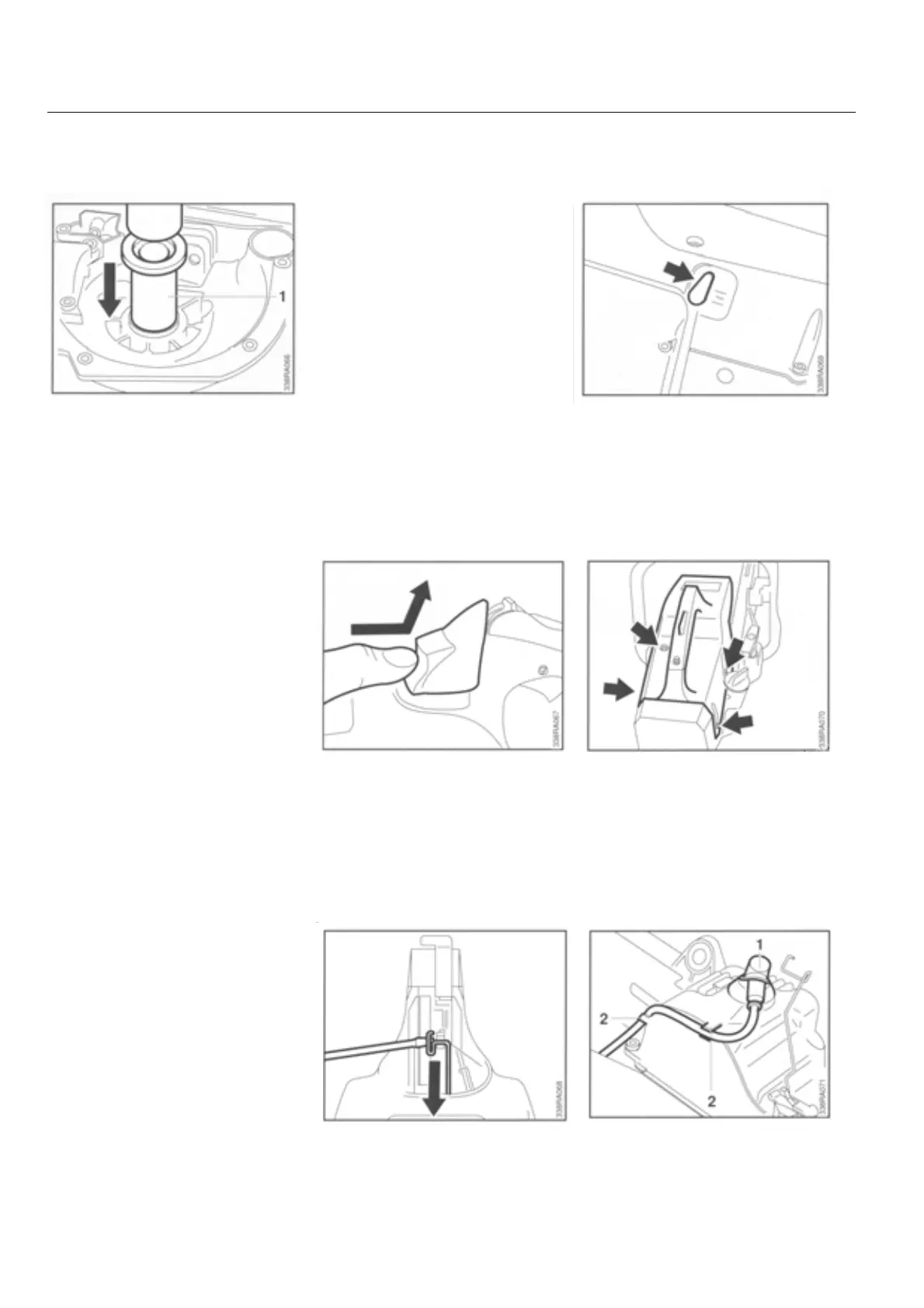

STIHL TS 400 18
5.5 Exposing the cylinde
r
Check and repair the fuel supply,
carburetor, air filter and ignition
system before locating faults in the
engine.
Refer to the manual "Trouble-
shooting, standard repairs" for
troubleshooting procedures.
- Remove muffler, see chapter 5.1.
• Depress throttle trigger slightly
and draw throttle rod out of
trigger.
• Remove spark plug terminal (1)
from spark plug.
• Remove ignition lead and stop
switch lead from mount (2).
• Set choke lever to upward
position.
- Slide the rotary shaft seal over the
crankshaft stub with the open side
facing the crankcase.
• Press it into place with press
sleeve (1).
- Install flywheel, see chapter 6.5.
• Press cap in at bottom, slide
upwards and remove.
• Unscrew shroud screws.
Note: One of the screws is not
shown in the picture.
- Remove shroud.

Stihl TS 400 Specifications

General

Arbor Size	20 mm
Power Output	3.2 kW
Engine Type	2-stroke
Sound Pressure Level	98 dB(A)
Sound Power Level	109 dB(A)
Maximum Wheel Size	350 mm
Wheel Size	14 in.
Maximum Cutting Depth	125 mm
Cutting Depth	125 mm
Blade Diameter	14 in.
Warranty	2 years
Engine Power	3.2 kW
