3. CUTTING WHEEL DRIVE

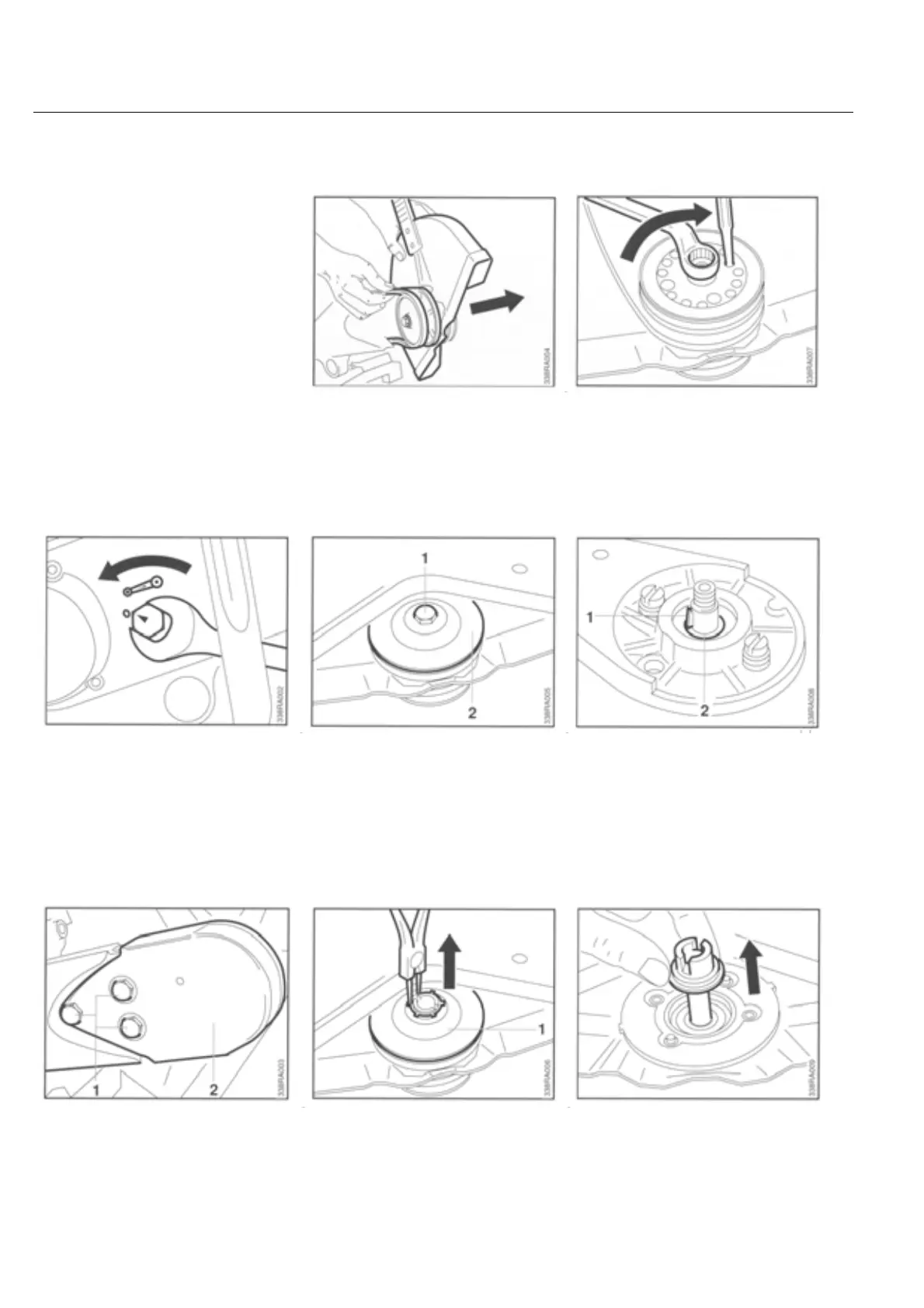

3.1 Bearing with guard
Check axial and radial runout, see
chapter 3.2.
• Relax V-belt; turn hexagon on clamp
counterclockwise until the arrow
points to the left (to "0").
• Unscrew the screw (1) in the
thrust washer (2).
- Remove thrust washer.
• Remove woodruff key (1) from
groove in shaft.
• Remove washer (2) from shaft.
• Unscrew bearing screws (1).
• Remove guard (2).
• Remove axial clamping ring from
shaft.
• Remove thrust washer (1).
• Draw shaft out of deep groove ball
bearings.
• Lever bearing with guard out of
V-belt.
• Lock V-belt pulley in position.
• Unscrew nut and draw V-belt
pulley off shaft.
Important! Nut has left-hand
thread.

Stihl TS 400 Specifications

General

Arbor Size	20 mm
Power Output	3.2 kW
Engine Type	2-stroke
Sound Pressure Level	98 dB(A)
Sound Power Level	109 dB(A)
Maximum Wheel Size	350 mm
Wheel Size	14 in.
Maximum Cutting Depth	125 mm
Cutting Depth	125 mm
Blade Diameter	14 in.
Warranty	2 years
Engine Power	3.2 kW
