Stihl TS 400 - Manifold; Tank Housing

STIHL TS 400 47

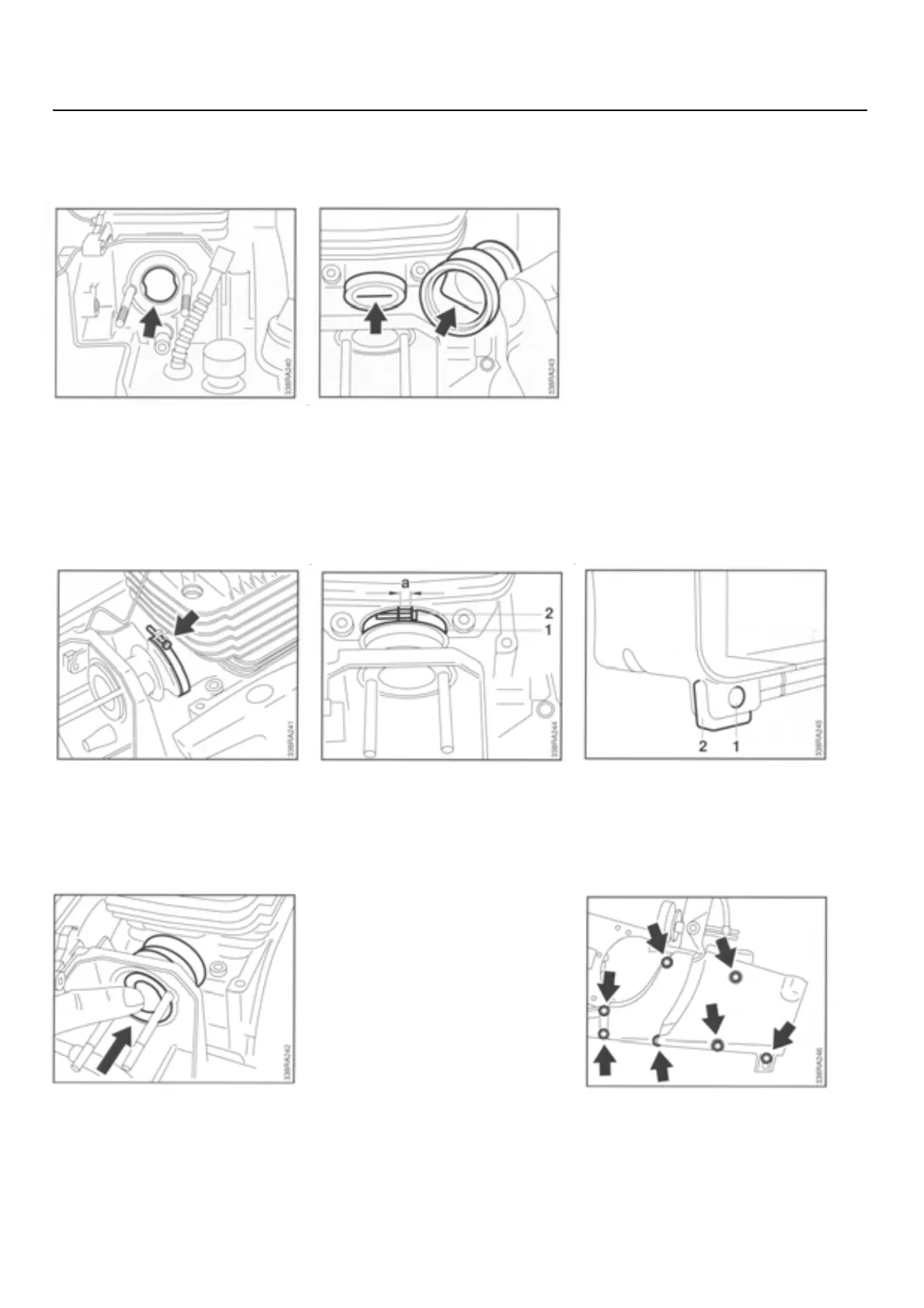

10.8 Manifold
10.9 Tank housing
The (small) left-hand half of the
housing can be replaced
separately if damaged.
The complete tank housing must be
replaced if the (large) righthand half
of the housing is damaged.
- Remove crankcase, see 5.9.1.
- Drain tank.
Note: Fuel must be disposed of
correctly.
- Remove carburetor, see 10.2.2.
- Remove air guide cover,
see 10.7.
• Remove sleeve from manifold.
• Unscrew the screws in the left
half of the housing.
• Press flange of manifold out of the
opening in the tank housing.
- Remove manifold from intake
port.
• Position manifold on the intake
port so that the straight edges of
the manifold and intake port are
lined
• Remove hose clip for manifold.
• Fit hose clip (1) so that tensioning
screw (2) is at the top.
• Tighten tensioning screw so that a
gap of a = 6 ± 0.5 mm remains
between the tabs.
The parts are reassembled in
reverse order.
• Draw out pin (1).
• Draw rubber buffer (2) out of
mount.
