Stihl TS 400 - Page 42

STIHL TS 400 42

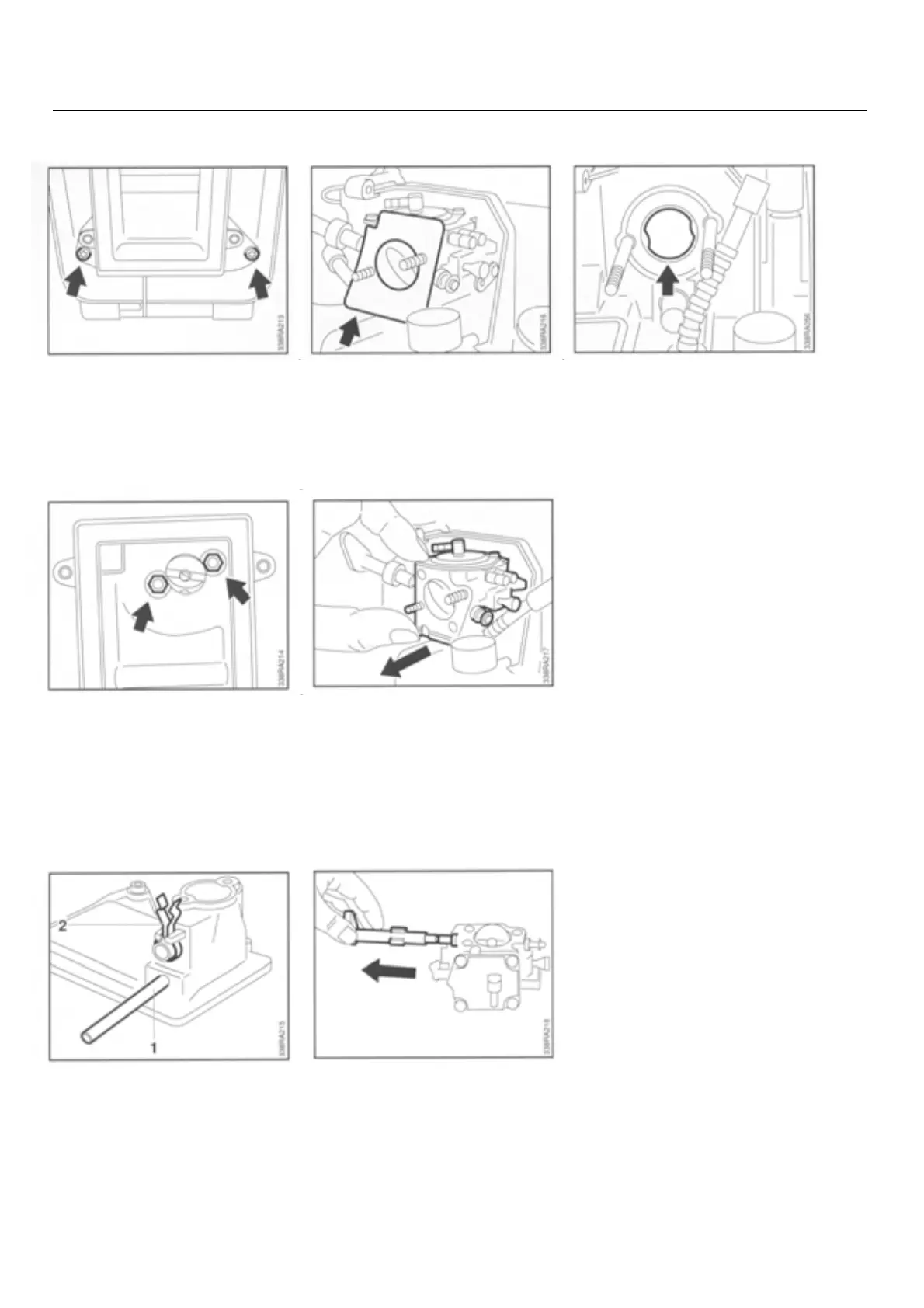

Note: Before fitting the carburetor,
ensure that the sleeve is present in
the manifold.
• Pull off compensation hose (1).
• Compress and remove leaf
spring (2).
• Draw choke lever off choke shaft.
The parts are reassembled in
reverse order.
• Unscrew nuts.
- Remove air filter housing.
• Draw carburetor off stud bolts.
Note: Refer to the "Carburetor"
manual for information on
repairing the carburetor.
• Remove gasket.• Unscrew the screws in the filter
base.
