4 Operation
Lifting
7325_003-036
A
C
D
B
1
7312_003-114
7312_003-022_V2
DC
B
A
Controlling the lifting syste
musinga
triple mini-lever
DANGER
Reaching into or climbing between moving parts
of the truck (e.g. lift mast, sideshifts, working
equipment, load carrying devices etc.) can lead to
serious injury or death and is therefore prohibited.
– Observe the safety regulations for handling
loads.
– Operate the lifting system from the driver's seat
only.

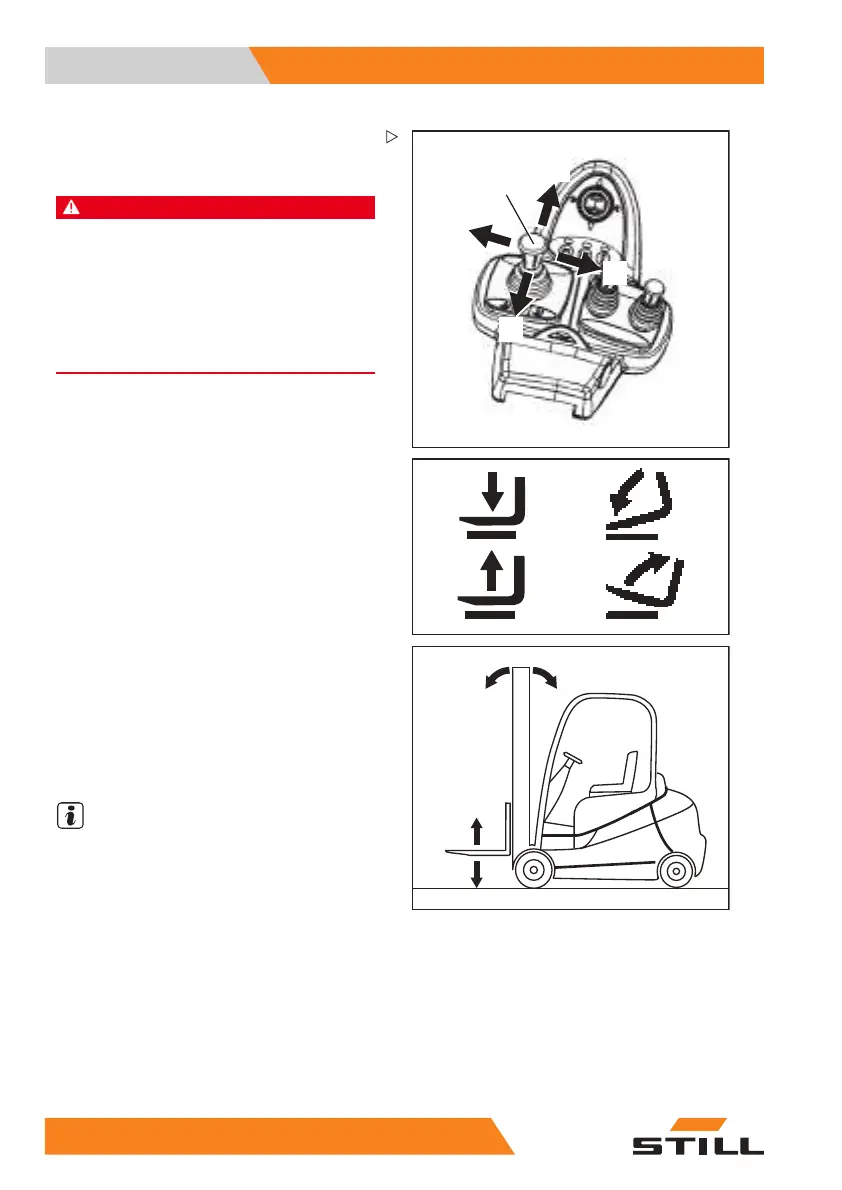

Lifting/lowering the fork carriage
To lift the fork carriage:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (B)
To lower the fork carriage:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (A)
Tilting the lift mast
Totilttheliftmastforwards:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (C)
To tilt the lift mast backwards:
– Move the "lift mast" 360° lever (1) in the
direction of arrow (D)
NOTE
The symbols o
n the 360° lever show the
direction of
movement of the lift mast and the
fork carr
iage when the 360° lever is moved.
