Maintenance 5
Providing access to maintenance po
ints
7311_003-013
1

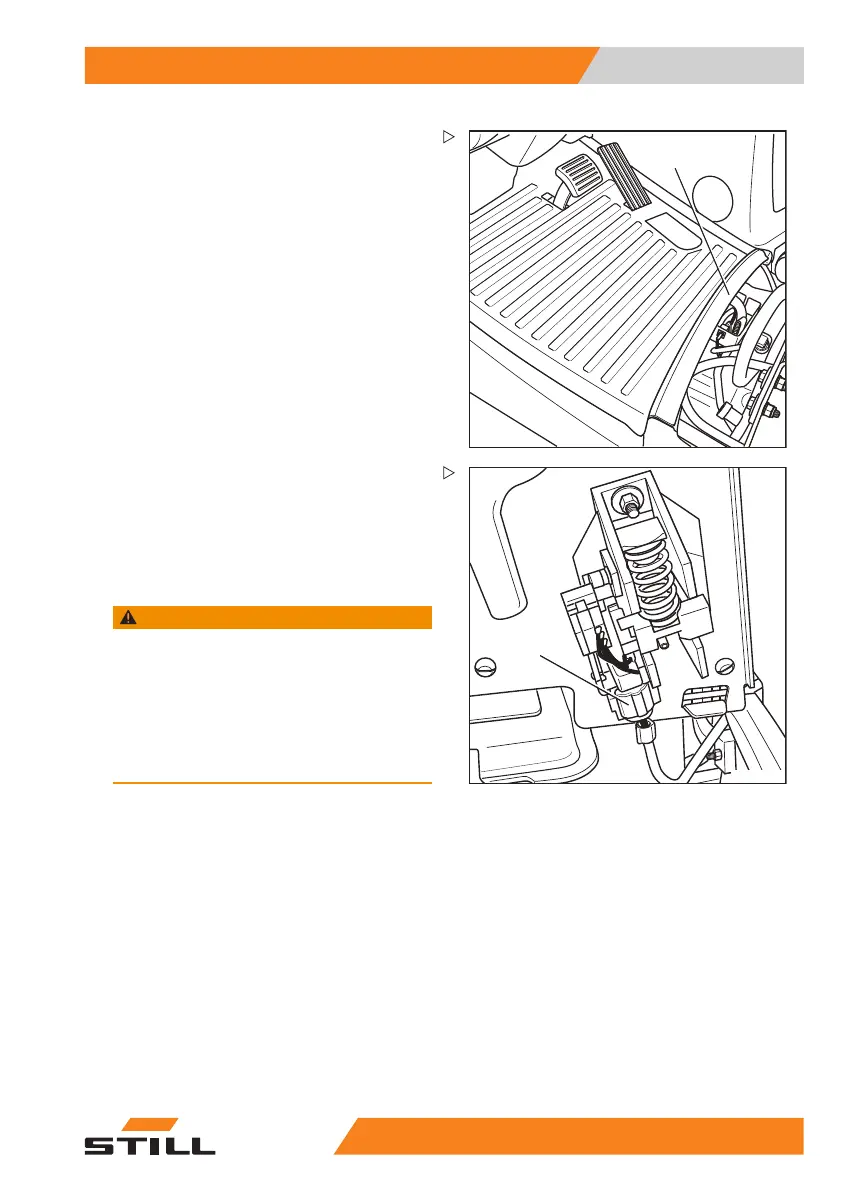

– Lift the back of the floor plate (1).
7311_003-014
2
– Disconnect the plu
g connection from the
accelerator pedal
(2).
– Remove the floor plate and place it in a
secure location.
Installing the bottom plate
WARNING
Risk of crushing between the bottom plate and the
frame edge!
If limbs or objects are between the bottom plate and
frame edge when the bottom plate is closed, they
can be crushed.
– Make sure that, when you close the bottom plate,
there is nothing between the bottom plate and
the frame edge.
– Position the bottom plate at the front.
– Connect the connection assembly to the
accelerator pedal.
– Carefully guide the bottom plate down and
close.
– Insert the rubber mat.
