S800A GNSS Receiver – User Manual 6

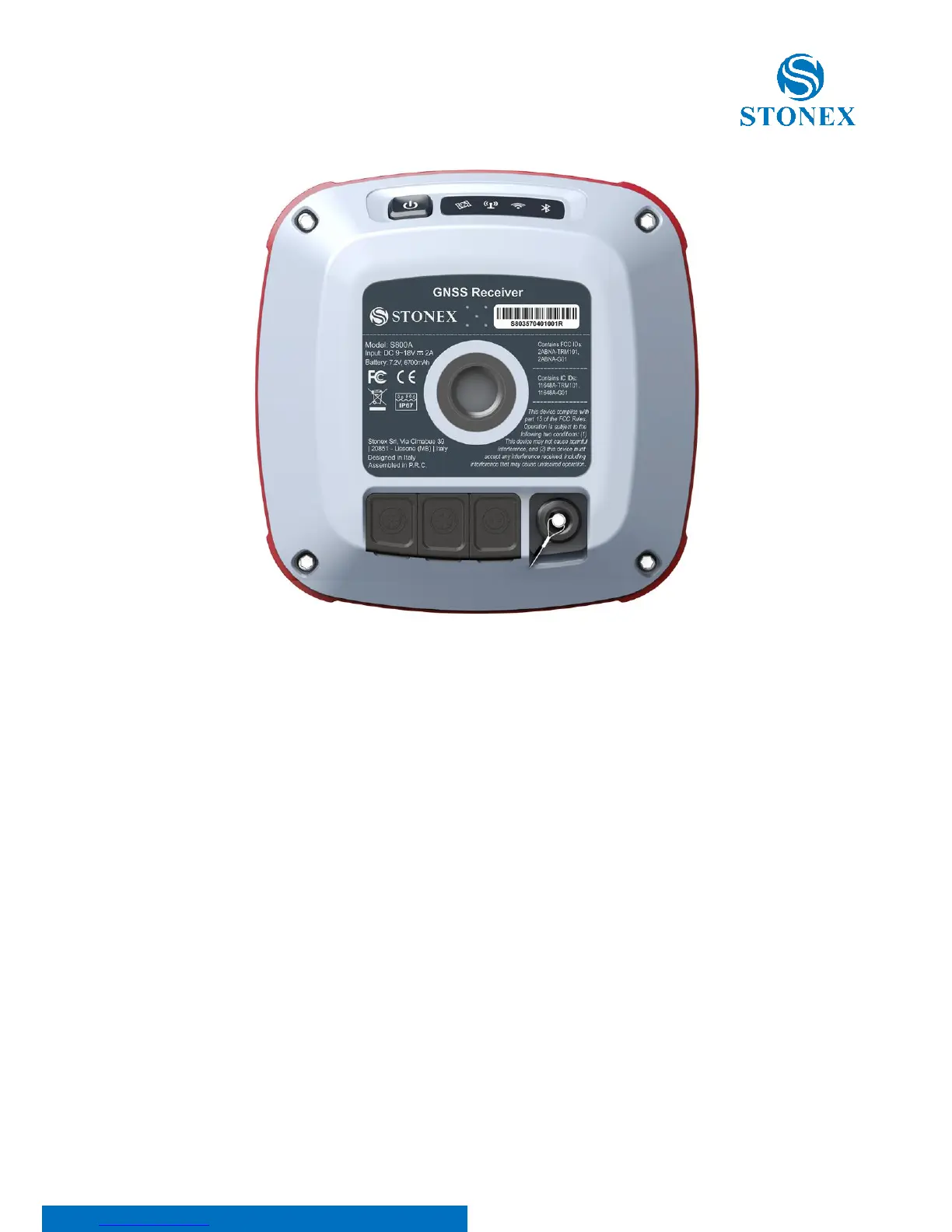

Figure 2-2 Receiver bottom
TNC interface: connect internal radio antenna.
 2-pin LEMO port: charge for internal battery, connect adaptor.
 5-pin LEMO port: connect external power supply and external radio
 7-pin LEMO port: connect PC or handheld, USB+serial port
2.1.3 Control Panel
Control Panel is illustrated in Figure 2-3.
