Stonex S850
+
GNSS Receiver – User Manual 35
4.1 IMU with Stonex Cube-a
4.1.1 Sensor Activation and Configuration
Before using the receiver to collect points with the slanted pole, check if the pole tilt correction functionality

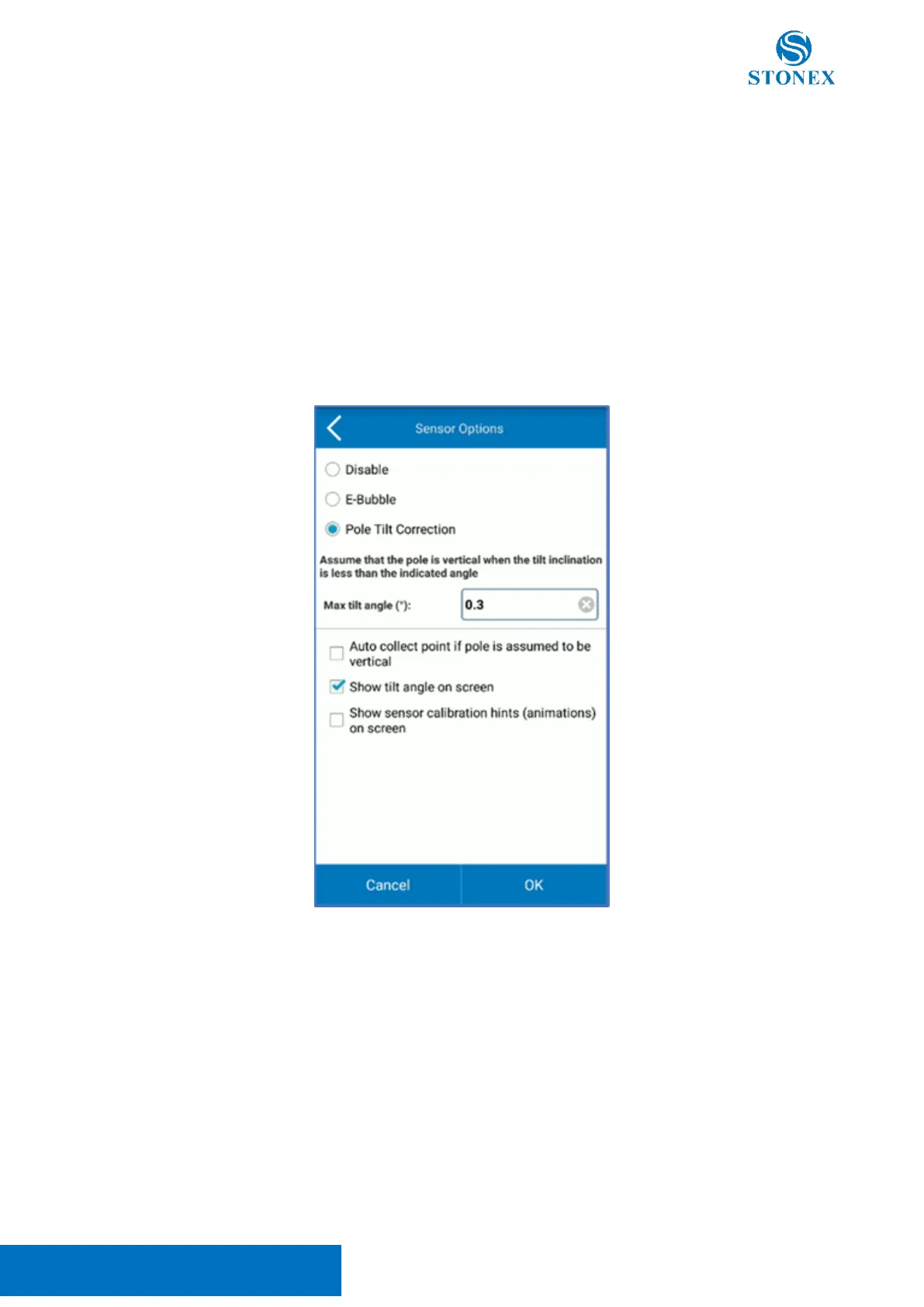

has been enabled. The settings to enable the Pole Tilt Correction using Stonex Cube-a, are in the Configure →
System Settings → Sensor Options page.
On the same screen, it is possible to set the software to show on screen the tilt angle (in decimal degrees, 0° =
true vertical).
There is also the possibility of automatically starting the point collection when the pole is considered vertical
with respect to the set limit.
