configuration) a high-gain UHF all-directional transmitting antenna for base setup. The
available ranges are: 410-430 MHz, 430-450 MHz and 450-470 MHz. The antenna is around 1
meter long and can be mounted on a retractable pole or a tripod for better performance. The
higher the antenna is, the larger cover area does it has for the radio signal. The gain of the
antenna is 5 dBi.

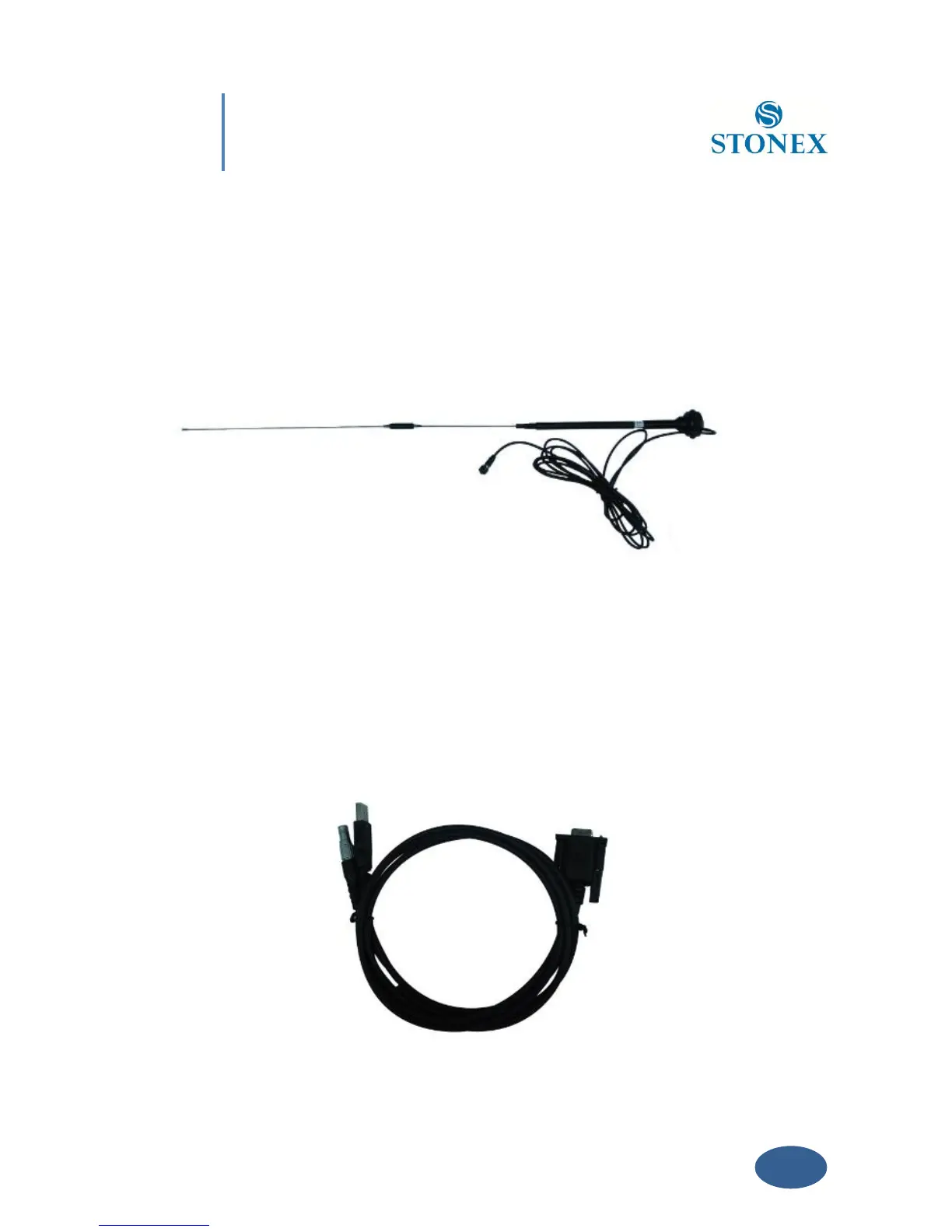

Fig. 3.9 āExternal radio antenna (not in scale)
III.4 Cables
Receiver standard cable
This is a multi-function communication cable: it is used for connecting receiver (by a 7-pins
LEMO port) and computer (by a serial and USB port) used for transferring the static data,
setting the receiver, updating the firmware and the license.
