Fig. 3.10 - Multi-function communication cable
Auxiliary cable

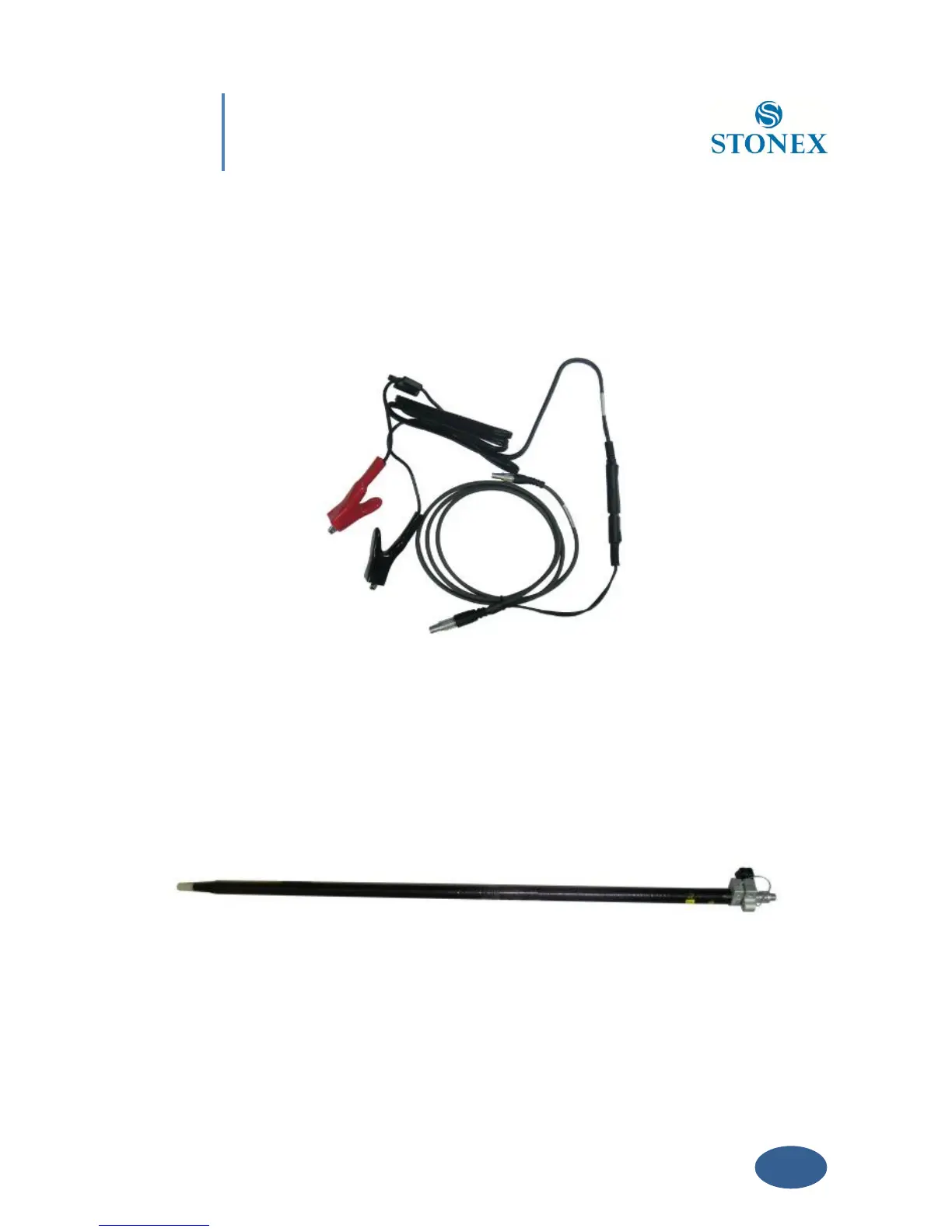

External power supply cables can be ordered and used to connect an external battery (red and
black clips) to the receiver (small 5-pin LEMO)：
Fig. 3.11 - External power supply cables
III.5 Other accessories
The other accessories are: 2.45 m retractable pole, 40 cm supporting pole, two kind of brackets
depending on the controller, tribrach with plummet, tripod (wood or aluminum, with quick or
twist clamps), connector between receiver and tribrach, and measuring tape.
Fig. 3.12 – 2.45m retractable pole
