Chapter IV: S9III Configuration
IV.1 The installation of base and rover
BASE ROVER
TX / RX ANTENNA TX / RX ANTENNA

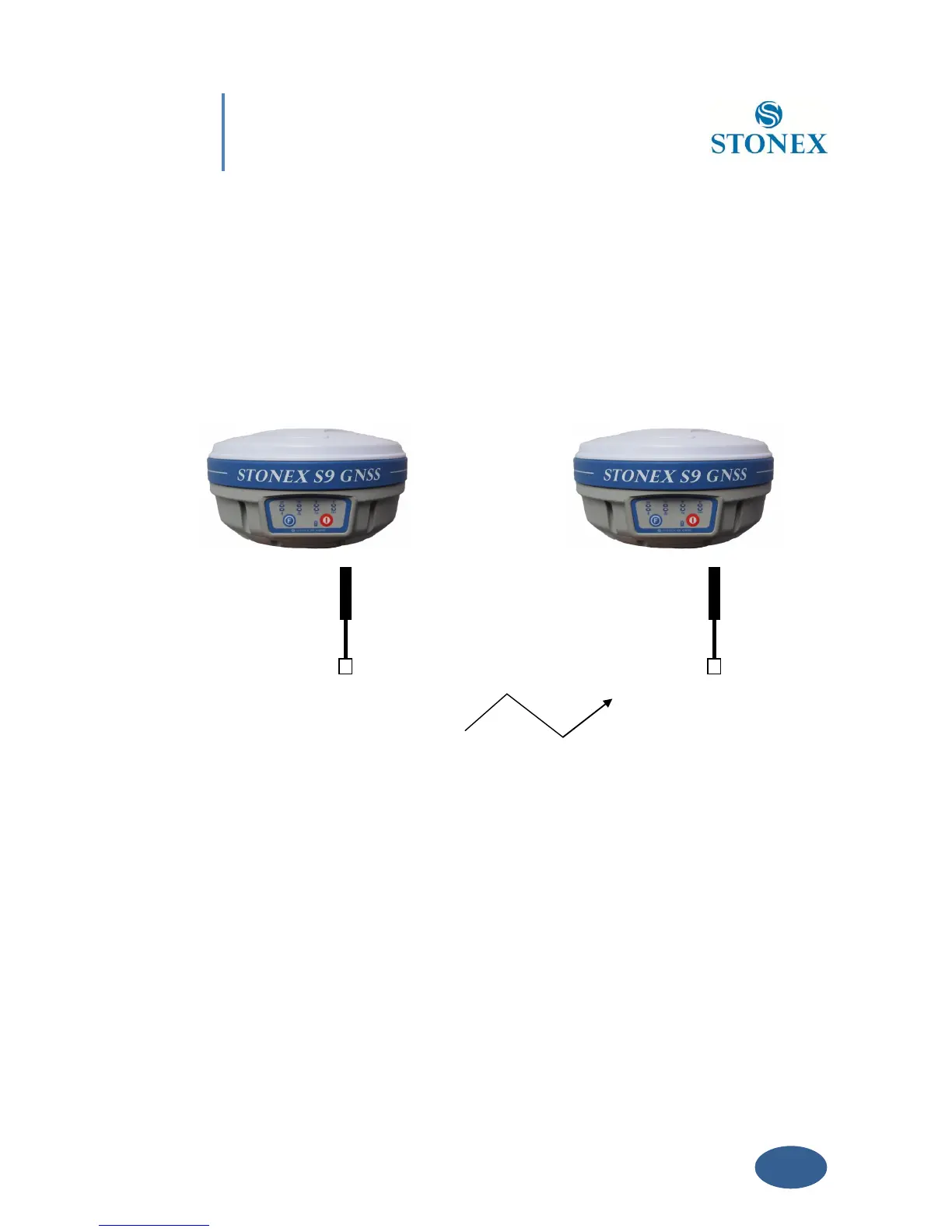

Fig. 4.1 - Base and rover configuration
Installation of Base
- Install the tripod on the chosen location, level it and attach the receiver into tribrach.
- Attach the transmitting radio antenna into the port “UHF”: using the 40cm supporting
pole is better, since increases the height of the antenna. If you are using a direct GSM
connection you should attach the gsm antenna into “GPRS” port.
- Switch on the receiver and check the working mode. If it is not correct, please see next
paragraph IV.2 for understanding how to select the correct working mode or you can
