1.4.2. Analog Input

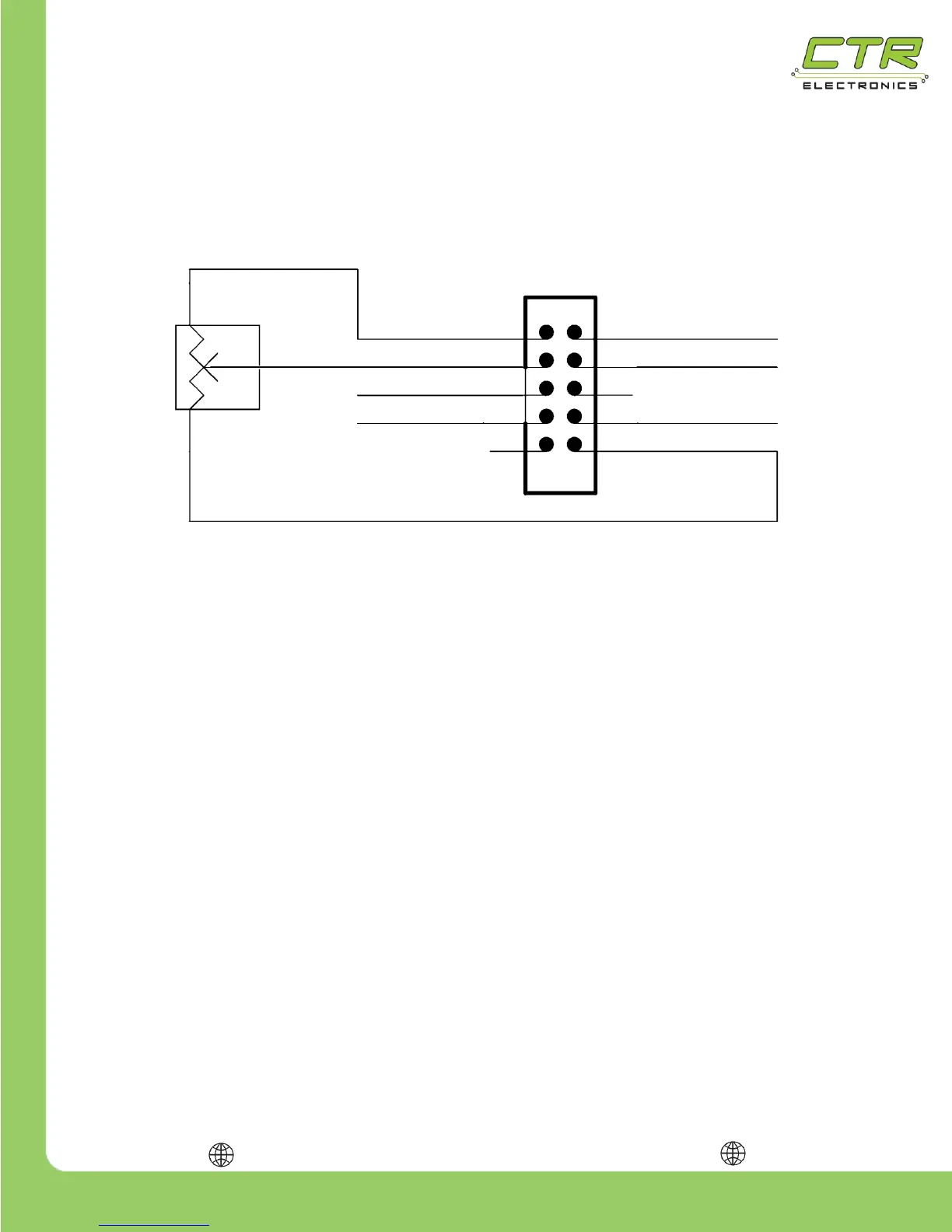

Attach the analog sensor as shown. Do not connect the GND line elsewhere. Only use 3.3V as the
analog sensor voltage source. Although the figure explicitly shows a potentiometer, a 3.3V Analog
Encoder can also be wired similarly.
+3.3V 1
Analog Input 3
Quadrature B 5
2 +5V
10 GND
Quadrature A 7
X
Quadrature Index 9
4 Forward Limit
6 DO NOT CONNECT
Analog Sensor Input
X
8 Reverse Limit
Analog
Sensor
