1.4.8. Heat Shrink Use with Breakout
Another advantage to using the Quadrature or Analog Encoder Breakout is that they are designed to
be encapsulated with large diameter heat shrink. This ensures that there is no risk of shorting the
breakout to robot frame (or other conductive surfaces). This method works particularly well when

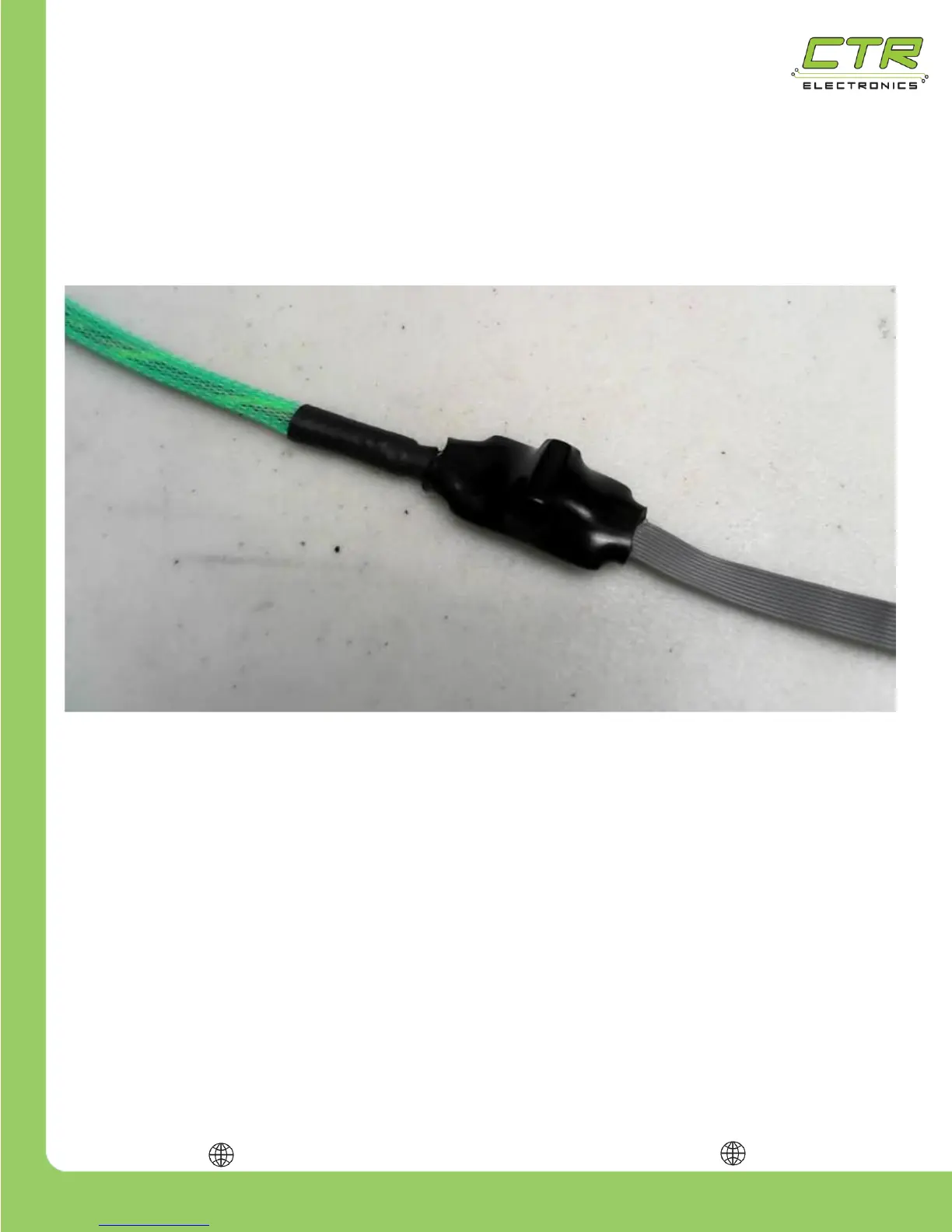

using a wire loom (green loom in example below).
