1.4.4. Forward & Reverse Limit Switch Inputs

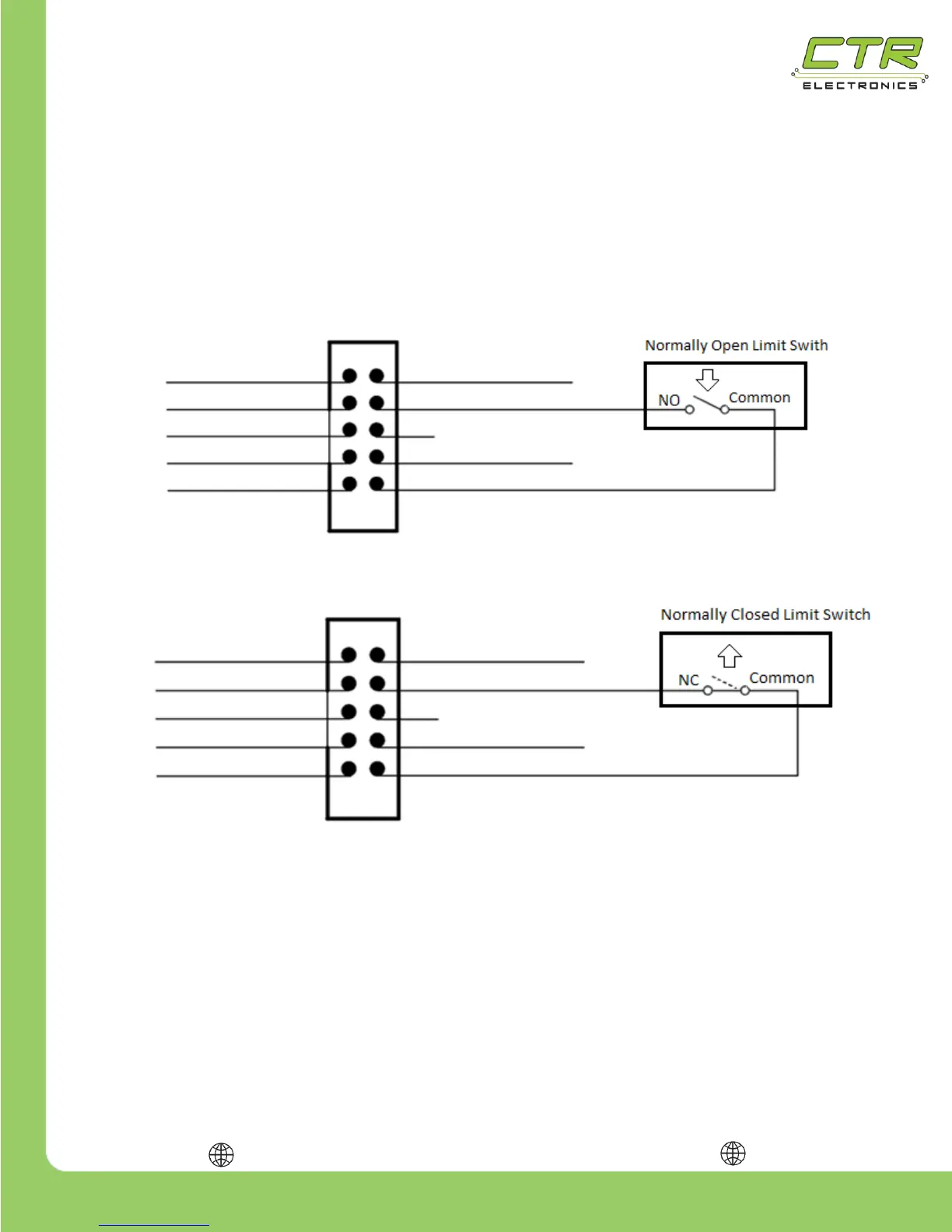

Attach the Forward/Reverse Limit Switch as shown. Do not connect the GND elsewhere. The Talon
SRX provides a pull-up to 2.5v, so typically an external pull-up is not needed. Only use Talon SRX
3.3V or 5.0V power if an external pull-up is used. The default setting of “Normally Open” ensures an
“out of the box” Talon SRX functions even if no limit switch is connected. See the Software
Reference Manual to change the default Limit Switch behavior from “Normally Open”.
+3.3V 1
Analog Input 3
Quadrature B 5
Quadrature A 7
2 +5V
4 Forward Limit
6 DO NOT CONNECT
X
8 Reverse Limit
10 GND
Quadrature Index 9
Forward Limit Switch - Normally Open (default)
Forward Limit Switch - Normally Closed
+3.3V 1
Analog Input 3
Quadrature B 5
Quadrature A 7
2 +5V
4 Forward Limit
6 DO NOT CONNECT
X
8 Reverse Limit
10 GND
Quadrature Index 9
