1.4.5. Connecting to the Data Port

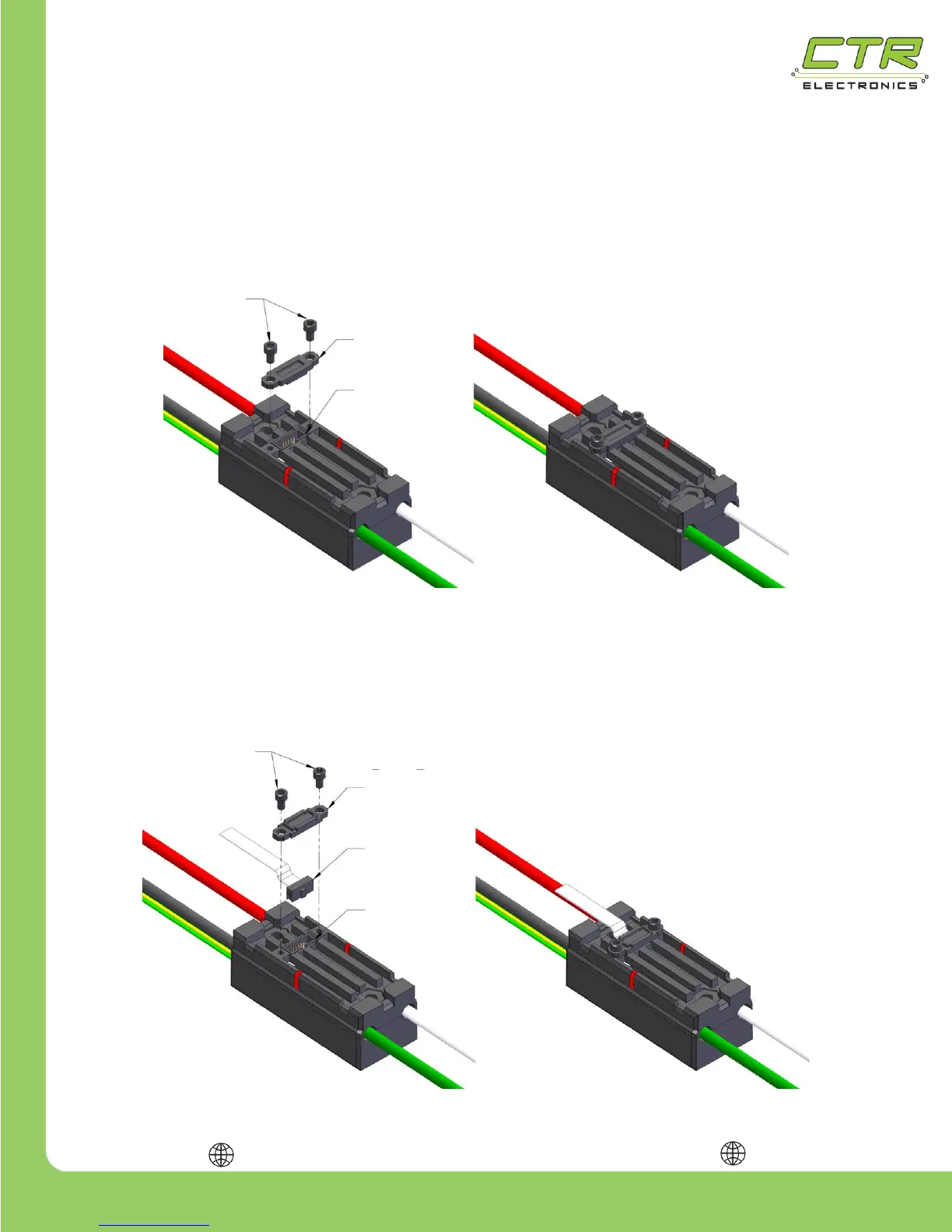

To maintain a sealed case, the Talon SRX includes a plastic cover for the Data Port. When the port is
not being used, the plastic cover should be installed on the case, as shown below, to protect the pins
from foreign objects. When installing the cover, be sure to note its orientation.
To use the Data Port, a 2x5 0.05 inch pitch connector should be wired as detailed in the previous
sections and plugged in as shown below. After the connector is plugged it, the plastic cover may be
used to retain the connector, as shown below – be sure to note the plastic cover’s orientation.
(2X) #4-40 x 3/16in
Socket Cap Screws
Data Port
Cover
Data Port
Data Cable
Data Port
Cover
Data Port
(2X) #4-40 x 3/16in
Socket Cap Screws
